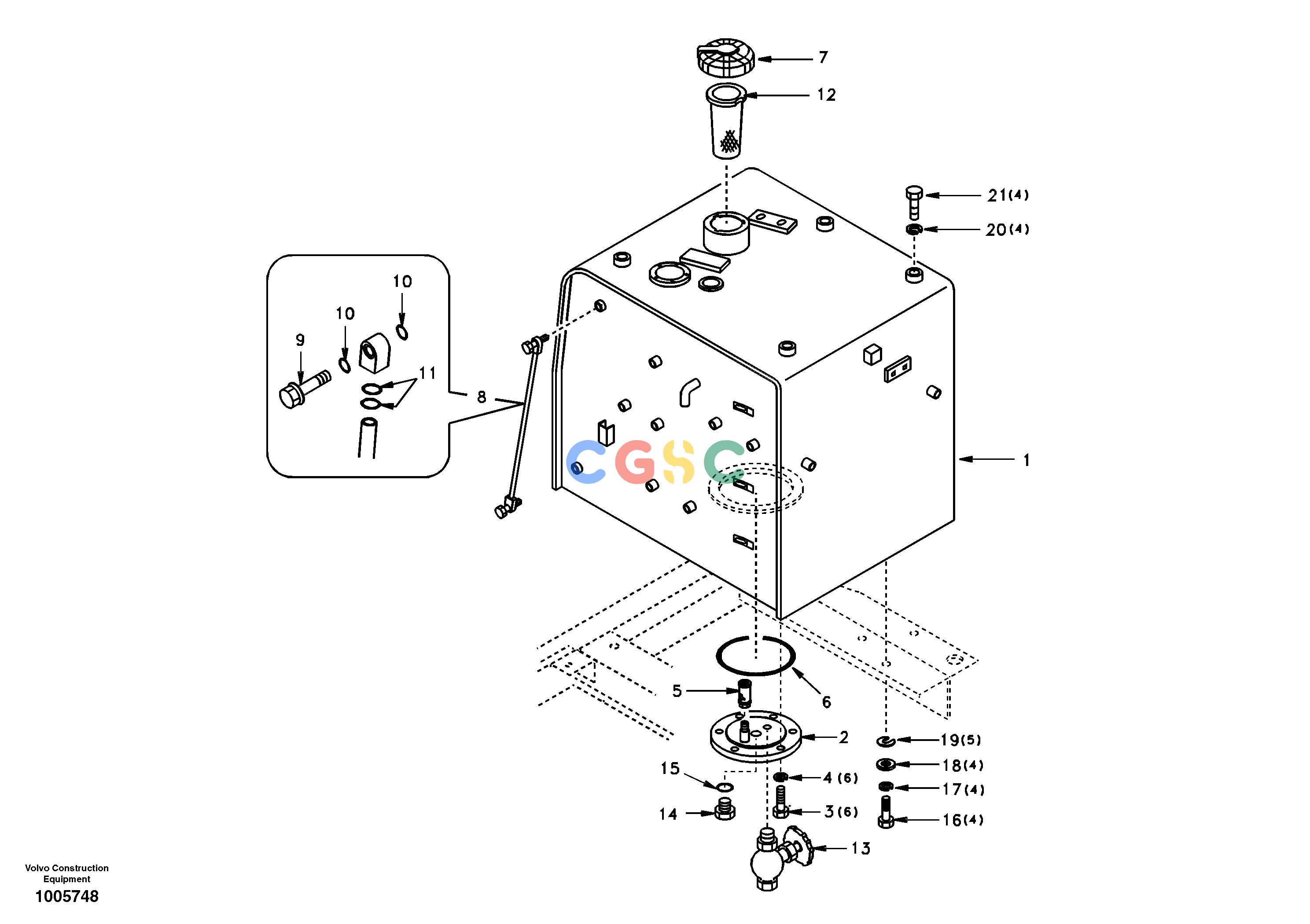

沃尔沃零件查询EC240 Fuel tank with fitting partsNoneDE00A001-DE08E001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1116-00580
|
[1] |
Fuel tank
|
SER NO 3001-3758
|
| |
VOE14512148
|
[1] |
Fuel tank
|
SER NO 3759-
|
| 2. |
SA1116-00081
|
[1] |
Cover
|
SER NO 3001-3168
|
| |
VOE14500530
|
[1] |
Cover
|
SER NO 3169-3758
|
| |
VOE14512162
|
[1] |
Cover
|
SER NO 3759-
|
| 3. |
SA9011-11005
|
[4] |
Bolt
|
SER NO 3001-3168
|
| |
SA9011-11005
|
[6] |
Bolt
|
SER NO 3169-
|
| 4. |
SA9213-10000
|
[4] |
Spring washer
|
SER NO 3001-3168
|
| |
SA9213-10000
|
[6] |
Spring washer
|
SER NO 3169-
|
| 5. |
SA1016-00830
|
[1] |
Strainer
|
|
| 6. |
VOE960259
|
[1] |
O-ring
|
|
| 7. |
SA1116-00240
|
|
Cap
|
DOMESTIC
|
| |
VOE14529401
|
|
Fuel filler cap
|
EXPORT
|
| 8. |
VOE1116-00450
|
[1] |
Lvl Ind Pipe
|
SER NO 3001-3791
|
| |
SA1116-00450
|
[1] |
Lvl Ind Pipe
|
SER NO 3792-
|
| 9. |
VOE14517557
|
[2] |
Bolt
|
SER NO 3792-
|
| 10. |
VOE983497
|
[4] |
O-ring
|
SER NO 3792-
|
| 11. |
VOE990557
|
[4] |
O-ring
|
SER NO 3792-
|
| 12. |
VOE14537348
|
[1] |
Strainer
|
|
| 13. |
SA8240-03800
|
[1] |
Shut-off Cock
|
|
| 14. |
SA1010-60030
|
[1] |
Plug
|
SER NO 3001-3758
|
| 15. |
VOE983526
|
[1] |
O-ring
|
SER NO 3001-3758
|
| 16. |
VOE991647
|
[4] |
Hexagon screw
|
|
| 17. |
VOE60110287
|
[4] |
Washer
|
|
| 18. |
SA9213-20000
|
[4] |
Spring washer
|
|
| 19. |
SA9742-50020
|
[5] |
Shim
|
|
| 20. |
SA9213-12000
|
[4] |
Spring washer
|
SER NO 3001-3197
|
| 21. |
SA9011-12004
|
[4] |
Bolt
|
SER NO 3001-3197
|
