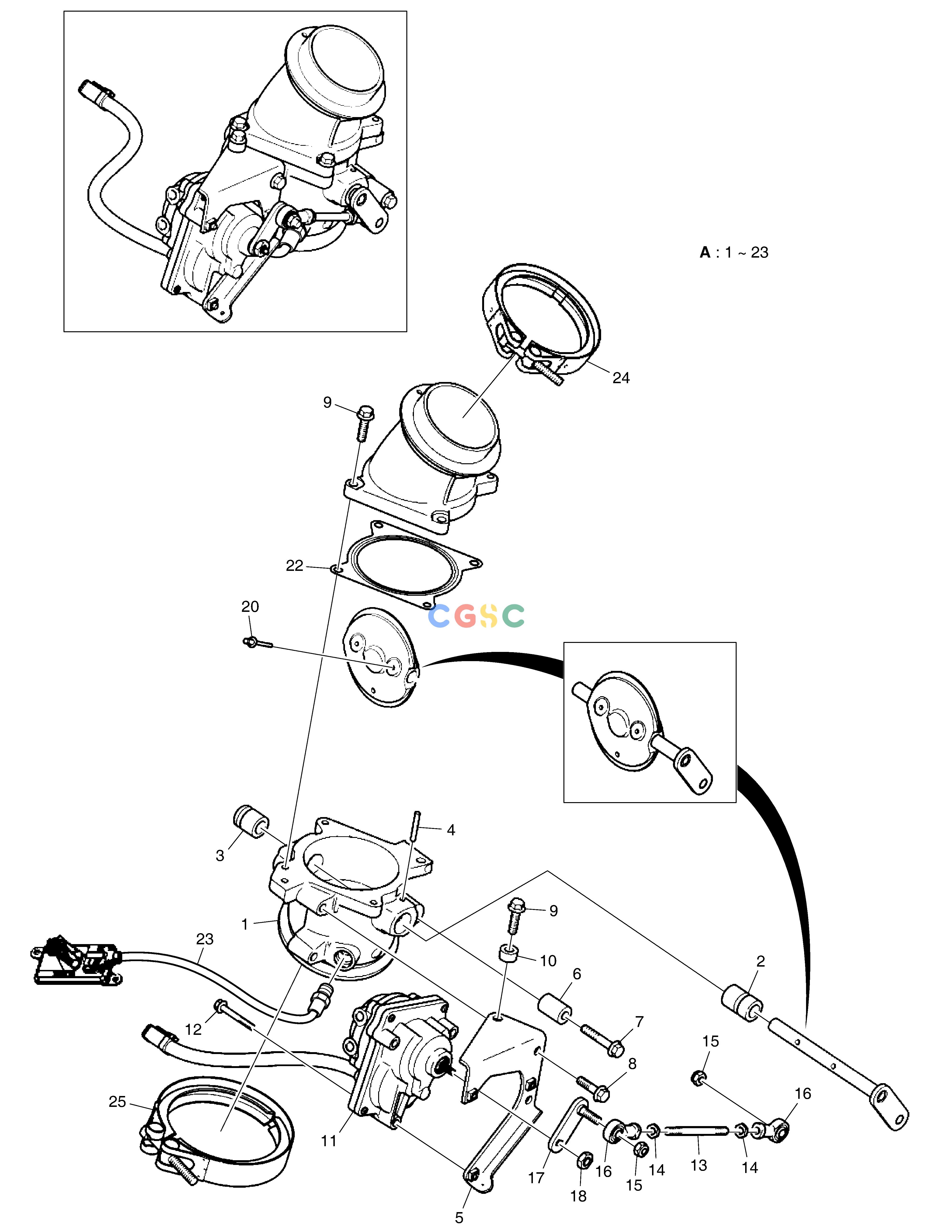

斗山零件查询EXHAUST BRAKE SYSTEM DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
731 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
NA00528
|
[1] |
CARTER
|
|
| 10. |
110951-00685
|
[1] |
ENTRETOISE
|
|
| 11. |
300701-00093
|
[1] |
|
|
| 12. |
120106-00662
|
[3] |
|
|
| 13. |
130712-01559
|
[1] |
|
|
| 14. |
120312-00390
|
[2] |
ECROU
|
|
| 15. |
120311-00197
|
[2] |
ECROU
|
|
| 16. |
101539-00309
|
[2] |
ARTICULATION
|
|
| 17. |
111601-00761
|
[1] |
|
|
| 18. |
120311-00196
|
[1] |
ECROU
|
|
| 2. |
131002-00460
|
[1] |
DOUILLE
|
|
| 20. |
120501-02352
|
[2] |
REMARQUES
|
|
| 22. |
400602-00733
|
[1] |
|
|
| 23. |
301320-00006
|
[1] |
|
|
| 24. |
120203-00494
|
[1] |
|
|
| 25. |
120203-00596
|
[1] |
COLLIER
|
|
| 3. |
131002-00453
|
[1] |
DOUILLE
|
|
| 4. |
120501-03020
|
[2] |
REMARQUES
|
|
| 5. |
110411-00239
|
[1] |
|
|
| 6. |
110949-00651
|
[1] |
BAGUE D`ECARTEMENT
|
|
| 7. |
120705-00733
|
[1] |
VIS
|
|
| 8. |
120106-00663
|
[2] |
|
|
| 9. |
120705-00836
|
[5] |
VIS
|
|
| A. |
420203-00461
|
[1] |
|
|
