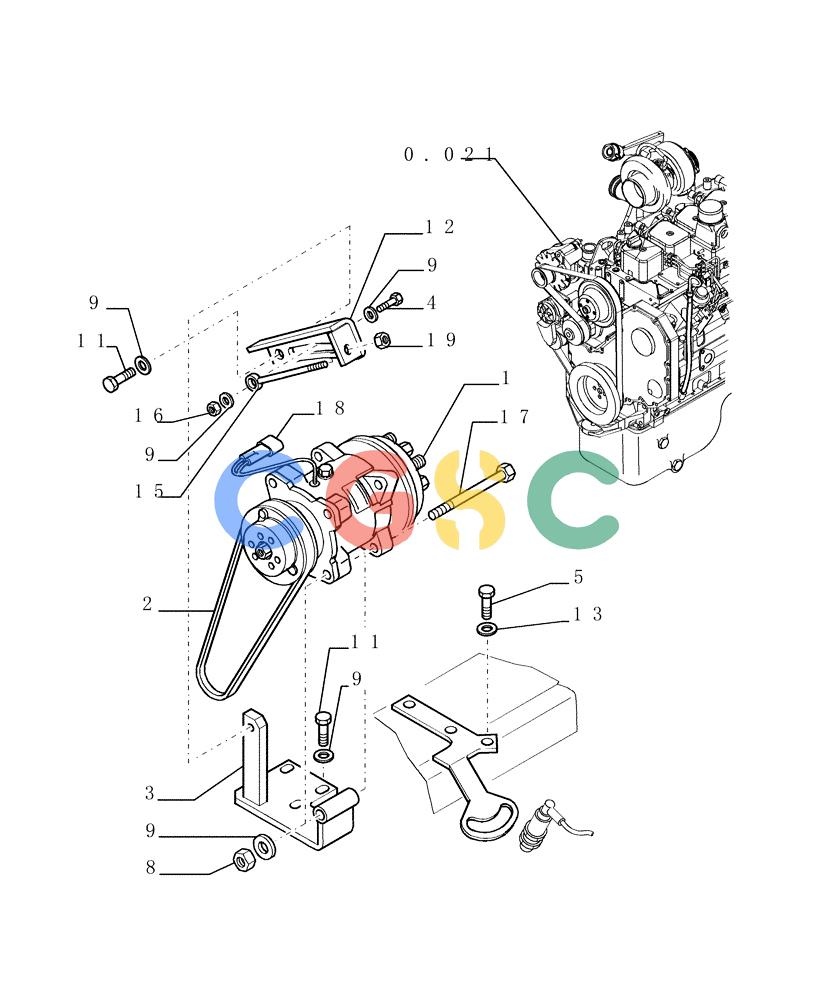

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.653[03]) - ROPS CAB WITH CONDITIONER - OPTIONAL CODE 784110251 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
250 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76047005 | [1] | AIRCOND. COMPRESSOR | LEC |
| . . | 76047005R | [1] | REMAN-COMPRESSOR | LECD150 (1/05-) |
| . . | 76047005C | [1] | CORE-COMPRESSOR | LECReturn Number |
| 2. | 76089500 | [1] | BELT,13.00 mm W x 1030.00 mm L | LEC |
| 3. | 76093676 | [1] | SUPPORT | LECCOMPRESSOR |
| 4. | 11107531 | [1] | SCREW,Hex, M10 x 65mm, Cl 10.9 | LEC |
| 5. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 8. | 12577221 | [3] | LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND | LEC |
| 9. | 12626231 | [9] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 11. | 16040831 | [4] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43248 |
| 12. | 76093677 | [1] | BRACKET | LEC |
| 13. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 15. | 76089504 | [1] | ADJUSTMENT ROD | LEC Superseded by part number: 87556198 |
| 16. | 11701721 | [1] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 17. | 11107231 | [1] | SCREW,Hex, M10 x 50mm, Cl 10.9 | LEC Superseded by part number: 75205092, 43249 |
| 18. | 76066222 | [1] | WIRE HARNESS | LEC |
| 19. | 16104121 | [1] | NUT,M8 x 1.25, Cl 10 | LEC Superseded by part number: 17152821 |
