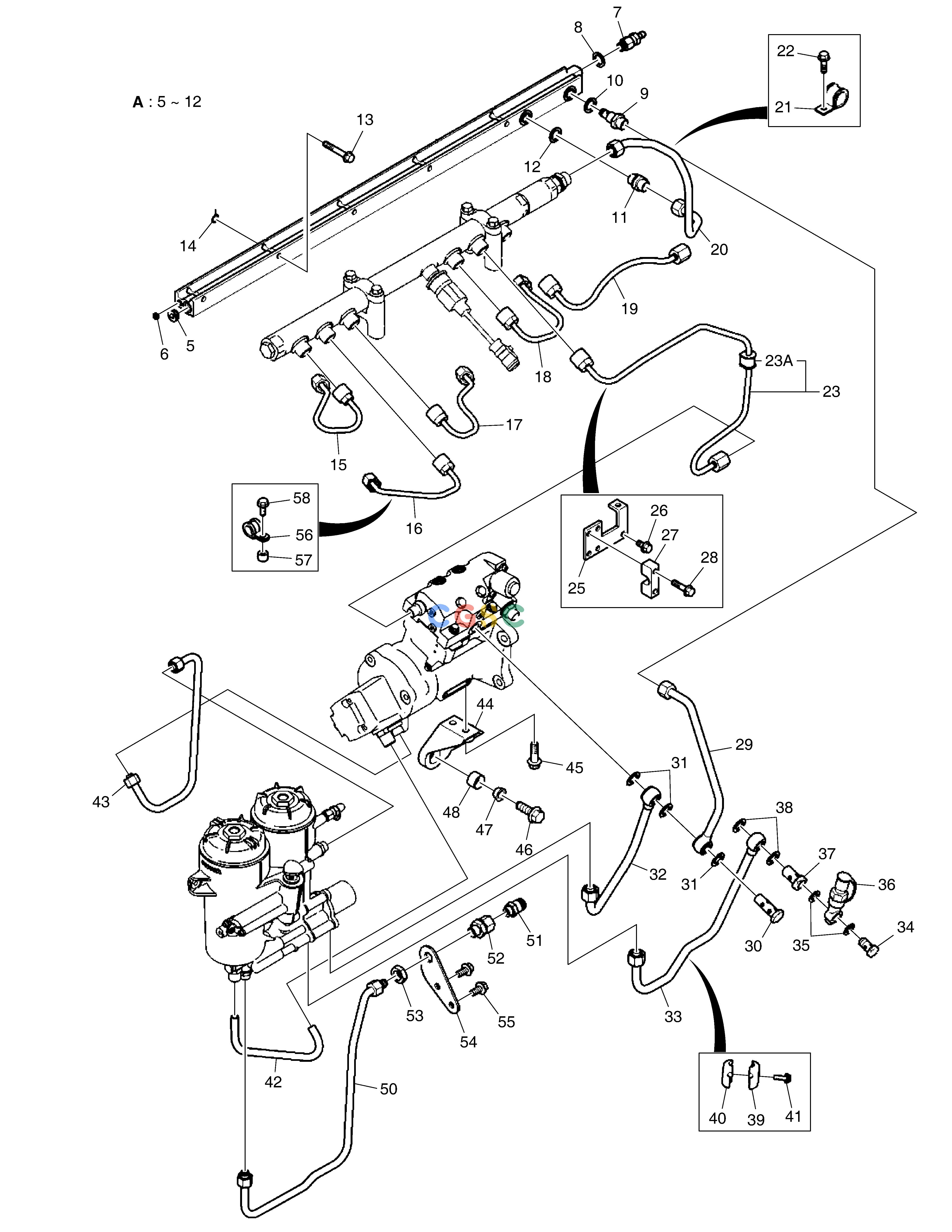

斗山零件查询FUEL PIPING DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
420 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
120808-00541
|
[1] |
RON DE LLE
|
|
| 11. |
430208-00227
|
[1] |
CONNECTEUR
|
|
| 12. |
120808-00540
|
[1] |
RONDELLE
|
|
| 13. |
120705-00734
|
[5] |
VIS
|
|
| 14. |
400602-00730
|
[5] |
|
|
| 15. |
420204-00287
|
[1] |
TUYAU
|
|
| 16. |
420204-00492
|
[1] |
TUYAU
|
|
| 17. |
420204-00289
|
[1] |
TUYAU
|
|
| 18. |
420204-00695
|
[1] |
CONDUITE
|
|
| 18. |
420210-01197
|
[1] |
CONDUITE
|
|
| 19. |
420204-00291
|
[1] |
TUYAU
|
|
| 20. |
420204-00283
|
[1] |
|
|
| 21. |
120203-00288
|
[1] |
COLLIER
|
|
| 22. |
120705-00730
|
[1] |
VIS
|
|
| 23. |
101529-00447
|
[1] |
KIT, REPARATION
|
|
| 23A. |
180313-00158
|
[2] |
|
|
| 25. |
110411-00117
|
[1] |
|
|
| 26. |
120705-00730
|
[2] |
VIS
|
|
| 27. |
110411-00133
|
[2] |
|
|
| 28. |
120705-00732
|
[4] |
VIS
|
|
| 29. |
420204-00284
|
[1] |
|
|
| 30. |
120705-00720
|
[1] |
|
|
| 31. |
120808-00544
|
[3] |
|
|
| 32. |
420210-00859
|
[1] |
|
|
| 33. |
420204-00294
|
[1] |
|
|
| 34. |
120705-00721
|
[1] |
VIS
|
|
| 35. |
120808-00543
|
[2] |
|
|
| 36. |
101552-00188
|
[1] |
GRAISSEUR
|
|
| 37. |
120705-00722
|
[1] |
|
|
| 38. |
120808-00544
|
[2] |
|
|
| 39. |
120203-00296
|
[2] |
|
|
| 40. |
120203-00297
|
[2] |
|
|
| 41. |
120705-00731
|
[2] |
VIS
|
|
| 42. |
420210-01030
|
[1] |
|
|
| 43. |
420210-00860
|
[1] |
|
|
| 44. |
110411-00122
|
[1] |
|
|
| 45. |
120705-00739
|
[2] |
|
|
| 46. |
120705-00696
|
[1] |
|
|
| 47. |
401003-00362
|
[1] |
|
|
| 48. |
401003-00361
|
[1] |
|
|
| 5. |
430221-00590
|
[2] |
|
|
| 50. |
420204-00493
|
[1] |
|
|
| 51. |
430208-00441
|
[1] |
|
|
| 52. |
430208-00233
|
[1] |
|
|
| 53. |
120312-00344
|
[1] |
|
|
| 54. |
110411-00231
|
[1] |
|
|
| 55. |
120705-00738
|
[2] |
VIS
|
|
| 56. |
120203-00289
|
[1] |
COLLIER
|
|
| 57. |
110951-00685
|
[1] |
ENTRETOISE
|
|
| 58. |
120705-00694
|
[1] |
VIS
|
|
| 6. |
430221-00589
|
[1] |
BOUCHON
|
|
| 7. |
101552-00187
|
[1] |
|
|
| 8. |
120808-00539
|
[1] |
RONDELLE
|
|
| 9. |
410117-00005
|
[1] |
|
|
| A. |
400824-00251
|
[1] |
DISTRIBUTEUR
|
|
