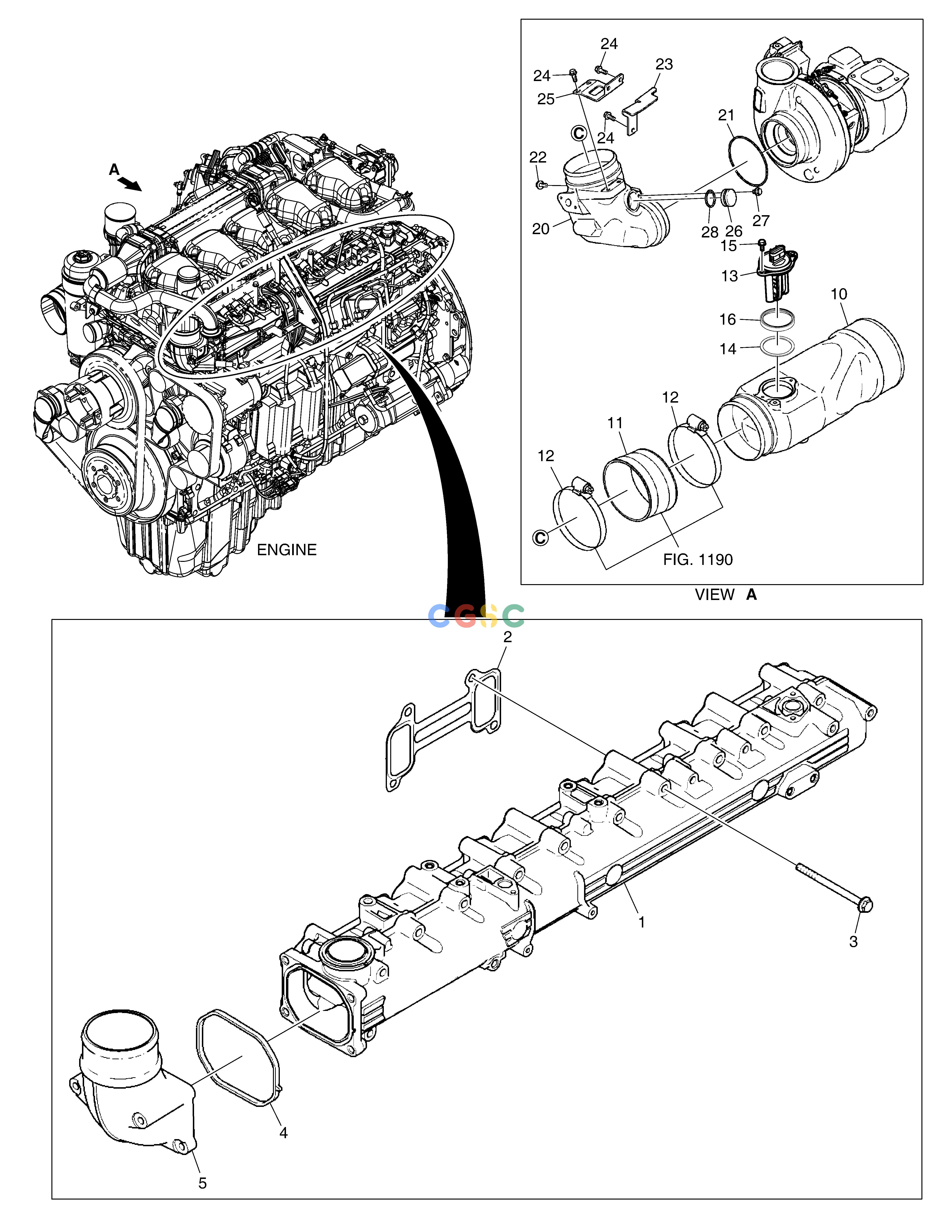

斗山零件查询INTAKE MANIFOLD DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
577 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
240203-00211
|
[1] |
|
|
| 10. |
240401-00231
|
[1] |
|
|
| 11. |
420101-00694A
|
[1] |
|
|
| 12. |
S8500143
|
[2] |
CLAMP;HOSE
|
|
| 13. |
301317-00101
|
[1] |
CAPTEUR
|
|
| 14. |
400602-00729
|
[1] |
GARNITURE
|
|
| 15. |
120705-00694
|
[2] |
VIS
|
|
| 16. |
110949-00655
|
[1] |
DOUILLE
|
|
| 2. |
400602-00457
|
[5] |
|
|
| 20. |
240401-00232
|
[1] |
CONDUITES
|
|
| 21. |
401002-01345
|
[1] |
JOINT TORIQUE
|
|
| 22. |
120705-00731
|
[1] |
VIS
|
|
| 23. |
110411-00226
|
[1] |
SUPPORT
|
|
| 24. |
120705-00730
|
[6] |
VIS
|
|
| 25. |
110411-00227
|
[1] |
|
|
| 26. |
430221-01061
|
[1] |
PRISE
|
|
| 27. |
120705-00728
|
[1] |
VIS
|
|
| 28. |
401002-01346
|
[1] |
JOINT TORIQUE
|
|
| 3. |
120705-00737
|
[20] |
VIS
|
|
| 4. |
401109-00076
|
[1] |
ANNEAU DE JOINT
|
|
| 5. |
420202-00310
|
[1] |
|
|
