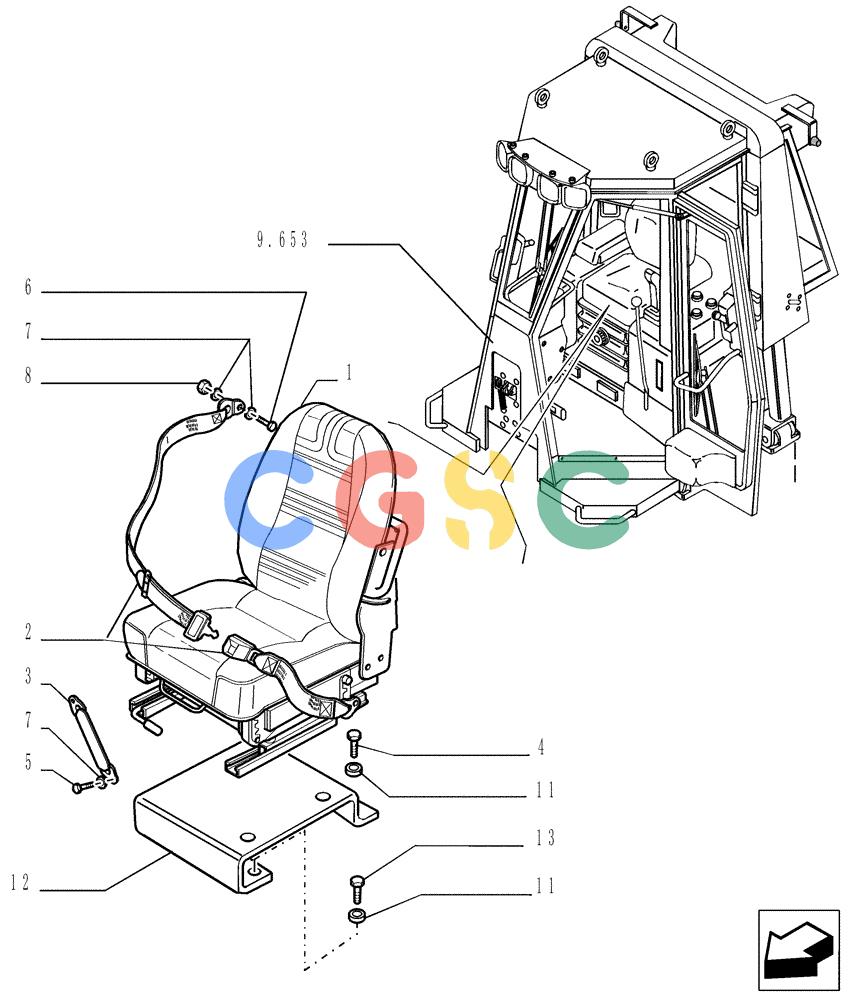

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.667[01]) - SEAT WITH ELASTIC SUSPENSION - OPTIONAL CODE 784334001 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
494 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76069731 | [1] | DRIVER SEAT | LEC- ASSY SEE PAG.2 |
| 2. | 76075496 | [1] | SAFETY BELT | LEC |
| 3. | 79035976 | [2] | SHIELD | LEC |
| 4. | 16043431 | [4] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 5. | 10979231 | [2] | BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87547661 |
| 6. | 11106431 | [2] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 7. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 8. | 12577221 | [2] | LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND | LEC |
| 11. | 14496531 | [8] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 12. | 76301151 | [1] | SUPPORT | LEC |
