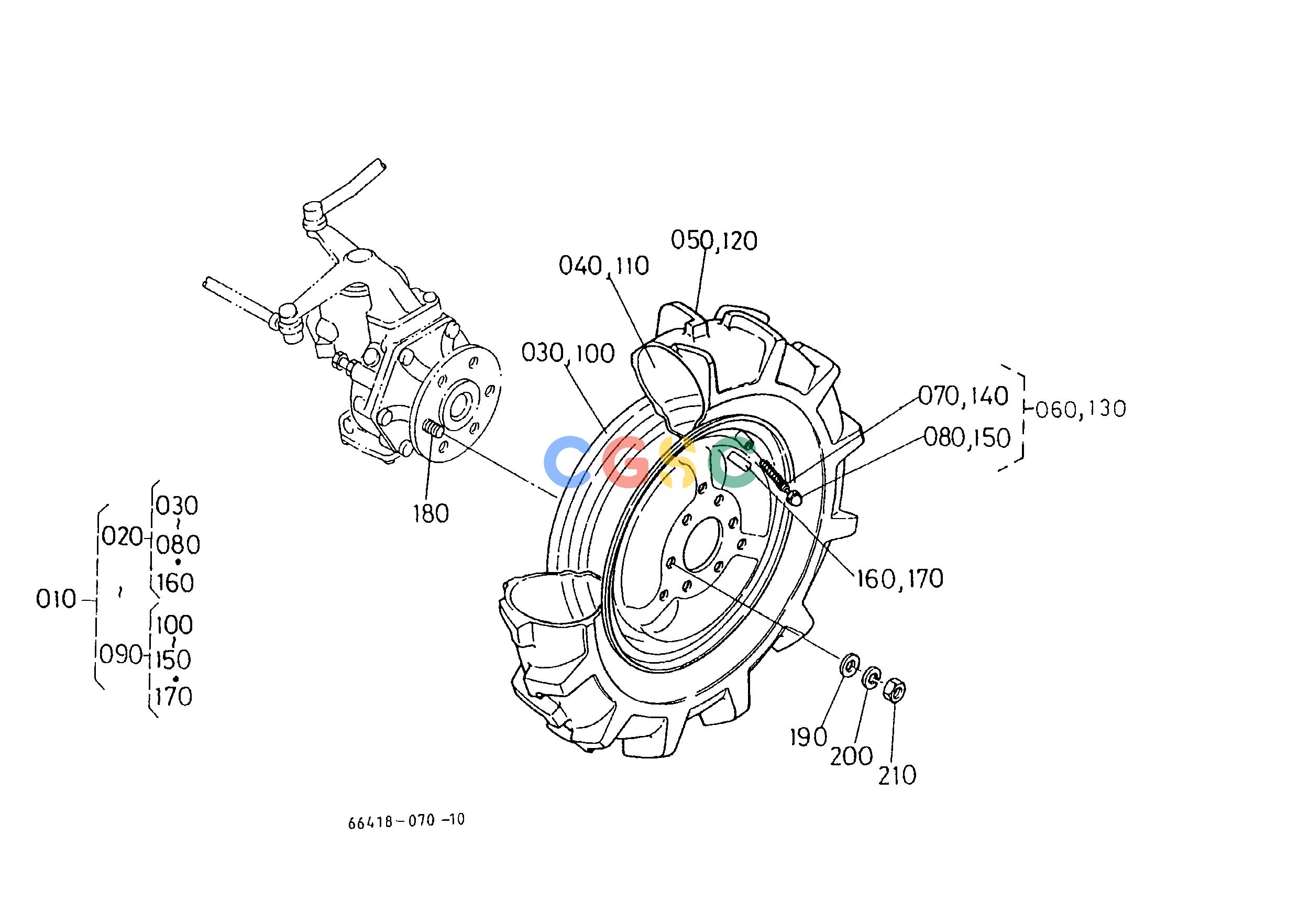

久保田零件查询T09701 FRONT WHEEL (6-12) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
534 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641657300
|
[1] |
ASSY TIRE FRONT
|
61.6000(lbs); 28.000
|
| 020. |
6641657310
|
[1] |
ASSY TIRE LH
|
30.8000(lbs); 14.000
|
| 030. |
6641957420
|
[1] |
WHEEL
|
13.0020(lbs); 5.910
|
| 040. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 050. |
6752157330
|
[1] |
TIRE
|
16.2800(lbs); 7.400
|
| 060. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 070. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 080. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 090. |
6641657340
|
[1] |
ASSY TIRE RH
|
30.8000(lbs); 14.000
|
| 100. |
6641957420
|
[1] |
WHEEL
|
13.0020(lbs); 5.910
|
| 110. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 120. |
6752157330
|
[1] |
TIRE
|
16.2800(lbs); 7.400
|
| 130. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 140. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 150. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 160. |
6641657430
|
[1] |
LABEL TIRE LH
|
0.0022(lbs); 0.001
|
| 170. |
6641657450
|
[1] |
LABEL TIRE RH
|
0.0022(lbs); 0.001
|
| 180. |
6659156564
|
[12] |
BOLT STUD
|
0.0616(lbs); 0.028
|
| 190. |
0401360120
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 200. |
0451250120
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 210. |
0217450120
|
[12] |
NUT
|
0.0220(lbs); 0.010
|
