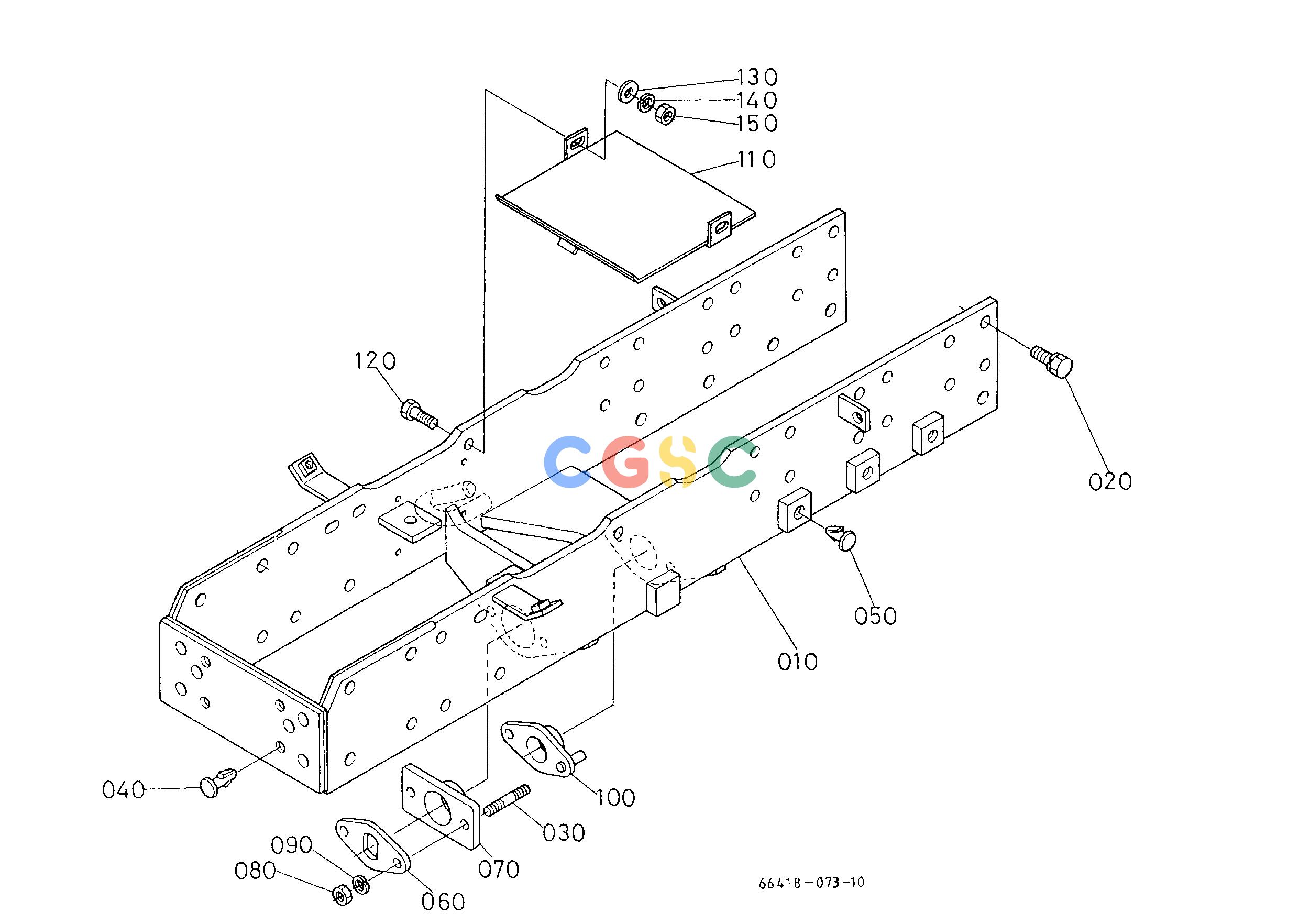

久保田零件查询T09800 FRONT AXEL FRAME FRONT AXLE/FRONT WHEELEPC Kubota online_久保田Kubota_工程机械

久保田零件查询T09800 FRONT AXEL FRAME FRONT AXLE/FRONT WHEELEPC Kubota online

广数供应链运营团队, 14 02月, 2025，浏览： 939 次

Pos.	Part No	Qty	Parts name	Comments
010.	6641851910	[1]	FRAME FRONT AXLE	; <=51242 46.2000(lbs); 21.000
010.	6641851913	[1]	FRAME FRONT AXLE	; =>51243 46.2000(lbs); 21.000
020.	0113351025	[14]	BOLT	WITH BI-SPEED TURN 0.0506(lbs); 0.023
030.	0151350820	[2]	STUD	; <=51242 0.0440(lbs); 0.020
030.	0151761022	[2]	STUD	; =>51243 0.0418(lbs); 0.019
040.	6721151120	[4]	PLUG	0.0022(lbs); 0.001
050.	6721111140	[6]	PLUG	0.0022(lbs); 0.001
060.	6780051960	[1]	WASHER LOCK	; <=51242 0.2090(lbs); 0.095
060.	3270151960	[1]	WASHER LOCK	; =>51243 0.1980(lbs); 0.090
070.	6780051970	[1]	BUSH	; <=51242 0.2420(lbs); 0.110
070.	6780051972	[1]	BUSH	; =>51243 0.3300(lbs); 0.150
080.	0211450080	[2]	NUT	; <=51242 0.0110(lbs); 0.005
080.	0211450100	[2]	NUT	; =>51243 0.0110(lbs); 0.005
090.	0451260080	[2]	WASHER SPRING	; <=51242 0.0044(lbs); 0.002
090.	0451260100	[2]	WASHER SPRING	; =>51243 0.0044(lbs); 0.002
100.	6780051980	[1]	BUSH	0.2750(lbs); 0.125
110.	6641851950	[1]	COVER F.AXLE FRAME	0.5500(lbs); 0.250
120.	0115350825	[2]	BOLT	0.0264(lbs); 0.012
130.	0401350080	[2]	WASHER PLAIN	0.0066(lbs); 0.003
140.	0451260080	[2]	WASHER SPRING	0.0044(lbs); 0.002
150.	0211450080	[2]	NUT	0.0110(lbs); 0.005
