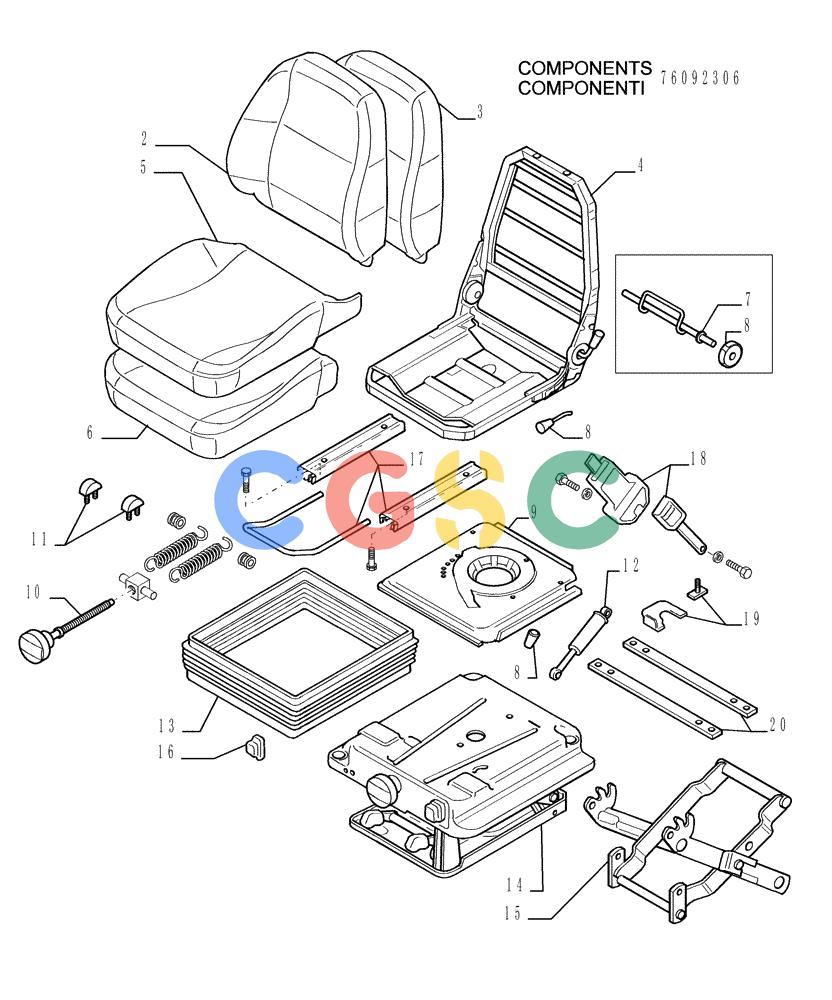

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.669[02]) - SEAT WITH ELASTIC SUSPENSION - OPTIONAL CODE 784336001 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
936 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | 76095002 | [1] | SEAT BACK | LEC Superseded by part number: 9969293 |
| 4. | 76095003 | [1] | FRAME | LEC |
| 7. | 76095006 | [1] | KIT | LEC |
| 8. | 76095007 | [1] | KIT | LEC |
| 9. | 76095008 | [1] | KIT | LEC |
| 11. | 76095010 | [1] | KIT | LEC |
| 13. | 76095012 | [1] | KIT | LEC |
| 16. | 76095015 | [1] | KIT | LEC |
| 17. | 76095017 | [1] | KIT | LEC |
| 18. | 76095019 | [1] | KIT | LEC |
| 20. | 76095020 | [1] | KIT | LEC |
