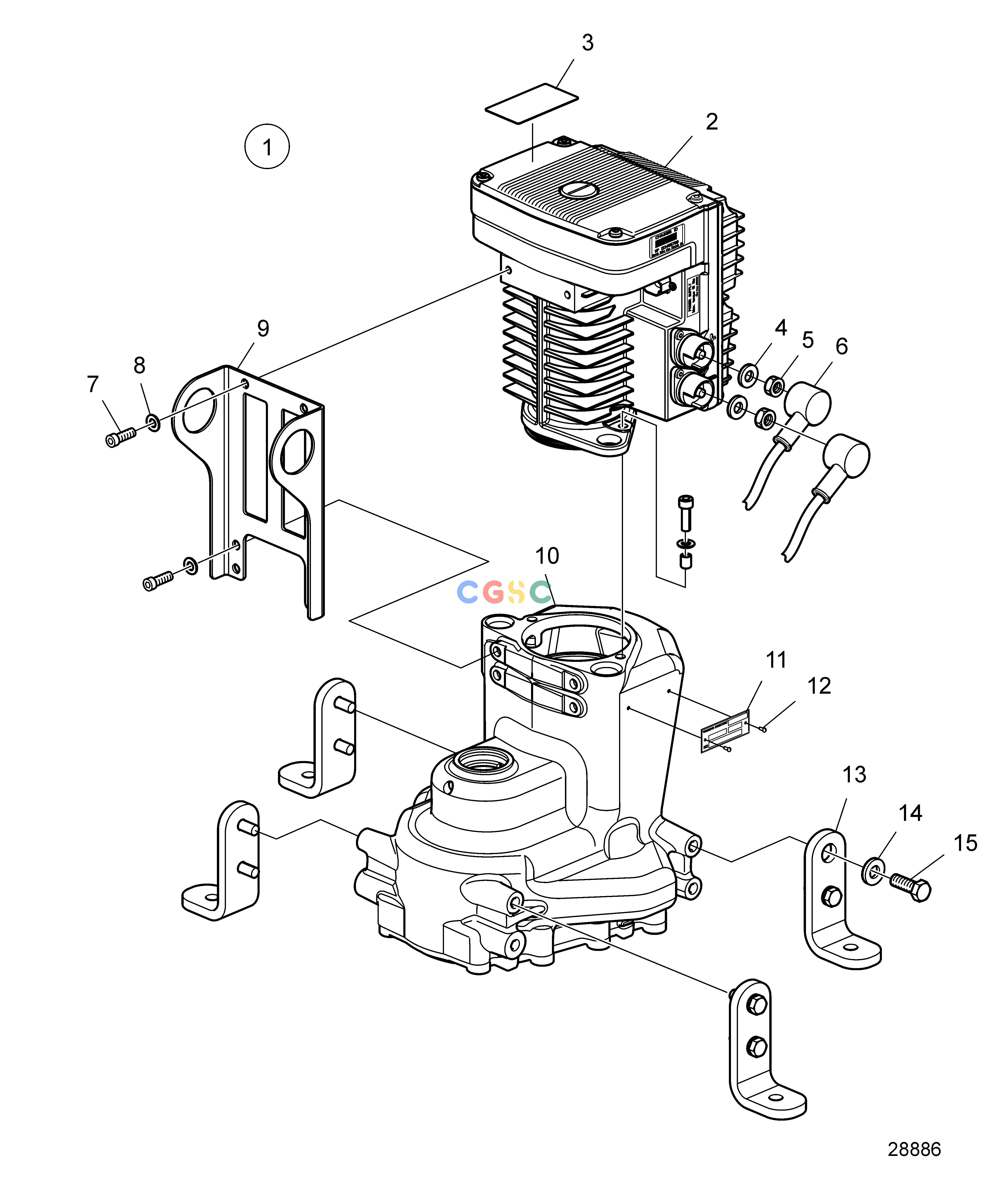

沃尔沃零件查询D11B3-A MP; D11B4-A MPSteering SystemElectrical Inboard Steering, SUS1 EVC-E3EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
387 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
22796035
|
[1] |
Servo unit
|
|
| 2. |
3801717
|
[1] |
Servo unit, exch
|
|
| 2. |
21586516
|
[1] |
Wiring harness
|
|
| 3. |
3809619
|
[1] |
Decal
|
|
| 4. |
941670
|
[2] |
Washer
|
|
| 5. |
946330
|
[2] |
Hexagon nut
|
|
| 6. |
3588539
|
[2] |
Protective cap
|
|
| 7. |
946541
|
[8] |
Hex. socket screw
|
|
| 8. |
941670
|
[8] |
Washer
|
|
| 9. |
22630326
|
[1] |
Bracket
|
|
| 10. |
47706980_188
|
|
Gear housing
|
|
| 11. |
3817315
|
[1] |
Type plate
|
|
| 12. |
804269
|
[2] |
Drive screw
|
|
| 13. |
22630330
|
[4] |
Mounting base
|
|
| 14. |
942551
|
[8] |
Washer
|
|
| 15. |
984914
|
[8] |
Hexagon screw
|
|
