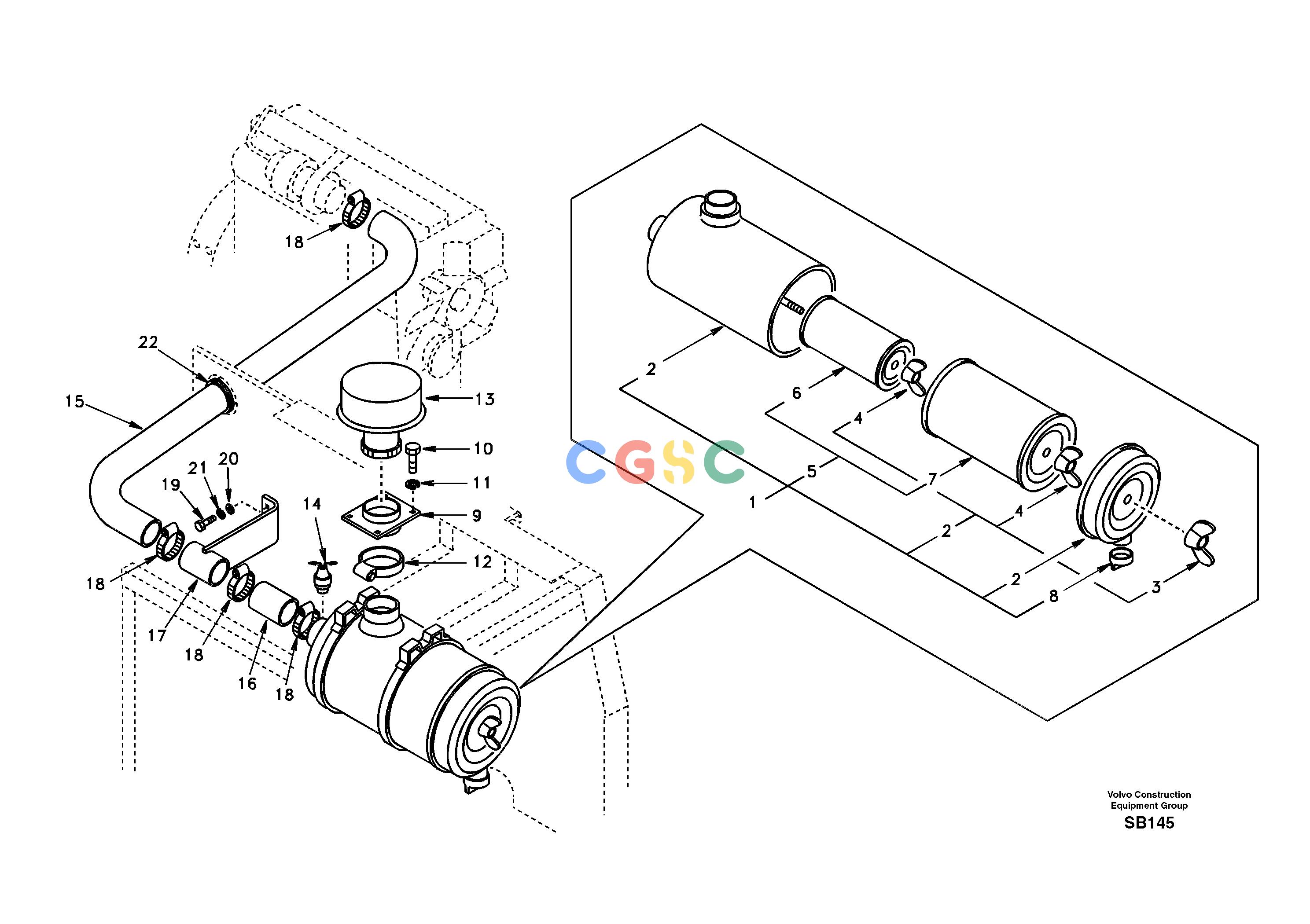

沃尔沃零件查询EC240 Inlet system, pre-cleanerNoneDE04F001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
333 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1113-00250
|
[1] |
Body
|
|
| 2. |
SA1113-00250
|
[1] |
Body
|
|
| 3. |
SA9912-30200
|
[2] |
Nut
|
|
| 4. |
SA9912-45300
|
[0001] |
Nut
|
|
| 5. |
SA8240-02820
|
[1] |
Filter
|
|
| 6. |
SA9912-45800
|
[1] |
Filter
|
|
| 7. |
SA9912-45700
|
[1] |
Filter
|
|
| 8. |
SA9912-30900
|
[1] |
Vacuator
|
|
| 9. |
SA1113-00052
|
[1] |
Connector
|
|
| 10. |
SA9011-10804
|
[4] |
Bolt
|
|
| 11. |
VOE993835
|
[4] |
Plain washer
|
|
| 12. |
SA1113-00180
|
[1] |
Clamp
|
SER NO 3001-3410
|
| 13. |
SA1113-01050
|
[1] |
Pre-cleaner
|
|
| 14. |
SA1113-00040
|
[1] |
Indicator
|
|
| 15. |
SA1113-00211
|
[1] |
Air hose
|
|
| 16. |
SA1113-00230
|
[1] |
Hose
|
|
| 17. |
SA1113-00221
|
[1] |
Connector
|
|
| 18. |
VOE14883778
|
[4] |
Hose clamp
|
|
| 19. |
SA9011-11004
|
[2] |
Bolt
|
|
| 20. |
VOE992040
|
[2] |
Plain washer
|
|
| 21. |
SA9213-10000
|
[2] |
Spring washer
|
|
| 22. |
SA1113-00190
|
[1] |
Grommet
|
|
