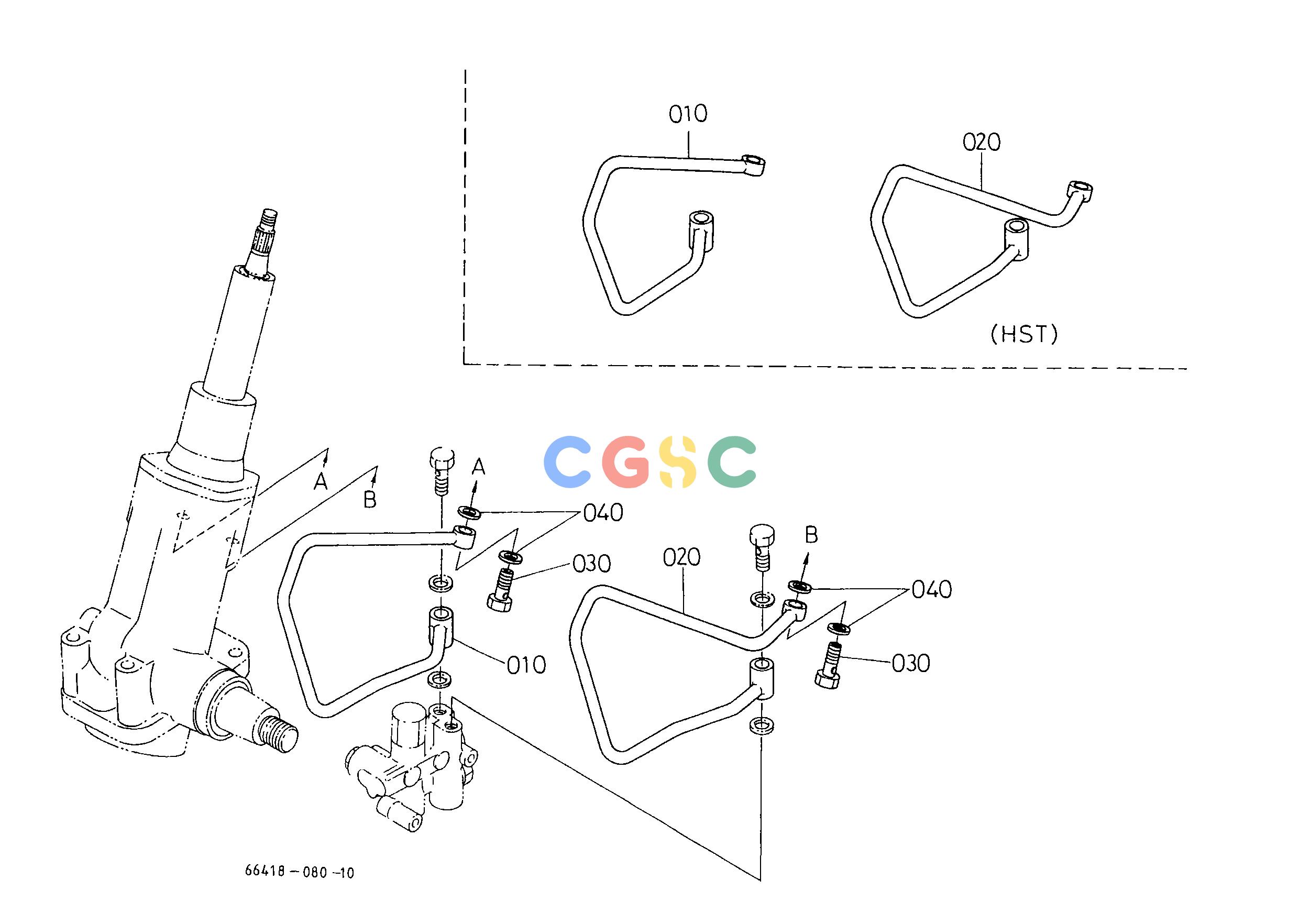

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6641841630 | [1] | PIPE DELIVERY | 0.3520(lbs); 0.160 |
| 020. | 6641841640 | [1] | PIPE RETURN | 0.4180(lbs); 0.190 |
| 030. | 6781037880 | [2] | BOLT | 0.0726(lbs); 0.033 |
| 040. | 0472400120 | [4] | GASKET | 0.0044(lbs); 0.002 |
广数供应链运营团队, 14 02月, 2025，浏览： 313 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6641841630 | [1] | PIPE DELIVERY | 0.3520(lbs); 0.160 |
| 020. | 6641841640 | [1] | PIPE RETURN | 0.4180(lbs); 0.190 |
| 030. | 6781037880 | [2] | BOLT | 0.0726(lbs); 0.033 |
| 040. | 0472400120 | [4] | GASKET | 0.0044(lbs); 0.002 |
