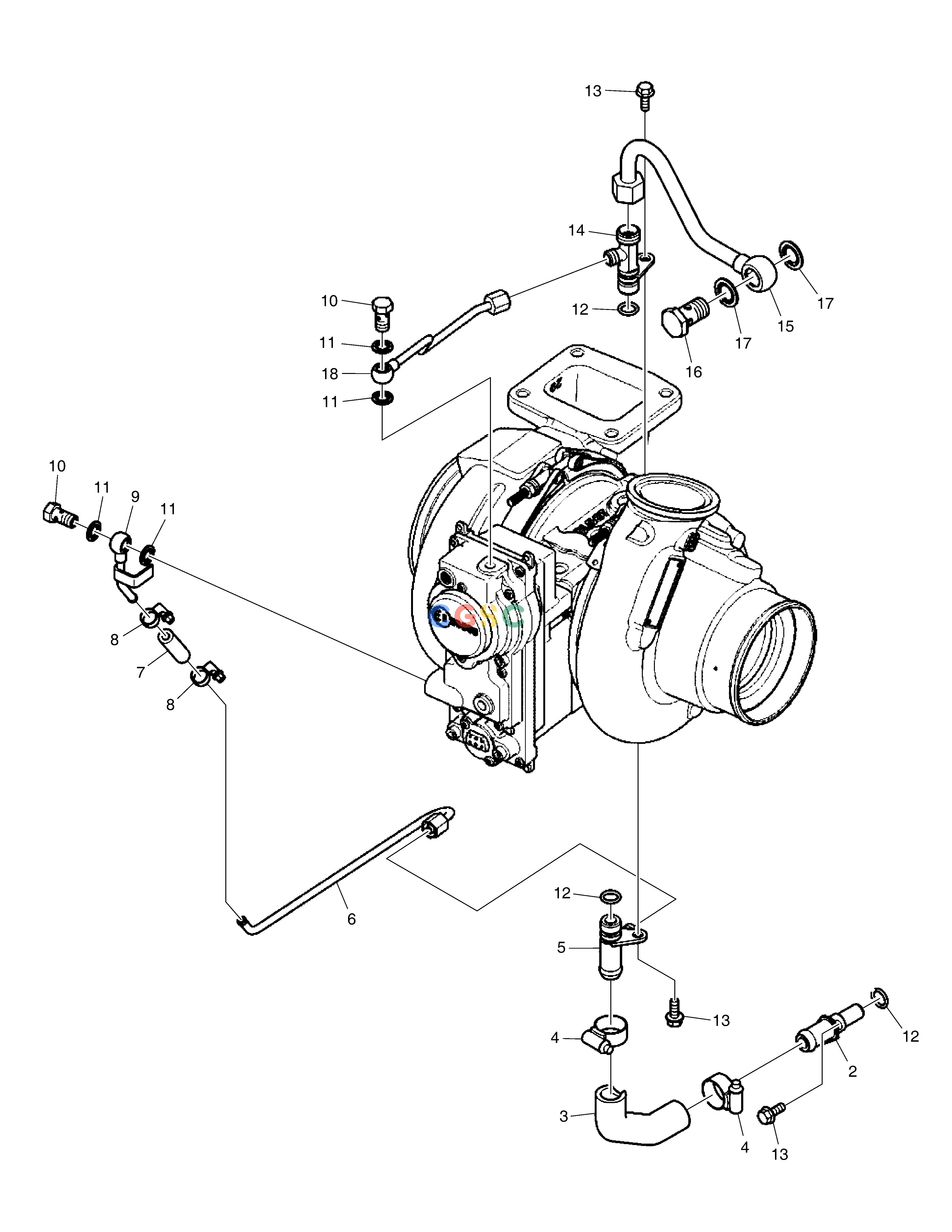

斗山零件查询TURBO CHARGER COOLANT PIPE DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
372 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
120705-00721
|
[2] |
VIS
|
|
| 11. |
120808-00543
|
[4] |
|
|
| 12. |
401002-00691
|
[3] |
JOINT
|
|
| 13. |
120705-00724
|
[3] |
VIS
|
|
| 14. |
430208-00529
|
[1] |
|
|
| 15. |
420211-00644
|
[1] |
|
|
| 16. |
120705-00841
|
[1] |
|
|
| 17. |
120808-00544
|
[2] |
|
|
| 18. |
420211-00645
|
[1] |
|
|
| 2. |
101552-00363
|
[1] |
|
|
| 3. |
420108-01152
|
[1] |
|
|
| 4. |
120202-00172
|
[2] |
|
|
| 5. |
430208-00528
|
[1] |
|
|
| 6. |
420211-00643
|
[1] |
|
|
| 7. |
420108-01153
|
[1] |
|
|
| 8. |
120202-00143
|
[2] |
|
|
| 9. |
420210-01708
|
[1] |
|
|
