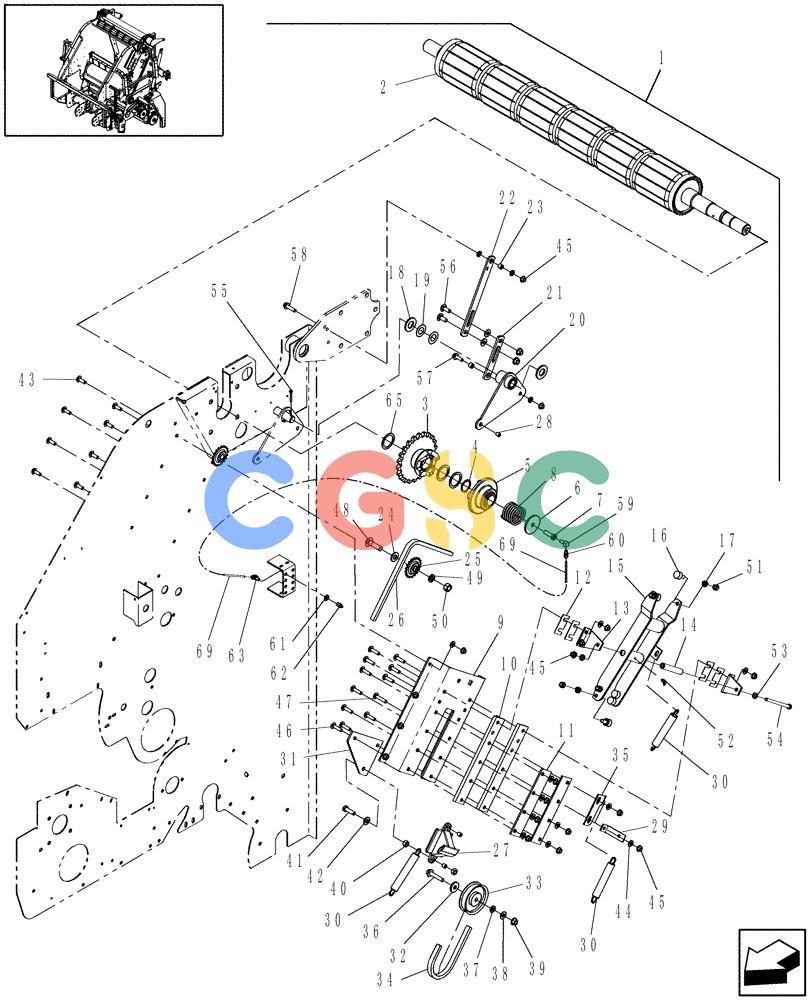

| 1. |
87397688
|
[1] |
DIA KIT, HARVESTER
|
PA
Declutch & Drive Roll, Includes: Installation Instructions
|
| 2. |
87027869
|
[1] |
ROLLER
|
PA
Drive Superseded by part number: 84496217
|
| 3. |
87032323
|
[1] |
SPROCKET
|
PA
|
| 4. |
45440
|
[1] |
SNAP RING,#162, Ext
|
GI
|
| 5. |
87028608
|
[1] |
CLUTCH
|
NH
|
| 6. |
9829364
|
[1] |
CAP COVER
|
NH
|
| 7. |
86618213
|
[1] |
SPECIAL BOLT,M12 x 40mm, Drilled
|
NH
|
| 8. |
86640119
|
[1] |
SPRING,Compression, 2.438" OD x 4.5" L
|
NH
|
| 9. |
87020601
|
[1] |
CHANNEL
|
PA
|
| 10. |
86636874
|
[2] |
BAR
|
NH
|
| 11. |
86636784
|
[2] |
BAR
|
NH
|
| 12. |
86636889
|
[4] |
SHIM
|
NH
|
| 13. |
86636785
|
[2] |
ANGLE
|
NH
|
| 14. |
86636660
|
[1] |
TUBE,0.75" OD x 4.50" L
|
NH
|
| 15. |
84148598
|
[1] |
FORK
|
NH
|
| 16. |
86617019
|
[6] |
CAM FOLLOWER
|
NH
|
| 17. |
86636890
|
[6] |
SPACER
|
NH
|
| 18. |
87367
|
[2] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
PA
|
| 19. |
134463
|
[2] |
WASHER,.030" Thk
|
NH
|
| 20. |
87020603
|
[1] |
CRANK
|
PA
|
| 21. |
86636886
|
[1] |
BAR
|
NH
|
| 22. |
86636884
|
[1] |
BAR
|
NH
|
| 23. |
768703
|
[2] |
BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L
|
NH
|
| 24. |
87365
|
[1] |
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
|
NH
|
| 25. |
103243
|
[1] |
DRIVEN SPROCKET
|
NH
Idler, 18T
|
| 26. |
9617629
|
[1] |
CHAIN,41 Links x 12.7mm Pitch = 520.7mm L
|
NH
Size 08A (40ASA), Includes :39 Reg. Links & (2) Ref. 64 Superseded by part number: 569088R91X, 242-138
|
| 27. |
86636998
|
[1] |
BLOCK
|
NH
|
| 28. |
86636763
|
[3] |
HUB
|
NH
|
| 29. |
86636797
|
[1] |
ANGLE
|
NH
|
| 30. |
86559592
|
[3] |
SPRING,Extension, 0.99" OD x 6-1/4" L
|
NH
|
| 31. |
87020602
|
[1] |
PLATE
|
PA
|
| 32. |
26312
|
[1] |
WASHER
|
NH
Superseded by part number: 695335
|
| 33. |
86636724
|
[1] |
IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W
|
NH
|
| 34. |
9803024
|
[1] |
CHAIN
|
NH
Superseded by part number: 89803024
|
| 35. |
86636875
|
[1] |
BRACKET
|
NH
|
| 36. |
9804270
|
[1] |
BOLT,Hex, M12 x 60mm, Cl 8.8
|
NH
|
| 37. |
86511324
|
[1] |
WASHER,13mm ID x 24mm OD x 2.5mm Thk
|
NH
Superseded by part number: 87364
|
| 38. |
140046
|
[3] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 39. |
9804279
|
[3] |
FLANGE NUT,Hex, M12, Cl 8
|
NH
Superseded by part number: 86512497
|
| 40. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 41. |
86629541
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 42. |
87364
|
[1] |
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
|
NH
|
| 43. |
86512446
|
[8] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 44. |
140045
|
[20] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 45. |
9804278
|
[23] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 46. |
374892
|
[11] |
CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8
|
NH
|
| 47. |
350459
|
[1] |
CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8
|
ZED
|
| 48. |
280667
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5
|
NH
|
| 49. |
86729275
|
[1] |
LOCK WASHER,5/8 0.634 CST ZND
|
BHB
|
| 50. |
280374
|
[1] |
NUT,Hex, 5/8" - 11, Gr 5
|
NH
|
| 51. |
280474
|
[6] |
NUT,7/16"-20, GC
|
NH
|
| 52. |
87415
|
[1] |
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
|
NH
|
| 53. |
86511323
|
[5] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 54. |
331168
|
[1] |
BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8
|
NH
|
| 55. |
80754
|
[1] |
COTTER PIN,3/16" OD x 1-1/2" OAL
|
NH
|
| 56. |
120044
|
[2] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 57. |
9804262
|
[1] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 58. |
9804263
|
[1] |
BOLT,M10 x 49.2mm, Cl 8.8
|
NH
|
| 59. |
691873
|
[1] |
ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT
|
NH
Swivel, 90° Superseded by part number: 219-416
|
| 60. |
11787
|
[1] |
FITTING,3/8"-24 Fem x 1/8" NPT
|
NH
Superseded by part number: 84341119, 84341119, 87426476
|
| 61. |
87016
|
[1] |
WASHER,0.41" ID x 0.81" OD x 0.07" Thk
|
NH
|
| 62. |
84303
|
[1] |
LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem
|
GI
Superseded by part number: 86050275
|
| 63. |
48564
|
[1] |
90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT
|
NH
|
| 64. |
9828102
|
[2] |
CONNECTING LINK
|
NH
Spring Superseded by part number: 86595261
|
| 65. |
9808110
|
[3] |
WASHER,46mm ID x 60mm OD x 1.64mm Thk
|
NH
|
| 69. |
86629566
|
[1] |
PLASTIC-RUBBER TUBE,2.8mm ID x 4.8mm OD
|
A
Superseded by part number: 87014413
|
