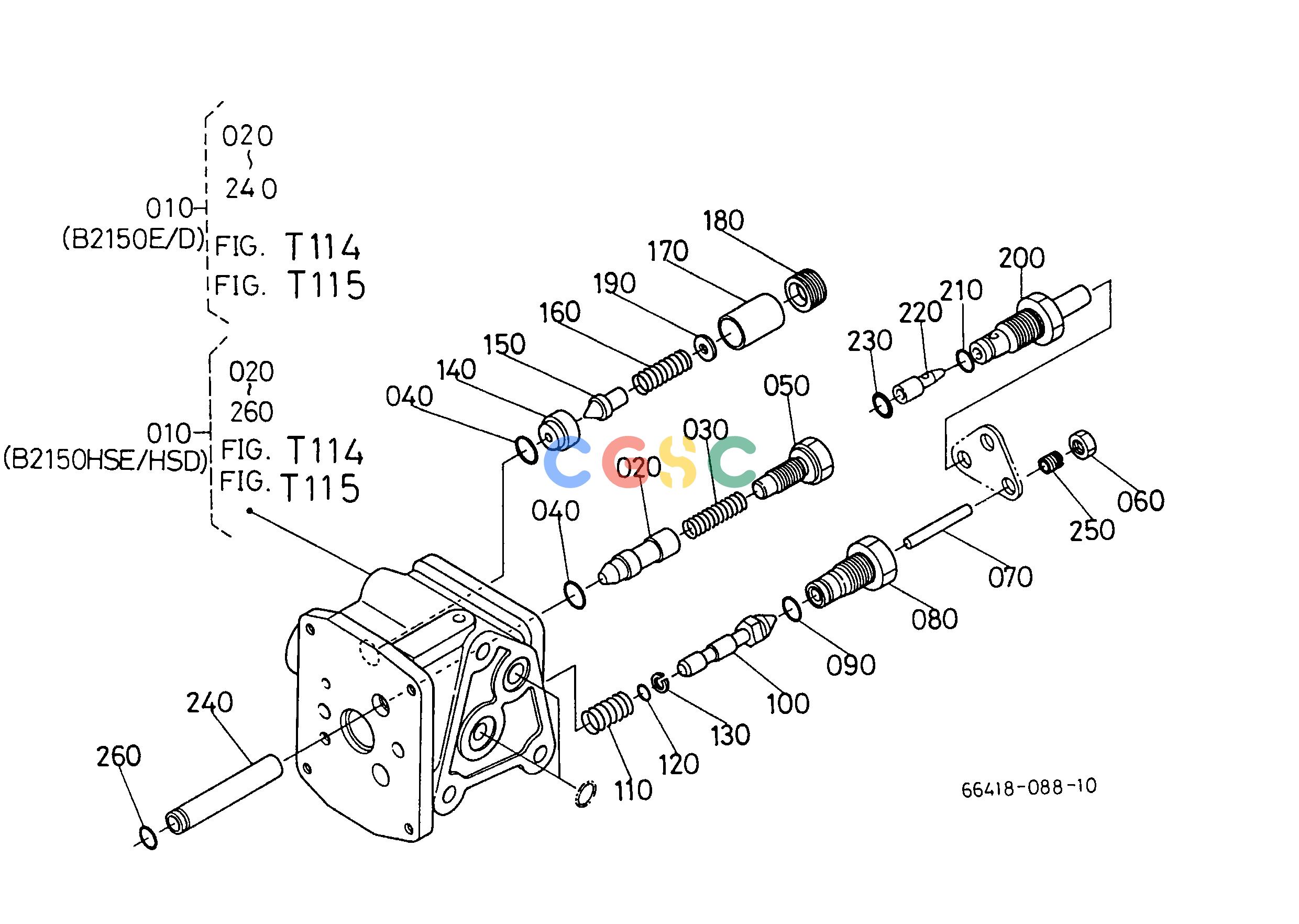

久保田零件查询T11300 CONTROL VALVE1 [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
168 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6781737200
|
[1] |
ASSY VALVE CONTROL
|
0.0022(lbs); 0.001
|
| 020. |
6715636520
|
[1] |
POPPET
|
0.0484(lbs); 0.022
|
| 030. |
6715636530
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 040. |
0481100120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
6715636540
|
[1] |
PLUG
|
0.0858(lbs); 0.039
|
| 060. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 070. |
6715636550
|
[1] |
RETAINER ROD
|
0.0022(lbs); 0.001
|
| 080. |
6715636560
|
[1] |
PLUG
|
0.0022(lbs); 0.001
|
| 090. |
0481106100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
6715636570
|
[1] |
POPPET
|
0.0484(lbs); 0.022
|
| 110. |
6715636580
|
[1] |
SPRING
|
0.0176(lbs); 0.008
|
| 120. |
0481100050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
6715636590
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 140. |
6715636610
|
[1] |
SEAT VALVE
|
0.0220(lbs); 0.010
|
| 150. |
6715636620
|
[1] |
POPPET
|
0.0044(lbs); 0.002
|
| 160. |
6715636630
|
[1] |
SPRING RELIEF
|
0.0286(lbs); 0.013
|
| 170. |
6715636640
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 180. |
6715636650
|
[1] |
SCREW ADJUSTING
|
0.0330(lbs); 0.015
|
| 190. |
6715636660
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 190. |
6715636670
|
[1] |
SHIM ADJUSTING
|
0.0044(lbs); 0.002
|
| 190. |
6715636680
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 200. |
6715636690
|
[1] |
PLUG
|
0.1210(lbs); 0.055
|
| 210. |
0481000090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 220. |
6715636710
|
[1] |
POPPET
|
0.0330(lbs); 0.015
|
| 230. |
0481100110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 250. |
0345000616
|
[1] |
SCREW SET
|
0.0000(lbs); 0.000
|
