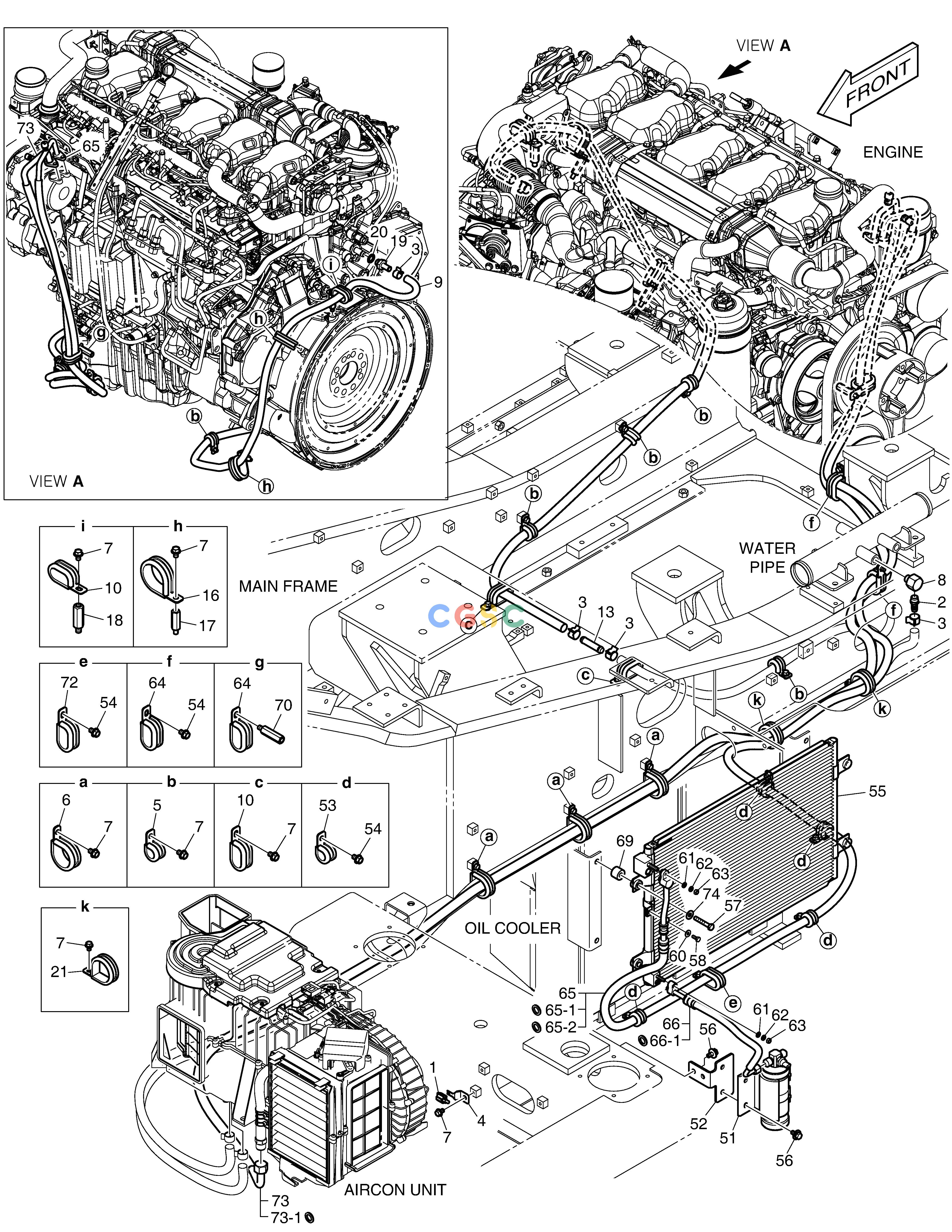

斗山零件查询AIRCONDITIONER(1) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
258 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00349
|
[-] |
|
|
| 1. |
547-00024A
|
[1] |
SENSOR
|
|
| 10. |
124-00209D2
|
[3] |
CLIP
|
|
| 13. |
2181-2498
|
[1] |
JOINT;HOSE
|
|
| 16. |
124-00208D9
|
[2] |
CLIP
|
|
| 17. |
DS0026011
|
[2] |
|
|
| 18. |
DS0026006
|
[1] |
|
|
| 19. |
430201-01130
|
[1] |
|
|
| 2. |
DS2228010
|
[1] |
|
|
| 20. |
401106-00338
|
[1] |
|
|
| 21. |
124-00208D9
|
[2] |
CLIP
|
|
| 3. |
DS2807026
|
[4] |
|
|
| 3. |
S8470028
|
[4] |
CLAMP
|
|
| 4. |
2197-1661
|
[1] |
BRACKET
|
|
| 5. |
124-00208D3
|
[6] |
CLIP
|
|
| 51. |
300720-00003
|
[1] |
DRYER,RECEIVER
|
|
| 52. |
K1007796
|
[1] |
BRACKET
|
|
| 53. |
124-00208D3
|
[4] |
CLIP
|
|
| 54. |
K1001029
|
[7] |
BOLT
|
|
| 55. |
520-00004
|
[1] |
CONDENSER,AIR CON
|
|
| 56. |
DS0025033
|
[4] |
BOLT
|
|
| 57. |
S0509666
|
[4] |
BOLT
|
|
| 58. |
S0504666
|
[1] |
BOLT
|
|
| 6. |
124-00208D7
|
[3] |
CLIP
|
|
| 60. |
2114-1058D52
|
[1] |
WASHER
|
|
| 61. |
S5000313
|
[2] |
WASHER
|
|
| 62. |
S5102303
|
[2] |
. WASHER
|
|
| 63. |
S4012303
|
[2] |
NUT
|
|
| 64. |
124-00209D2
|
[3] |
CLIP
|
|
| 65. |
420102-00499A
|
[1] |
|
|
| 65-1. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 65-2. |
K1011384
|
[1] |
O-RING(CONDENSER)
|
|
| 66. |
420102-00346B
|
[1] |
|
|
| 66-1. |
K1011388
|
[1] |
O-RING
|
|
| 69. |
K1005017
|
[4] |
SPACER
|
|
| 7. |
K1001029
|
[15] |
BOLT
|
|
| 70. |
2120-2187
|
[1] |
BOLT
|
|
| 72. |
124-00209D2
|
[1] |
CLIP
|
|
| 73. |
420102-00348A
|
[1] |
|
|
| 73-1. |
K1011385
|
[1] |
O-RING(EVAPORATOR)
|
|
| 74. |
DS0401202
|
[4] |
|
|
| 8. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 9. |
2185-1308D11
|
[1] |
HOSE;RUBBER
|
|
