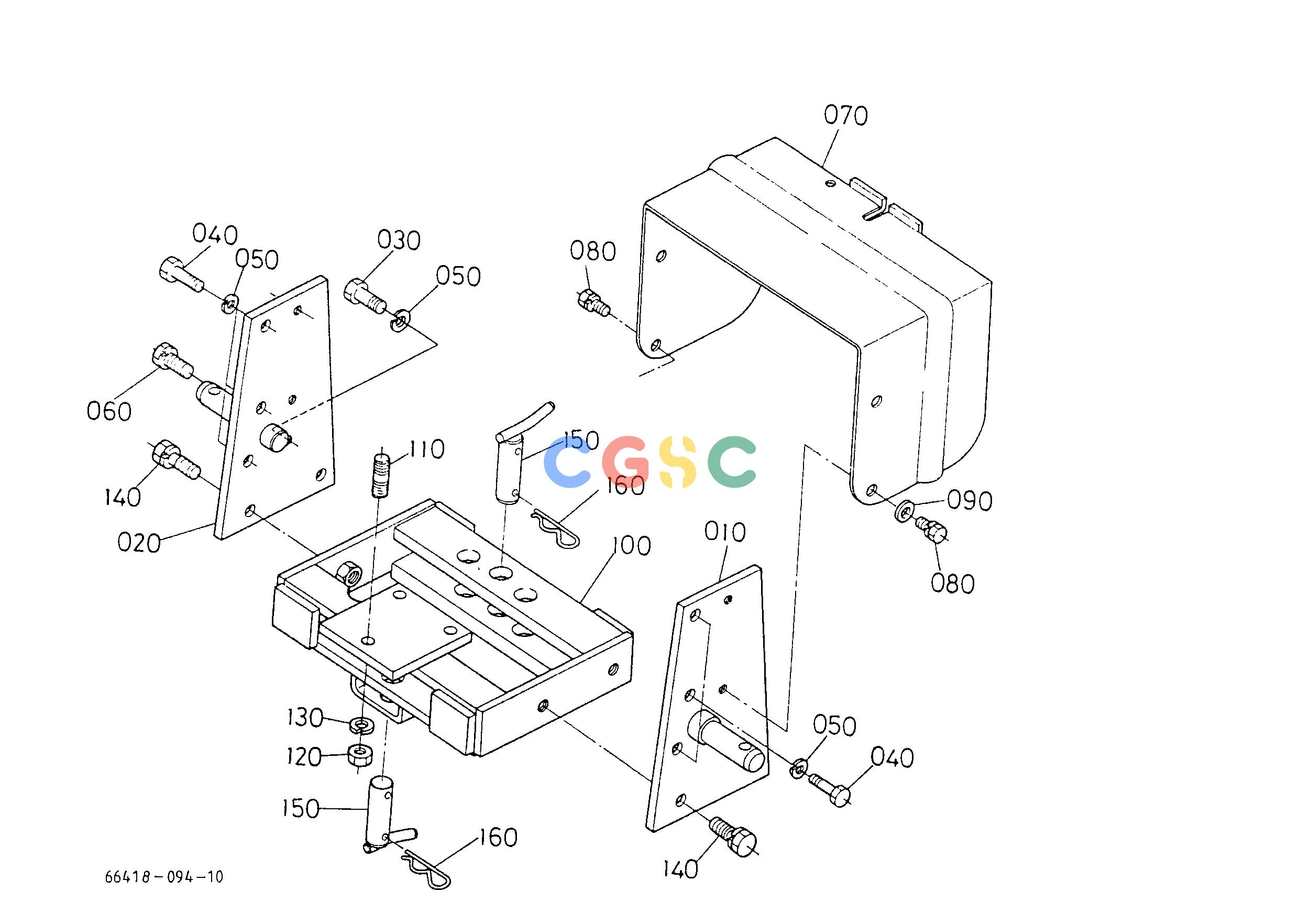

久保田零件查询T11900 HITCH HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
135 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6780025410
|
[1] |
PLATE SIDE LH
|
4.7960(lbs); 2.180
|
| 020. |
6780025420
|
[1] |
PLATE SIDE RH
|
4.8840(lbs); 2.220
|
| 030. |
0115351265
|
[2] |
BOLT
|
0.1430(lbs); 0.065
|
| 040. |
0115351275
|
[6] |
BOLT
|
0.1650(lbs); 0.075
|
| 050. |
0451250120
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 060. |
0112351230
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 070. |
6780025450
|
[1] |
SHIELD PTO
|
3.9600(lbs); 1.800
|
| 080. |
0113351016
|
[4] |
BOLT
|
0.0374(lbs); 0.017
|
| 090. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 100. |
6780029313
|
[1] |
HITCH
|
13.4200(lbs); 6.100
|
| 110. |
0155451222
|
[3] |
STUD
|
0.0660(lbs); 0.030
|
| 120. |
0217650120
|
[3] |
NUT
|
0.0220(lbs); 0.010
|
| 130. |
0451250120
|
[3] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 140. |
0113351230
|
[4] |
BOLT
|
0.0880(lbs); 0.040
|
| 150. |
6780029320
|
[2] |
PIN HITCH
|
0.4400(lbs); 0.200
|
| 160. |
3115029730
|
[2] |
PIN SPRING
|
0.0968(lbs); 0.044
|
