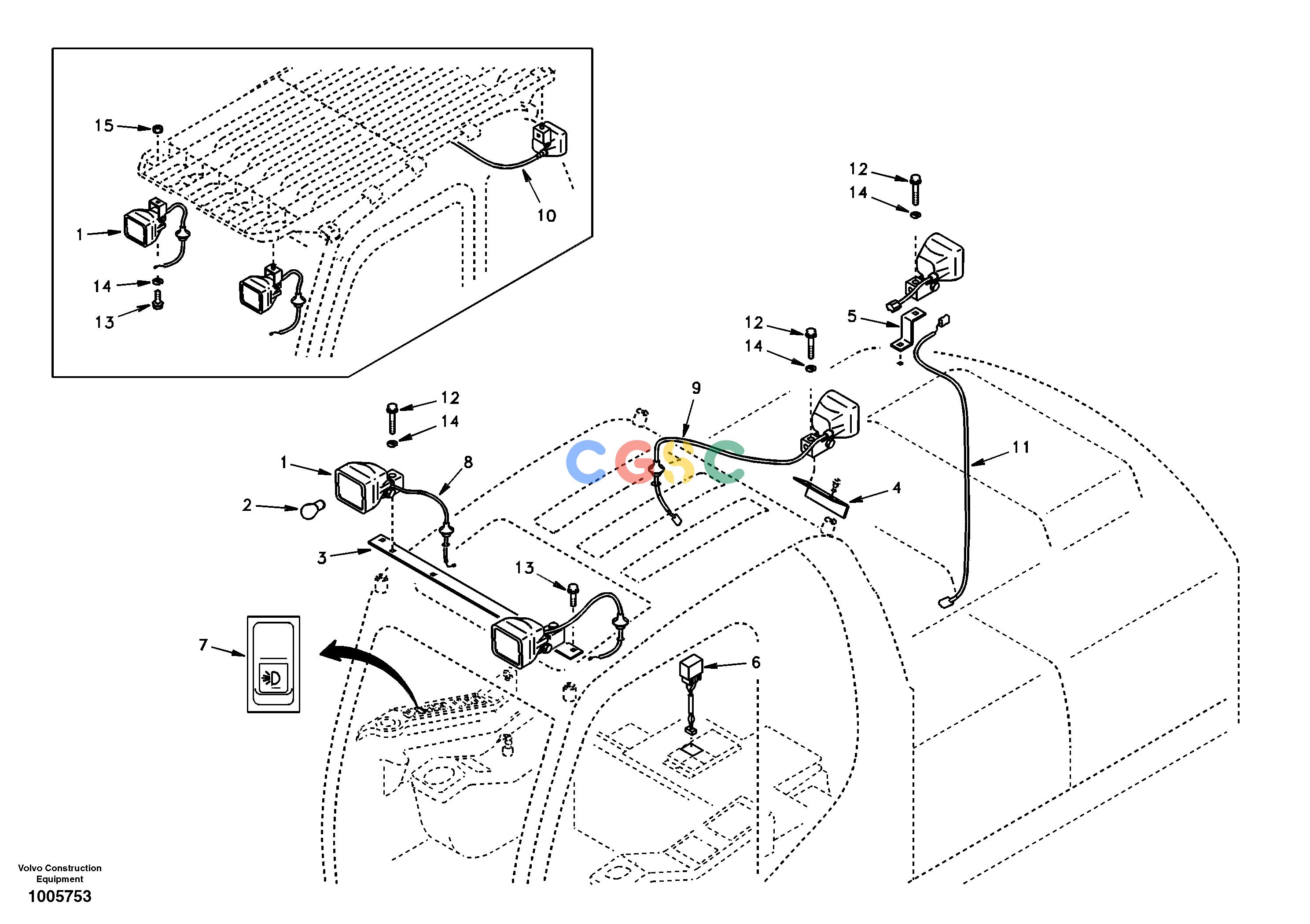

沃尔沃零件查询EC240 Work lights, extraNoneDE05A001-DE11C001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
304 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1122-04760
|
[4] |
Work lamp
|
SER NO 3001-3869
|
| |
VOE11039846
|
[4] |
Work lamp
|
SER NO 3870-
|
| 2. |
SA1122-01240
|
[1] |
Bulb
|
|
| 3. |
SA1122-04910
|
[1] |
Bracket
|
SER NO 3001-3869
|
| |
VOE14513067
|
[1] |
Bracket
|
SER NO 3870-
|
| 4. |
SA1122-04920
|
[1] |
Bracket
|
SER NO 3001-3869
|
| |
VOE14513058
|
[1] |
Bracket
|
SER NO 3870-
|
| 5. |
SA1122-04580
|
[1] |
Bracket
|
SER NO 3001-3869
|
| |
VOE14513059
|
[1] |
Bracket
|
SER NO 3870-
|
| 6. |
SA1123-01900
|
[1] |
Relay
|
|
| 7. |
VOE14529229
|
[1] |
Switch
|
|
| 8. |
SA1123-05130
|
[2] |
Wire harness
|
SER NO 3001-3869
|
| |
VOE14513053
|
[2] |
Wire harness
|
SER NO 3870-
|
| 9. |
SA1123-05160
|
[1] |
Wire harness
|
SER NO 3001-3869
|
| |
VOE14513057
|
[1] |
Wire harness
|
SER NO 3870-
|
| 10. |
VOE14504704
|
|
Wire harness
|
SER NO 3325-3869
FOPS ONLY
|
| |
VOE14513055
|
|
Wire harness
|
SER NO 3870-
|
| 11. |
VOE14504705
|
[1] |
Wire harness
|
SER NO 3325-3869
|
| |
VOE14513054
|
[1] |
Wire harness
|
SER NO 3870-
|
| 12. |
SA9041-21009
|
[4] |
Bolt
|
SER NO 3870-
|
| 13. |
VOE946441
|
[3] |
Flange screw
|
SER NO 3870-
|
| 14. |
SA9213-10000
|
[4] |
Spring washer
|
SER NO 3870-
|
| 15. |
SA9111-11000
|
|
Nut
|
SER NO 3870-
|
