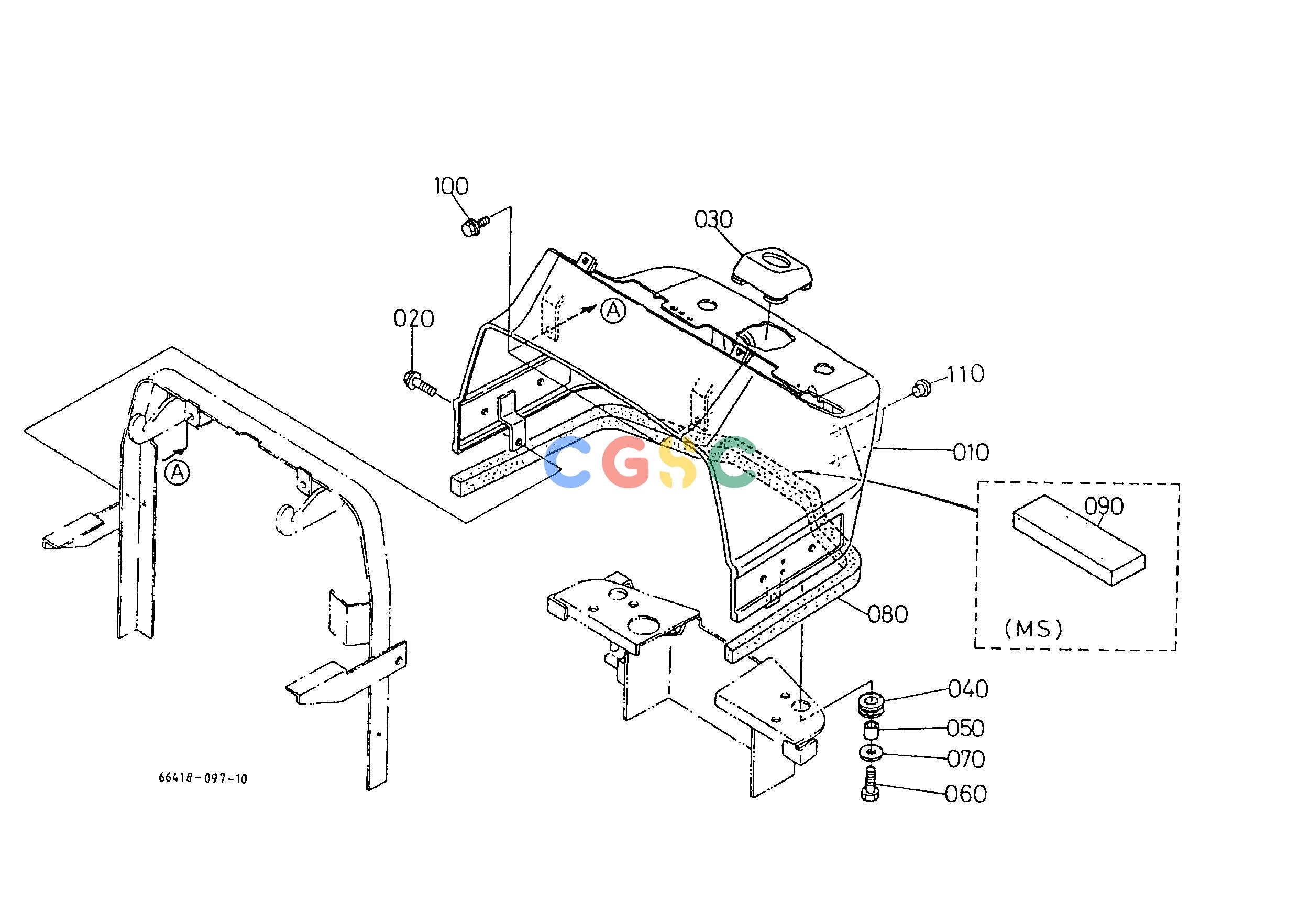

久保田零件查询T12300 HOOD (BONNET) COVER REAR HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641655113
|
[1] |
COVER BONNET REAR
|
0.0000(lbs); 0.000
|
| 010. |
6641655114
|
[1] |
COVER BONNET REAR
|
5.1040(lbs); 2.320
|
| 020. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 030. |
6641854950
|
[1] |
CAP POST
|
0.2200(lbs); 0.100
|
| 040. |
6636151680
|
[2] |
CUSHION
|
0.0220(lbs); 0.010
|
| 050. |
3730035140
|
[2] |
SPACER
|
0.0132(lbs); 0.006
|
| 060. |
0115360830
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 070. |
0401560080
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 080. |
6641654910
|
[1] |
BLOCK DUSTPROOF
|
0.0220(lbs); 0.010
|
| 090. |
6641851770
|
[1] |
BLOCK DUSTPROOF
|
0.0110(lbs); 0.005
|
| 100. |
0175450612
|
[2] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 110. |
3824029290
|
[2] |
PLUG
|
0.0022(lbs); 0.001
|
