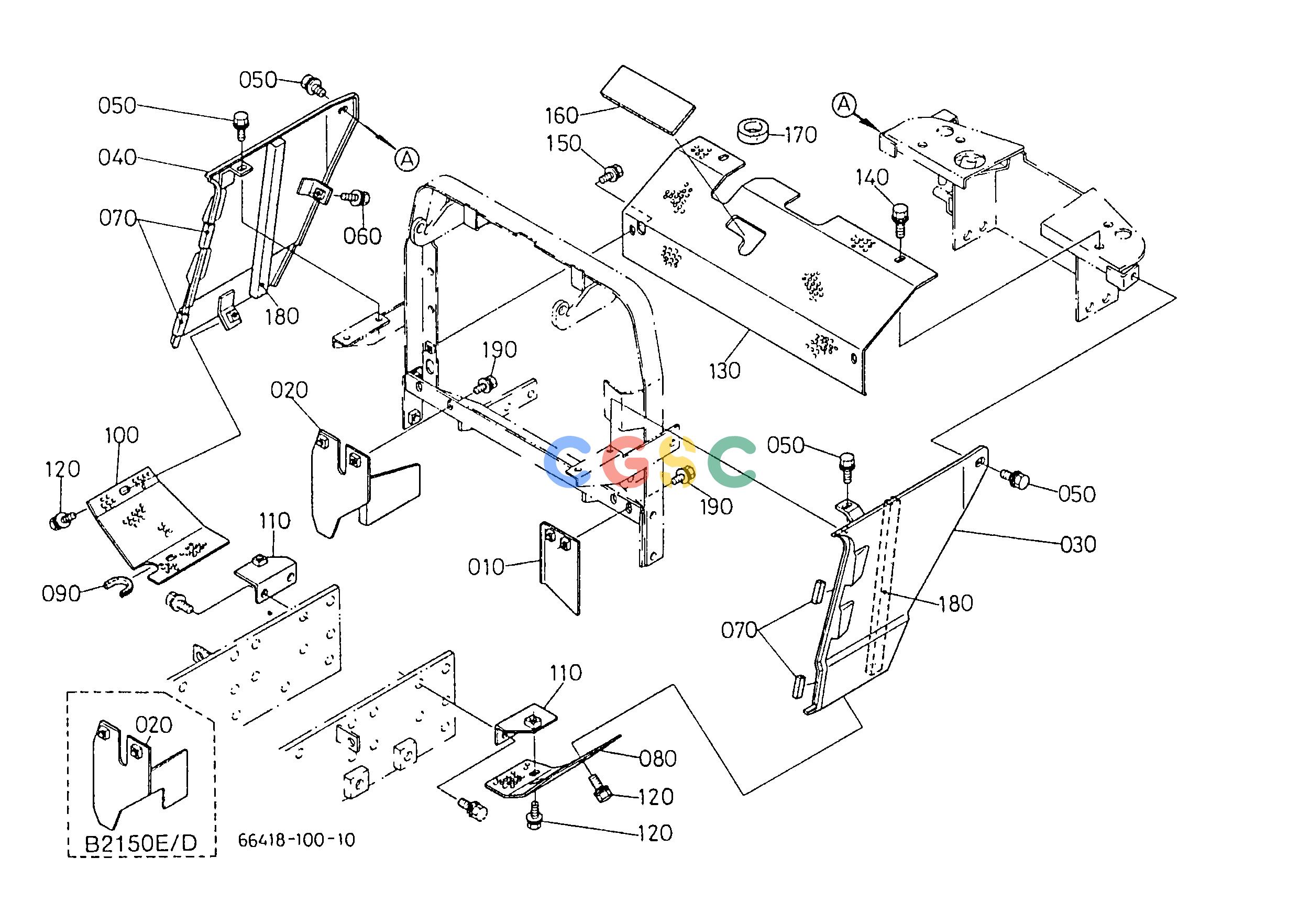

久保田零件查询T12600 DUST COVER HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
329 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641854610
|
[1] |
COVER DUSTPROOF LH
|
0.1320(lbs); 0.060
|
| 020. |
6641854620
|
[1] |
COVER DUST
|
0.5060(lbs); 0.230
|
| 030. |
6641851332
|
[1] |
AUX.COVER SIDE LH
|
0.9240(lbs); 0.420
|
| 040. |
6641851342
|
[1] |
AUX.COVER SIDE RH
|
0.9900(lbs); 0.450
|
| 050. |
0112550820
|
[4] |
BOLT
|
0.0308(lbs); 0.014
|
| 060. |
0102550620
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 070. |
3715013920
|
[4] |
CUSHION
|
0.0110(lbs); 0.005
|
| 080. |
6641854580
|
[1] |
NET DUSTPROOF LH
|
0.0880(lbs); 0.040
|
| 090. |
6641854650
|
[1] |
RUBBER PROTECTOR
|
0.0440(lbs); 0.020
|
| 100. |
6641854590
|
[1] |
NET DUSTPROOF RH
|
0.1100(lbs); 0.050
|
| 110. |
6641854630
|
[2] |
STAY DUSTPROOF NET
|
0.1100(lbs); 0.050
|
| 120. |
0112560816
|
[4] |
BOLT
|
0.0220(lbs); 0.010
|
| 130. |
6641854640
|
[1] |
NET DUSTPROOF REAR
|
0.4620(lbs); 0.210
|
| 140. |
0112560816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 150. |
0102550616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 160. |
6641854570
|
[1] |
TAPE DUSTPROOF
|
0.0110(lbs); 0.005
|
| 170. |
6715651680
|
[1] |
RING
|
0.0066(lbs); 0.003
|
| 180. |
6751154730
|
[2] |
SPONGE
|
0.0022(lbs); 0.001
|
| 190. |
0102550616
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
