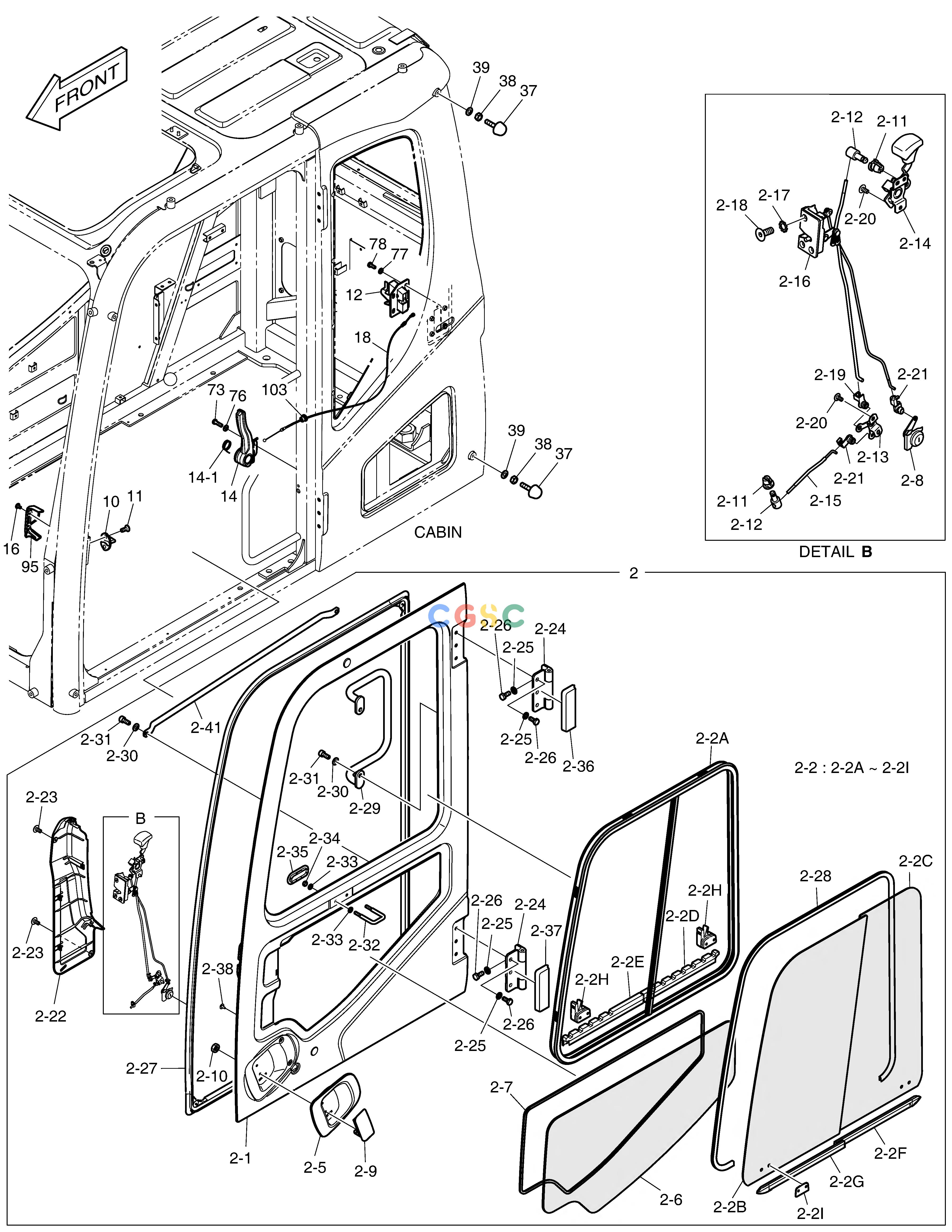

Pos.	Part No	Qty	Parts name
-.	220101-00892B	[1]
10.	2142-9005	[1]	STRIKER
103.	131009-00041	[1]
11.	2120-2150D1	[2]	BOLT
12.	100601-00060	[1]
14.	101101-00133C	[1]
14-1.	111603-00006	[1]
16.	2120-2166D53	[2]	. SCREW
18.	310302-00036C	[1]
2.	110982-00568B	[1]
2-1.	300427-00023C	[1]
2-10.	S4012333	[2]	NUT
2-11.	2124-1689A	[2]	. SNAP
2-12.	2123-2247	[2]	. PIN
2-13.	137-00092	[1]	. LINK,DOOR INNER
2-14.	133-00221	[1]	. LEVER ASSY,INNER HANDLE
2-15.	136-00055A	[1]	. ROD,OUTER HANDLE
2-16.	125-00072	[1]	. CATCH ASSY,DOOR INNER
2-17.	S5210303	[3]	. WASHER
2-18.	2120-2150D3	[3]	SCREW
2-19.	124-00344	[1]	. CLIP,ROD
2-2.	220109-00039A	[1]
2-20.	2120-2166D52	[5]	. BOLT
2-21.	124-00010	[2]	. CLIP,ROD
2-22.	220204-00186A	[1]
2-23.	2120-2166D53	[2]	. SCREW
2-24.	110927-00083A	[2]
2-25.	2114-1898D15	[12]	WASHER
2-26.	2120-2166D2	[12]	BOLT
2-27.	220214-00068A	[1]
2-28.	101588-00040	[1]
2-29.	220206-00002G	[1]
2-2A.	220109-00022	[1]
2-2B.	500119-00330	[1]
2-2C.	500119-00331	[1]
2-2D.	110922-00019B	[1]
2-2E.	110922-00213B	[1]
2-2F.	110922-00020A	[1]
2-2G.	110922-00535	[1]
2-2H.	101544-00014	[2]
2-2I.	101555-00096	[1]
2-30.	2114-1898D14	[4]	WASHER
2-31.	S2208861	[4]	BOLT
2-32.	101583-00073A	[1]
2-33.	2891-1311	[4]	. PLATE
2-34.	S4012533	[2]	NUT
2-35.	220204-00187A	[1]
2-36.	220204-00006B	[1]
2-37.	220204-00007B	[1]
2-38.	S3640333	[2]
2-41.	220206-00045A	[1]
2-5.	110508-00765A	[1]
2-6.	500119-00322	[1]
2-7.	180313-00169	[1]
2-8.	K1003900	[1]	KEY ASS'Y;DOOR
2-9.	110925-00020	[1]
37.	K1001260A	[2]	STOPPER
38.	2121-1311D4	[2]	NUT
39.	2114-1898D15	[2]	WASHER
73.	2120-2166D36	[2]	BOLT
76.	2114-1898D3	[2]	WASHER
77.	2114-1898D14	[4]	WASHER
78.	2120-2166D5	[4]	BOLT
95.	110508-00905B	[1]
