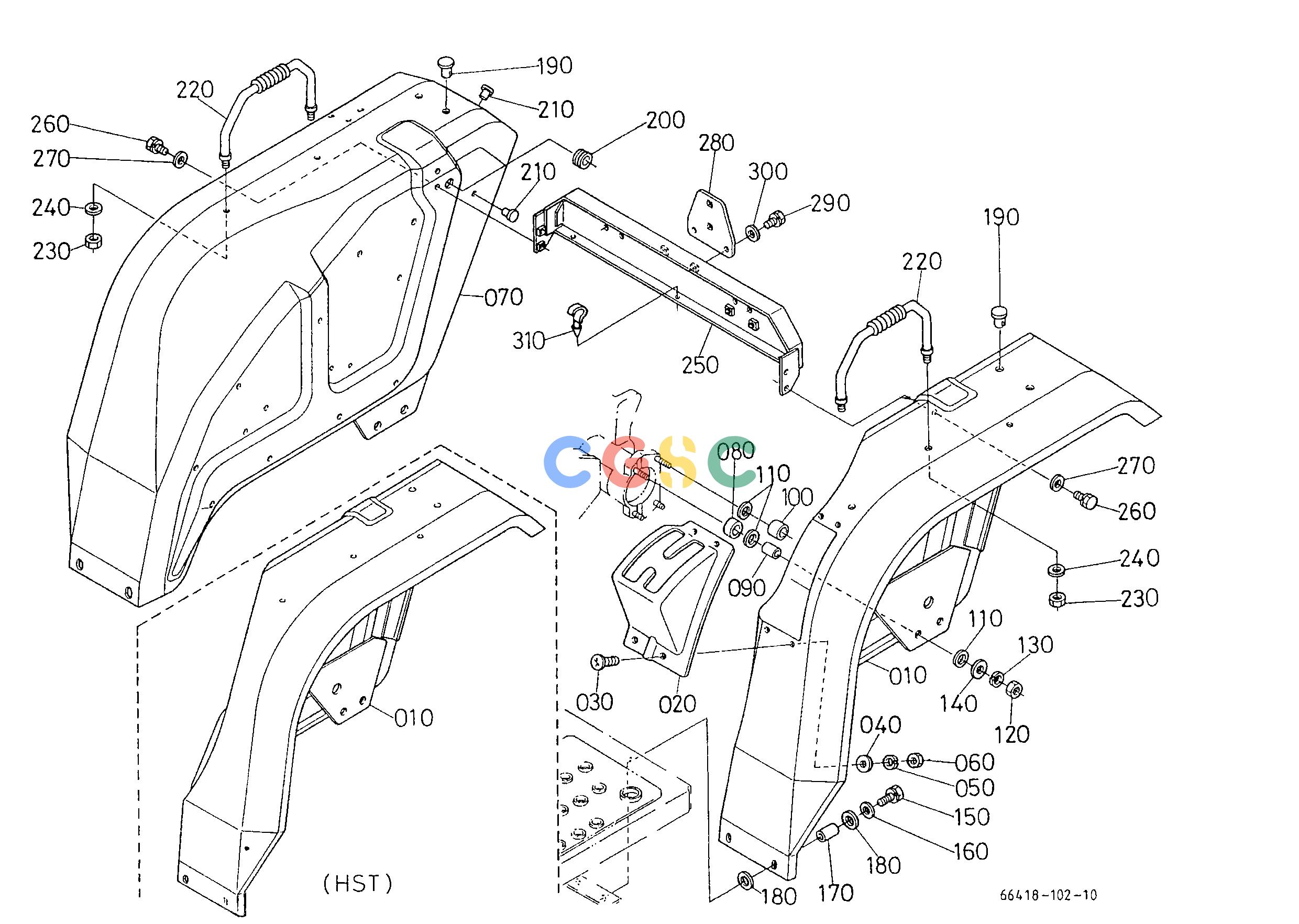

久保田零件查询T12800 FENDER HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
971 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641852310
|
[1] |
FENDER LH
|
15.5760(lbs); 7.080
|
| 010. |
6641852313
|
[1] |
FENDER LH
|
20.2400(lbs); 9.200
|
| 020. |
6641852130
|
[1] |
GUIDE MAIN SHIFT
|
1.5840(lbs); 0.720
|
| 030. |
0301750816
|
[4] |
SCREW CR-REC-BD-HD
|
0.0220(lbs); 0.010
|
| 040. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 050. |
0451260080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 060. |
0211450080
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
6641852290
|
[1] |
FENDER RH
|
17.6000(lbs); 8.000
|
| 070. |
6641852292
|
[1] |
FENDER RH
|
16.1040(lbs); 7.320
|
| 080. |
6780052140
|
[4] |
SPACER
|
0.0990(lbs); 0.045
|
| 090. |
6780052150
|
[4] |
COLLAR
|
0.0462(lbs); 0.021
|
| 100. |
6641852150
|
[2] |
COLLAR
|
0.0308(lbs); 0.014
|
| 110. |
6711152160
|
[8] |
CUSHION
|
0.0066(lbs); 0.003
|
| 120. |
0217450120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 130. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 140. |
0401560120
|
[4] |
WASHER PLAIN
|
0.0484(lbs); 0.022
|
| 150. |
0112350830
|
[4] |
BOLT
|
0.0330(lbs); 0.015
|
| 160. |
0401560080
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 170. |
3730035140
|
[4] |
SPACER
|
0.0132(lbs); 0.006
|
| 180. |
6711152160
|
[8] |
CUSHION
|
0.0066(lbs); 0.003
|
| 190. |
3824029290
|
[4] |
PLUG
|
0.0022(lbs); 0.001
|
| 200. |
3215029180
|
[2] |
CAP RUBBER
|
0.0044(lbs); 0.002
|
| 210. |
3824029570
|
[9] |
PLUG
|
0.0022(lbs); 0.001
|
| 220. |
6641852210
|
[2] |
HANDRAIL
|
0.4180(lbs); 0.190
|
| 220. |
3467029440
|
[2] |
HANDRAIL
|
0.3630(lbs); 0.165
|
| 230. |
0112360816
|
[4] |
BOLT
|
0.0220(lbs); 0.010
|
| 230. |
0217450140
|
[4] |
NUT
|
0.0308(lbs); 0.014
|
| 240. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 240. |
0401360140
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 250. |
6641852250
|
[1] |
STAY FENDER
|
0.0000(lbs); 0.000
|
| 250. |
6641852253
|
[1] |
STAY FENDER
|
3.0800(lbs); 1.400
|
| 260. |
0112360816
|
[4] |
BOLT
|
0.0220(lbs); 0.010
|
| 270. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 280. |
6641854970
|
[1] |
BRACKET SMV
|
0.4356(lbs); 0.198
|
| 290. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 300. |
0401360060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 310. |
6636151180
|
[3] |
CLAMP CORD
|
0.0022(lbs); 0.001
|
| 310. |
3824012310
|
[3] |
CLAMP CORD
|
0.0110(lbs); 0.005
|
