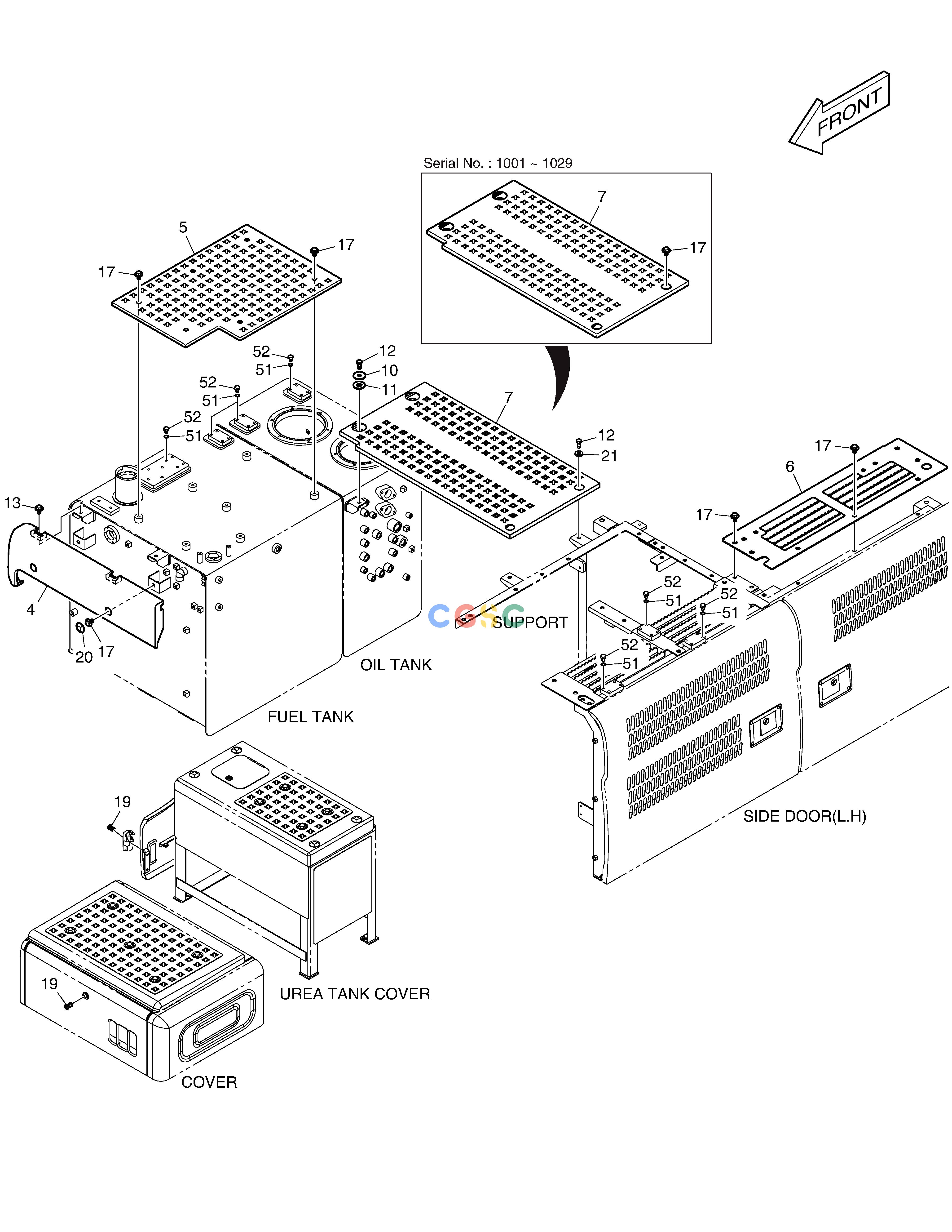

斗山零件查询COVER DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
949 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-11233
|
[-] |
|
|
| 10. |
114-00529
|
[2] |
SPACER
|
|
| 11. |
K1002943
|
[2] |
RUBBER
|
|
| 12. |
S0515266
|
[2] |
BOLT
|
|
| 12. |
S0515266
|
[4] |
BOLT
|
|
| 13. |
DS0025014
|
[2] |
BOLT
|
|
| 17. |
DS0025015
|
[18] |
BOLT
|
|
| 17. |
DS0025015
|
[16] |
BOLT
|
|
| 19. |
K1004630
|
[2] |
CYLINDER;KEY
|
|
| 20. |
110910-01054
|
[2] |
|
|
| 21. |
120810-00100
|
[2] |
|
|
| 4. |
110508-17075A
|
[1] |
|
|
| 5. |
110508-11234C
|
[1] |
|
|
| 51. |
DS0401164
|
[28] |
|
|
| 52. |
S0514666
|
[28] |
BOLT
|
|
| 6. |
110508-16744
|
[1] |
|
|
| 7. |
110508-11235B
|
[1] |
|
110508-11235C
|
| 7. |
110508-11235C
|
[1] |
|
|
