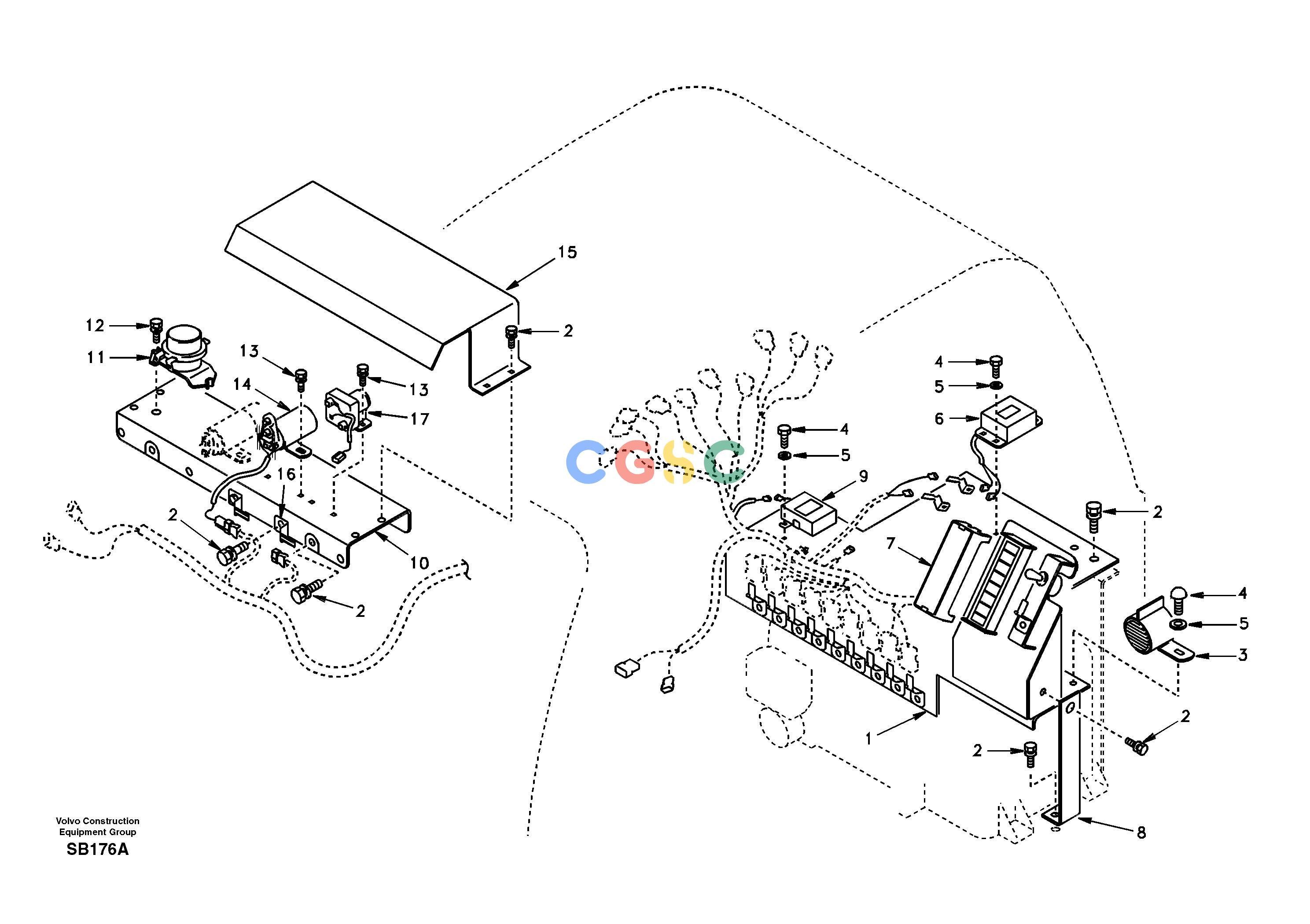

沃尔沃零件查询EC240 Electrical distribution boxNoneDE00A001-DE04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1123-04900
|
[1] |
Bracket
|
|
| 2. |
SA9041-11003
|
[13] |
Bolt
|
|
| 3. |
SA1123-05140
|
[1] |
Buzzer
|
|
| 4. |
VOE14880562
|
[6] |
Cross recessed screw
|
|
| 5. |
VOE955892
|
[6] |
Plain washer
|
|
| 6. |
VOE14529144
|
[1] |
Control unit
|
WIPER
|
| 7. |
SA1123-04960
|
[1] |
Cover
|
FUSE BOX
|
| 8. |
VOE14529182
|
[1] |
Bracket
|
|
| 9. |
SA1023-05071
|
|
Control Unit
|
PREHEATER
|
| 10. |
SA1122-03990
|
[1] |
Bracket
|
|
| 11. |
SA1021-00910
|
[1] |
Relay
|
|
| 12. |
SA9041-10805
|
[1] |
Bolt
|
|
| 13. |
SA9041-10604
|
[4] |
Bolt
|
|
| 14. |
VOE14529088
|
|
Relay
|
PREHEATER
|
| 15. |
VOE14529105
|
[1] |
Cover
|
|
| 16. |
SA9392-10130
|
|
Clip
|
|
| 17. |
SA1122-01910
|
[1] |
Relay
|
|
