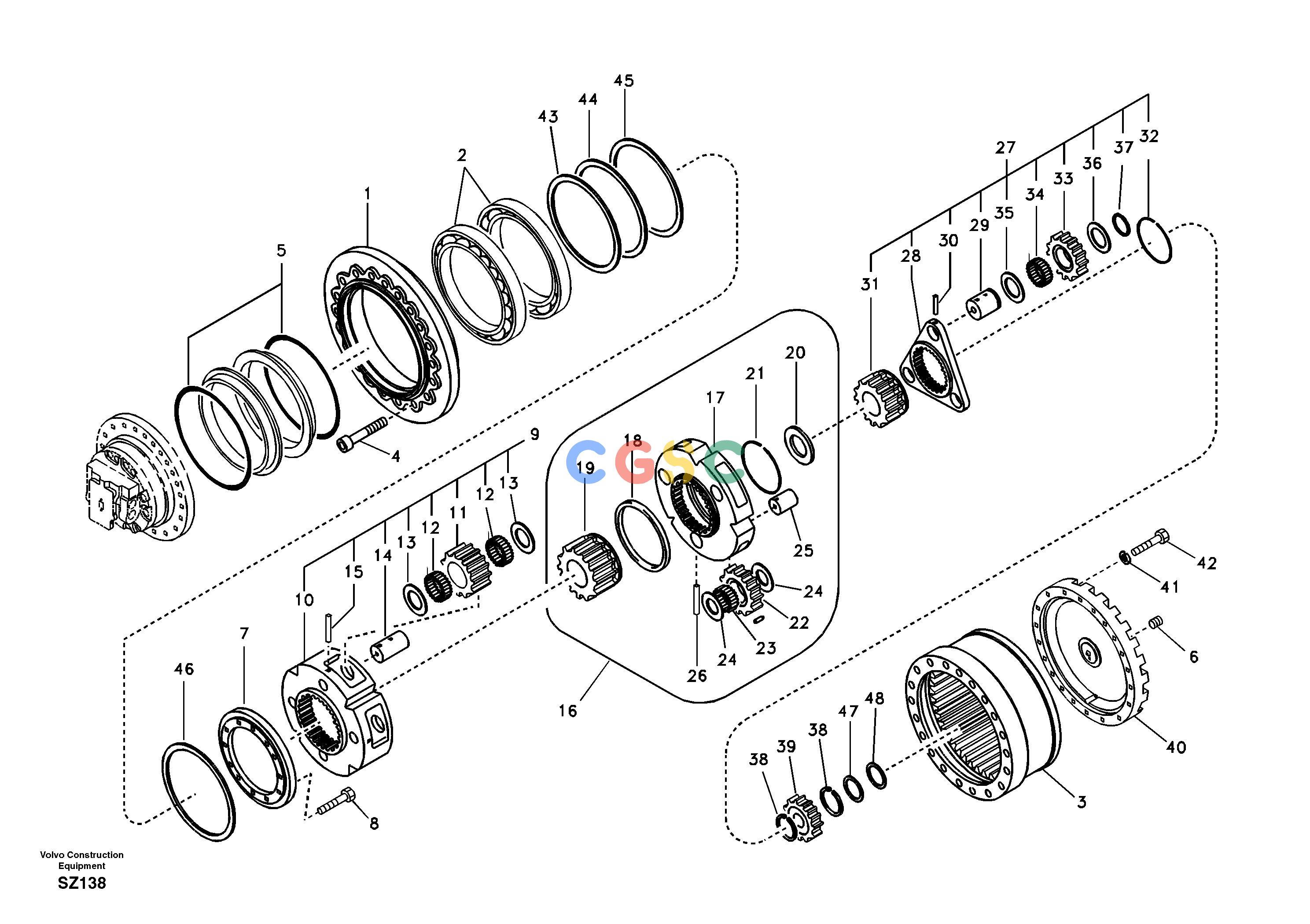

沃尔沃零件查询EC240 Travel gearboxNoneDE16F001-DE16F002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
311 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA7117-34050
|
[1] |
Travel Gearbox
|
|
| 1. |
SA7117-34100
|
[1] |
Housing
|
|
| 2. |
SA7117-34110
|
[2] |
Bearing
|
|
| 3. |
SA7117-34120
|
[1] |
Ring gear
|
|
| 4. |
SA9016-21818
|
[20] |
Hex. socket screw
|
|
| 5. |
SA7117-34130
|
[1] |
Seal
|
|
| 6. |
SA9415-43042
|
[3] |
Plug
|
|
| 7. |
SA7117-34190
|
[1] |
Retainer
|
|
| 8. |
VOE9011-11206
|
[12] |
Screw
|
|
| 9. |
SA7117-34200
|
[1] |
Planet carrier
|
|
| 10. |
SA7117-34210
|
[1] |
Carrier
|
|
| 11. |
SA7117-34220
|
[4] |
Planetary gear
|
|
| 12. |
SA7117-34230
|
[8] |
Needle bearing
|
|
| 13. |
SA7117-34240
|
[8] |
Washer
|
|
| 14. |
SA7117-34250
|
[4] |
Pin
|
|
| 15. |
VOE13951991
|
[4] |
Spring pin
|
|
| 16. |
SA7117-34260
|
[1] |
Carrier
|
|
| 17. |
SA7117-34270
|
[1] |
Carrier
|
|
| 18. |
SA1036-00310
|
[1] |
Thrust ring
|
|
| 19. |
SA7117-34280
|
[1] |
Gear
|
|
| 20. |
SA1036-00300
|
[1] |
Ring
|
|
| 21. |
SA7117-34290
|
[1] |
Retaining ring
|
|
| 22. |
SA7117-34300
|
[3] |
Planetary gear
|
|
| 23. |
SA7117-34310
|
[3] |
Needle bearing
|
|
| 24. |
VOE14556491
|
[6] |
Washer
|
|
| 25. |
SA7117-34330
|
[3] |
Pin
|
|
| 26. |
SA9325-06012
|
[3] |
Spring pin
|
|
| 27. |
SA7117-34340
|
[1] |
Planet carrier
|
|
| 28. |
SA7117-34350
|
[1] |
Planet carrier
|
|
| 29. |
SA7117-34370
|
[3] |
Pin
|
|
| 30. |
SA9325-06012
|
[3] |
Spring pin
|
|
| 31. |
SA7117-34360
|
[1] |
Gear
|
|
| 32. |
SA7117-34440
|
[1] |
Retaining ring
|
|
| 33. |
SA7117-34420
|
[3] |
Planetary gear
|
|
| 34. |
SA7117-34380
|
[3] |
Needle bearing
|
|
| 35. |
SA7117-34390
|
[3] |
Washer
|
|
| 36. |
SA7117-34400
|
[3] |
Washer
|
|
| 37. |
SA9541-01034
|
[3] |
Retaining ring
|
|
| 38. |
SA1036-00290
|
[2] |
Thrust ring
|
|
| 39. |
SA7117-34430
|
[1] |
Gear
|
|
| 40. |
SA7117-34410
|
[1] |
Cover
|
|
| 41. |
VOE9213-10000
|
[16] |
Spring Washer
|
|
| 42. |
VOE993025
|
[16] |
Hexagon screw
|
|
| 43. |
SA7117-34140
|
[1] |
Shim
|
0.1t
|
| 44. |
SA7117-34150
|
[1] |
Shim
|
0.3t
|
| 45. |
SA7117-34160
|
[1] |
Shim
|
0.5t
|
| 46. |
SA7117-34170
|
[1] |
Shim
|
1.0t
|
| 47. |
SA1036-00450
|
[1] |
Shim
|
|
| 48. |
SA1036-00460
|
[1] |
Shim
|
|
