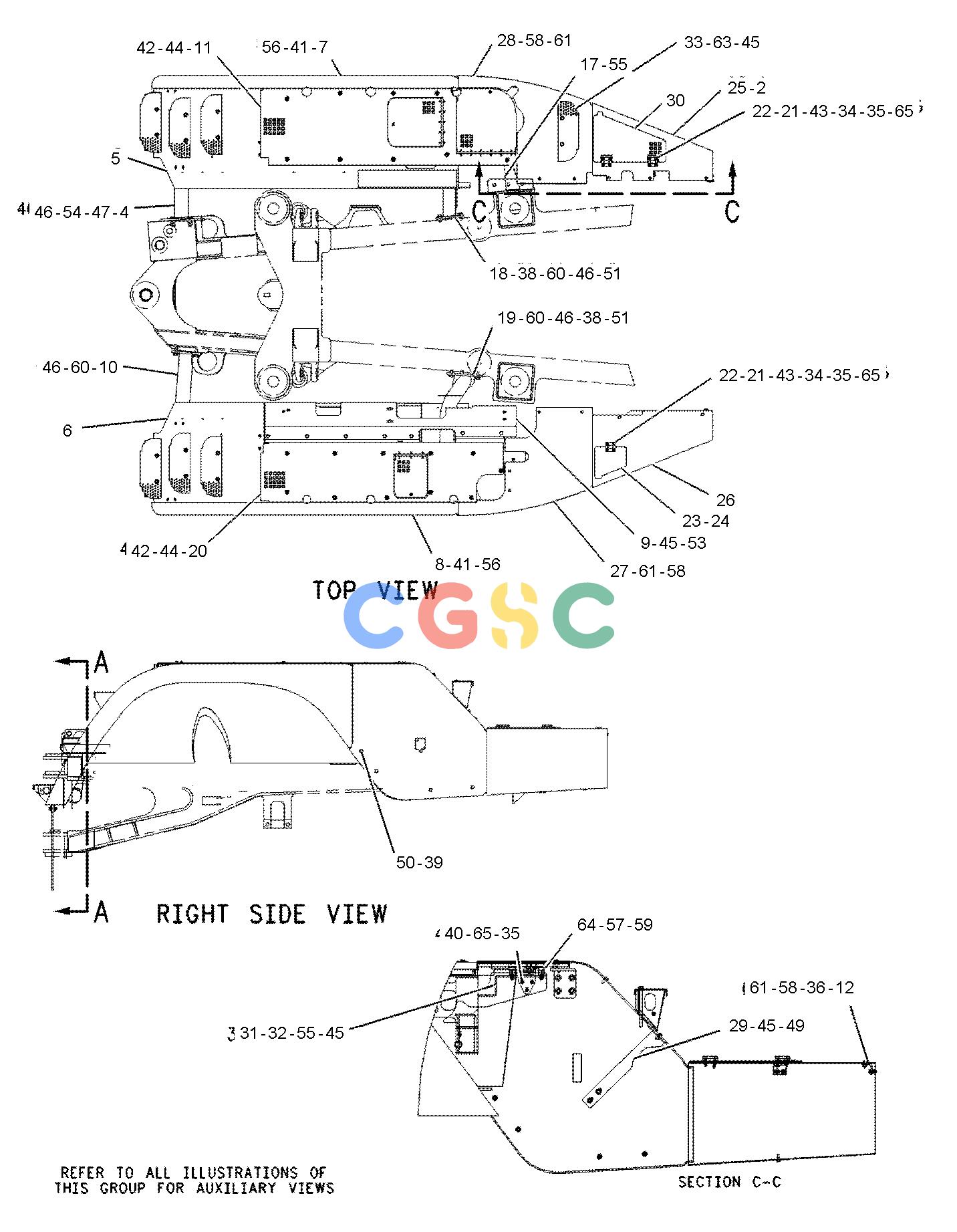

卡特零件查询（725） 147-6831: FENDER & SUPPORT GP
广数供应链运营团队, 14 02月, 2025，浏览：
361 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5U-4229 | [3] | LATCH | |
| 2. | 6U-5960 | [6] | GROMMET | |
| 3. | 091-0081 | [8] | SPACER(10.5X20X10-MM THK) | |
| 4. | 162-7413 | [1] | SUPPORT AS | |
| 5. | 167-3784 | [1] | FENDER AS(LH) | |
| | 197-0406 | [1] | STEP AS | |
| | 199-7960 | [2] | STEP AS | |
| 6. | 167-3785 | [1] | FENDER AS(RH) | |
| | 197-0406 | [1] | STEP AS | |
| | 199-7960 | [2] | STEP AS | |
| 7. | 171-7106 | [1] | COVER-FENDER | |
| 8. | 171-7122 | [1] | COVER-FENDER | |
| 9. | 171-7138Y | [1] | PANEL GP-FENDER | |
| 10. | 171-7142 | [1] | SUPPORT AS | |
| 11. | 171-7145 | [1] | PLATE AS | |
| | 171-7143 | [1] | HINGE AS | |
| | 2N-2258 | [22] | RIVET-POP | |
| 12. | 178-7385 | [3] | BRACKET AS | |
| 13. | 185-3790 | [1] | SUPPORT | |
| 14. | 185-3792 | [1] | SUPPORT | |
| 15. | 185-3794 | [2] | DEFLECTOR | |
| 16. | 185-3795 | [2] | PLATE | |
| 17. | 186-2391 | [1] | BRACKET AS | |
| 18. | 186-4792 | [1] | SUPPORT AS(LH) | |
| 19. | 186-4799 | [1] | SUPPORT AS(RH) | |
| 20. | 187-3419 | [1] | PLATE AS | |
| | 2N-2258 | [6] | RIVET-POP | |
| | 187-2709 | [1] | HINGE AS | |
| 21. | 189-0599 | [6] | PLATE | |
| 22. | 189-0602 | [3] | HINGE AS | |
| 23. | 189-1516 | [1] | PLATE | |
| 24. | 189-2910 | [1] | GASKET-RUBBER | |
| 25. | 190-8678 | [1] | COVER(LH) | |
| 26. | 190-8680 | [1] | COVER(RH) | |
| 27. | 192-4606 | [1] | COVER-HYDRAULIC TANK(RH) | |
| 28. | 192-4607 | [1] | COVER-HYDRAULIC TANK(LH) | |
| 29. | 193-0204 | [1] | BRACKET AS | |
| 30. | 193-2126 | [1] | COVER AS | |
| 31. | 195-2784 | [1] | BRACKET AS | |
| 32. | 195-2788 | [1] | PLATE | |
| 33. | 198-1720 | [1] | STEP AS | |
| 34. | 119-5025M | [6] | SCREW-FLAT HEAD(M6X1X25-MM) | |
| 35. | 5C-2890M | [15] | NUT(M6X1-THD) | |
| 36. | 5C-7261M | [10] | NUT(M8X1.25-THD) | |
| 37. | 5C-9553M | [6] | BOLT(M6X1X16-MM) | |
| 38. | 5P-1076 | [7] | WASHER-HARD(13.5X30X4-MM THK) | |
| 39. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 40. | 6V-7357M | [3] | BOLT(M6X1X25-MM) | |
| 41. | 7X-0579 | [10] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 42. | 7X-7729 | [40] | WASHER(11X25X3-MM THK) | |
| 43. | 8C-6802M | [6] | SCREW-FLAT HEAD(M6X1X3.72-MM) | |
| 44. | 8C-8585M | [20] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 45. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 46. | 8T-4122 | [20] | WASHER-HARD(17X32X3.5-MM THK) | |
| 47. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 48. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 49. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 50. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 51. | 8T-4139M | [7] | BOLT(M12X1.75X30-MM) | |
| 52. | 8T-4186M | [8] | BOLT(M10X1.5X40-MM) | |
| 53. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 54. | 8T-4193M | [4] | BOLT(M16X2X50-MM) | |
| 55. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 56. | 8T-4199M | [10] | BOLT(M8X1.25X12-MM) | |
| 57. | 8T-4223 | [20] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 58. | 8T-4224 | [30] | WASHER-HARD(8.8X16X2-MM THK) | |
| 59. | 8T-4244M | [12] | NUT(M12X1.75-THD) | |
| 60. | 8T-4779M | [12] | BOLT(M16X2X35-MM) | |
| 61. | 8T-4908M | [20] | BOLT(M8X1.25X25-MM) | |
| 62. | 8T-4956M | [8] | BOLT(M12X1.75X35-MM) | |
| 63. | 8T-6408M | [2] | BOLT(M10X1.5X160-MM) | |
| 64. | 8T-7811M | [2] | BOLT-SOCKET HEAD(M12X1.75X50-MM) | |
| 65. | 9X-8256 | [24] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
