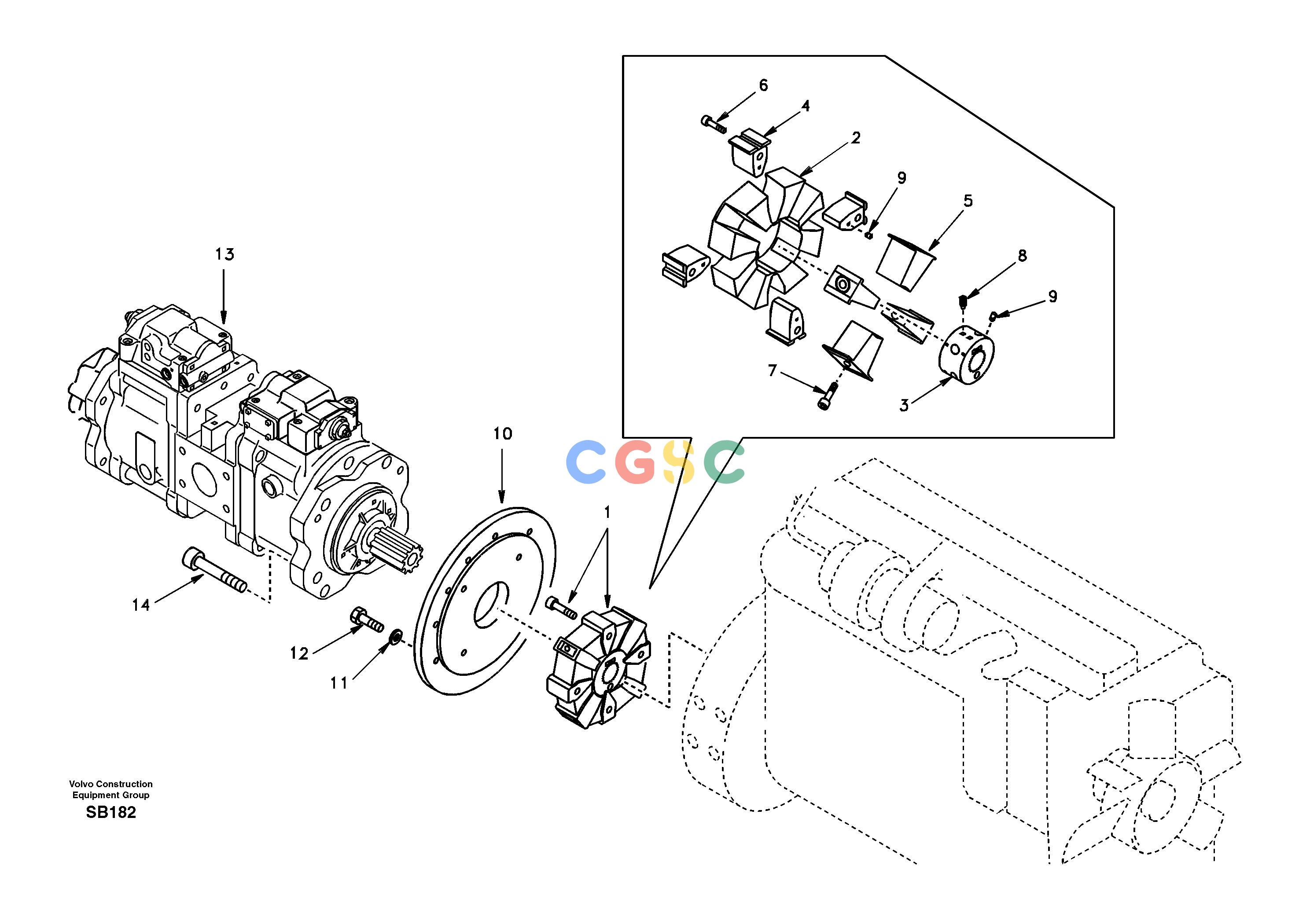

沃尔沃零件查询EC240 Pump gearbox with assembling partsNonePRODUCTION-AFTERMARKETNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
926 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14500140
|
[1] |
Clutch
|
|
| 1. |
VOE14515827
|
|
Flexible coupling
|
|
| 2. |
VOE14500141
|
[1] |
Element
|
|
| 2. |
VOE14515828
|
|
Filter element
|
|
| 3. |
VOE14500142
|
[1] |
Hub
|
|
| 3. |
VOE14515829
|
|
Hub
|
|
| 4. |
VOE14500143
|
[4] |
Insert
|
|
| 4. |
VOE14515830
|
|
Insert
|
|
| 5. |
VOE14500144
|
[4] |
Insert
|
|
| 5. |
VOE14515831
|
|
Insert
|
|
| 6. |
VOE14500145
|
[4] |
Bolt
|
|
| 7. |
VOE14500146
|
[4] |
Bolt
|
|
| 8. |
VOE14500147
|
[2] |
Bolt
|
|
| 9. |
VOE14500148
|
[12] |
Pin
|
|
| 10. |
VOE14530994
|
[1] |
Flange
|
|
| 11. |
SA9213-10000
|
[10] |
Spring washer
|
|
| 12. |
VOE993025
|
[10] |
Hexagon screw
|
|
| 13. |
SA1142-00531
|
[1] |
Pump
|
|
| 14. |
SA9016-12010
|
[4] |
Hex. socket screw
|
|
