纽荷兰零件查询(D150C WT/LGP) - CRAWLER DOZER - TIER 4A (10/13-) (10.254.AD[01]) - SCR EXHAUST SYSTEM 12L New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
406 次

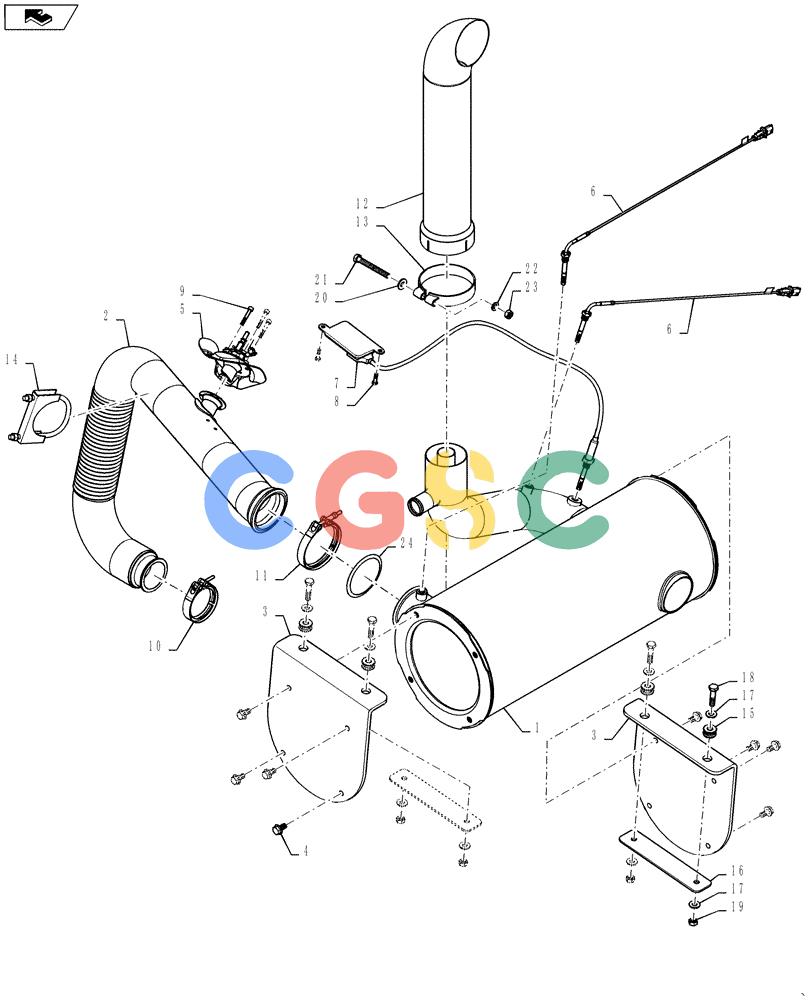

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84361381 | [1] | MUFFLER,Aspirated | BURSCR 12L |
| 2. | 84580223 | [1] | EXHAUST SYSTEM PIPE | BURSCR |
| 3. | 84387095 | [2] | BRACKET | BURSCR Mounting |
| 4. | 87698835 | [8] | FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9 | GIFlange, M10 x 20 Full 10.9 |
| 5. | 84247021 | [1] | MODULE,Dosing Injector | RACDenox 2 Urea Dosing - 6KG/H Superseded by part number: 47511724 |
| 5. | 84247021R | [1] | REMAN-MODULE ,Dosing Injector | RACReman for New PN 84247021 |
| . . | 84247021C | [1] | CORE-MODULE,Dosing Injector | RACReturn Number |
| 6. | 87482353 | [2] | SENSOR | GITemperature Superseded by part number: 47478880 |
| 7. | 84414466 | [1] | SENSOR | BASNOX Assembly |
| 8. | 9804256 | [2] | BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8 | NH |
| 9. | 84233542 | [3] | HEX SOC SCREW | BRRM6 x 40 12.9 |
| 10. | 84460193 | [1] | CLAMP,81mm - 84mm | ZED |
| 11. | 84417992 | [1] | CLAMP | FARHose, V-Brand Muffler |
| 13. | R27699 | [1] | CLAMP,114.3mm | CASExhaust Stack |
| 14. | BN2400371 | [1] | CLAMP | BNMuffler 657-312 |
| 15. | 434177A1 | [4] | ISOLATOR | CAS Superseded by part number: 86630020 |
| 16. | 84387092 | [2] | MOUNTING PLATE | BUR |
| 17. | 87655046 | [8] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BURM10 x 10.65 x 23.0 x 2.2 Hts Boron |
| 18. | 86508618 | [4] | BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9 | BEL |
| 19. | 86500689 | [4] | NUT,M10, Cl 10 | NH |
| 20. | 896-15010 | [1] | WASHER,11mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86639325 |
| 21. | 614-10090 | [1] | BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd | CAS Superseded by part number: 538885 |
| 22. | 892-11010 | [1] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 23. | 829-1410 | [1] | NUT,M10 x 1.5, Cl 10.9 | CAS Superseded by part number: 86500689 |
| 24. | 84348631 | [1] | SEAL | BAS Superseded by part number: 84468103 |
