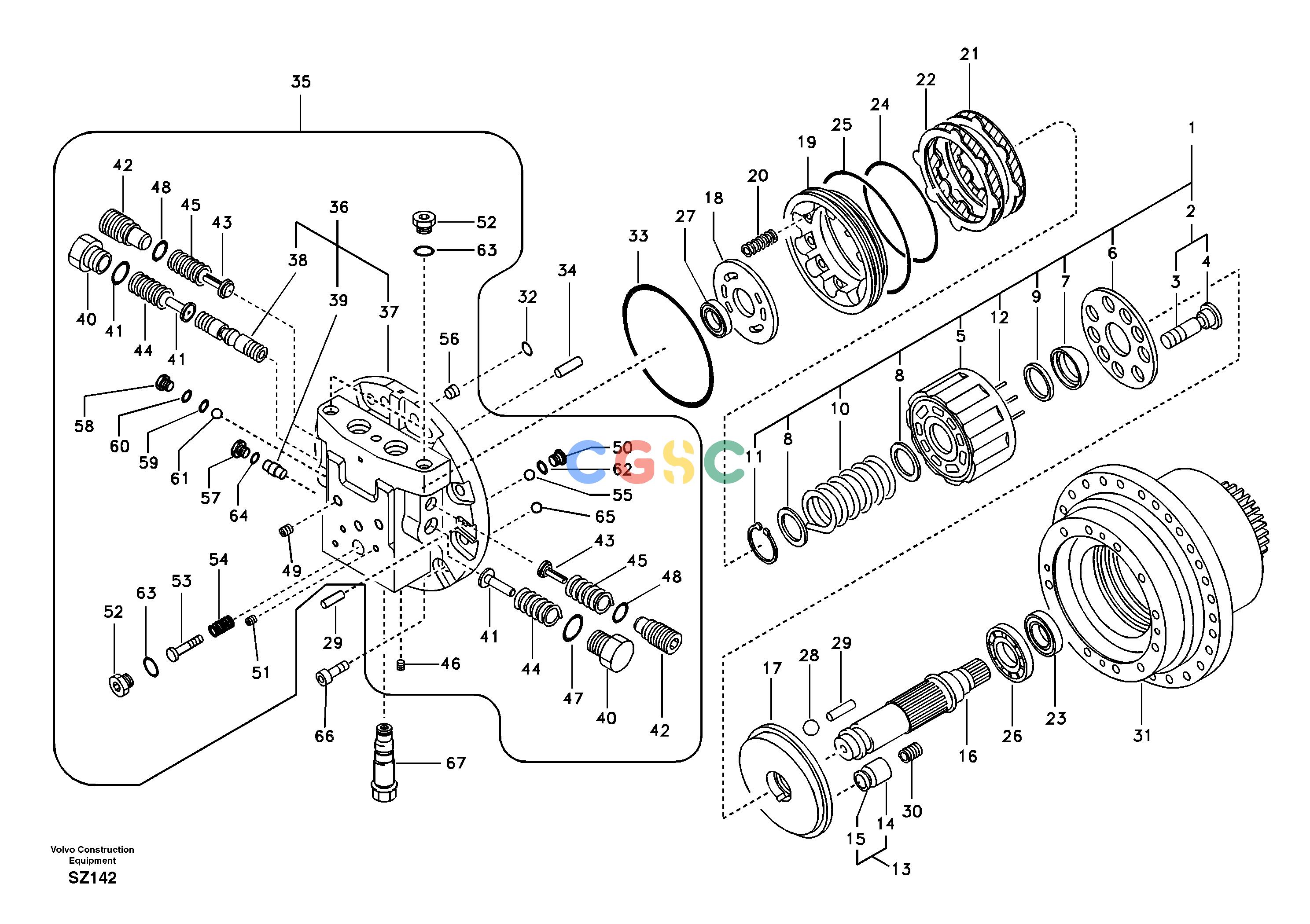

沃尔沃零件查询EC240 Travel motorNoneDE16F001-DE16F002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
811 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA1143-00111
|
[1] |
Travel motor
|
|
| 1. |
SA8230-21631
|
[1] |
Cylinder
|
|
| 2. |
SA8230-28900
|
[9] |
Piston
|
|
| 3. |
SA14500075
|
[1] |
Piston
|
|
| 4. |
SA14500076
|
[1] |
Seat
|
|
| 5. |
SA8230-28890
|
[1] |
Block
|
|
| 6. |
SA8230-21530
|
[1] |
Plate
|
|
| 7. |
SA8230-21540
|
[1] |
Ball
|
|
| 8. |
SA8230-31160
|
[2] |
Washer
|
|
| 9. |
SA8230-21560
|
[1] |
Washer
|
|
| 10. |
SA8230-21570
|
[1] |
Spring
|
|
| 11. |
SA14500077
|
[1] |
Ring
|
|
| 12. |
SA14500078
|
[5] |
Bearing
|
|
| 13. |
SA8230-15140
|
[1] |
Piston
|
|
| 14. |
SA14500079
|
[1] |
Piston
|
|
| 15. |
SA14500080
|
[1] |
Seat
|
|
| 16. |
SA14504883
|
[1] |
Shaft
|
|
| 17. |
SA8230-21520
|
[1] |
Protecting plate
|
|
| 18. |
SA8230-21550
|
[1] |
Protecting plate
|
|
| 19. |
SA8230-21650
|
[1] |
Piston
|
|
| 20. |
SA8230-21660
|
[12] |
Spring
|
|
| 21. |
SA8230-21670
|
[2] |
Friction plate
|
|
| 22. |
SA8230-03560
|
[2] |
Plate
|
|
| 23. |
VOE14621703
|
[1] |
Seal
|
|
| 24. |
VOE990656
|
[1] |
O-ring
|
|
| 25. |
VOE990660
|
[1] |
O-ring
|
|
| 26. |
VOE14551534
|
[1] |
Ball bearing
|
|
| 27. |
VOE14531426
|
[1] |
Bearing
|
|
| 28. |
SA8230-21600
|
[2] |
Support
|
|
| 29. |
SA8230-21610
|
[4] |
Pin
|
|
| 30. |
SA8230-15150
|
[1] |
Spring
|
|
| 31. |
SA8230-21800
|
[1] |
Spindle
|
|
| 32. |
VOE983495
|
[2] |
O-ring
|
|
| 33. |
VOE960259
|
[1] |
O-ring
|
|
| 34. |
SA8220-13340
|
[1] |
Pin
|
|
| 35. |
VOE14500083
|
[1] |
Flange
|
|
| 36. |
|
[1] |
Flange
|
|
| 37. |
SA14500084
|
[1] |
Flange
|
|
| 38. |
SA14500085
|
[1] |
Slide
|
|
| 39. |
SA14500086
|
[1] |
Piston
|
|
| 40. |
SA8230-02710
|
[2] |
Plug
|
|
| 41. |
SA8230-21700
|
[2] |
Stop
|
|
| 42. |
SA8230-03590
|
[2] |
Plug
|
|
| 43. |
SA8230-03600
|
[2] |
Non-return valve
|
|
| 44. |
SA8230-02760
|
[2] |
Spring
|
|
| 45. |
SA8230-03610
|
[2] |
Spring
|
|
| 46. |
SA8220-14930
|
[4] |
Plug
|
|
| 47. |
VOE990607
|
[2] |
O-ring
|
|
| 48. |
VOE983523
|
[2] |
O-ring
|
|
| 49. |
SA8230-30410
|
[2] |
Plug
|
|
| 50. |
VOE14573795
|
[2] |
Plug
|
|
| 51. |
SA8220-14920
|
[8] |
Plug
|
|
| 52. |
VOE14573793
|
[2] |
Plug
|
|
| 53. |
SA8230-21710
|
[1] |
Coil
|
|
| 54. |
VOE14500087
|
[1] |
Spring
|
|
| 55. |
SA9676-38000
|
[2] |
Ball
|
|
| 56. |
VOE14617170
|
[1] |
Filter
|
|
| 57. |
SA8230-23140
|
[2] |
Plug
|
|
| 58. |
SA8230-21890
|
[2] |
Plug
|
|
| 59. |
VOE990551
|
[2] |
O-ring
|
|
| 60. |
VOE983495
|
[2] |
O-ring
|
|
| 61. |
VOE14500088
|
[2] |
Ball
|
|
| 62. |
VOE983502
|
[2] |
O-ring
|
|
| 63. |
VOE990557
|
[2] |
O-ring
|
|
| 64. |
VOE983505
|
[2] |
O-ring
|
|
| 65. |
SA8230-27130
|
[1] |
Orifice
|
|
| 66. |
SA8240-03170
|
[12] |
Bolt
|
|
| 67. |
SA8230-21640
|
[1] |
Relief valve
|
|
| 100. |
VOE14553290
|
[1] |
Sealing ring
|
|
