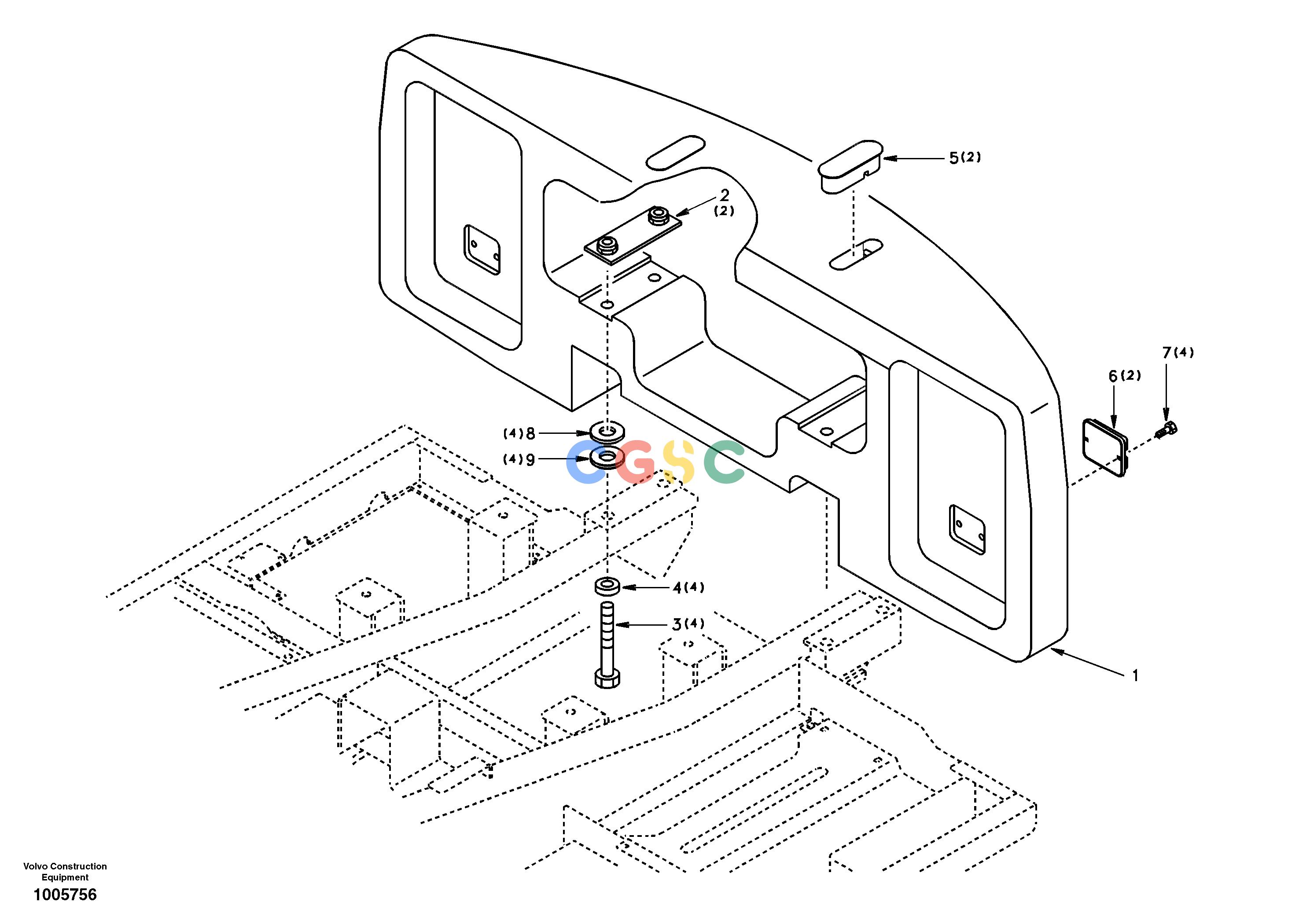

沃尔沃零件查询EC240 CounterweightsNoneDE13A001-DE13A003NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
654 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1153-00720
|
[1] |
Counterweight
|
|
| |
SA1153-00730
|
|
Counterweight
|
|
| |
SA1153-00740
|
|
Counterweight
|
|
| 2. |
VOE1053-00331
|
[2] |
Plate
|
SER NO 3001-3804
|
| |
VOE14510805
|
[2] |
Plate
|
SER NO 3805-
|
| 3. |
SA1053-00361
|
[4] |
Hexagon screw
|
|
| 4. |
SA1053-00431
|
[4] |
Spacer
|
|
| 5. |
SA1153-00820
|
[2] |
Plug
|
|
| 6. |
SA1153-00810
|
[2] |
Reflector
|
|
| 7. |
SA9021-10406
|
[4] |
Cross recessed screw
|
SER NO 3001-3331
|
| |
SA9021-10405
|
[4] |
Cross recessed screw
|
SER NO 3332-
|
| 8. |
VOE14542812
|
[4] |
Shim
|
|
| 9. |
VOE14542811
|
[4] |
Shim
|
|
