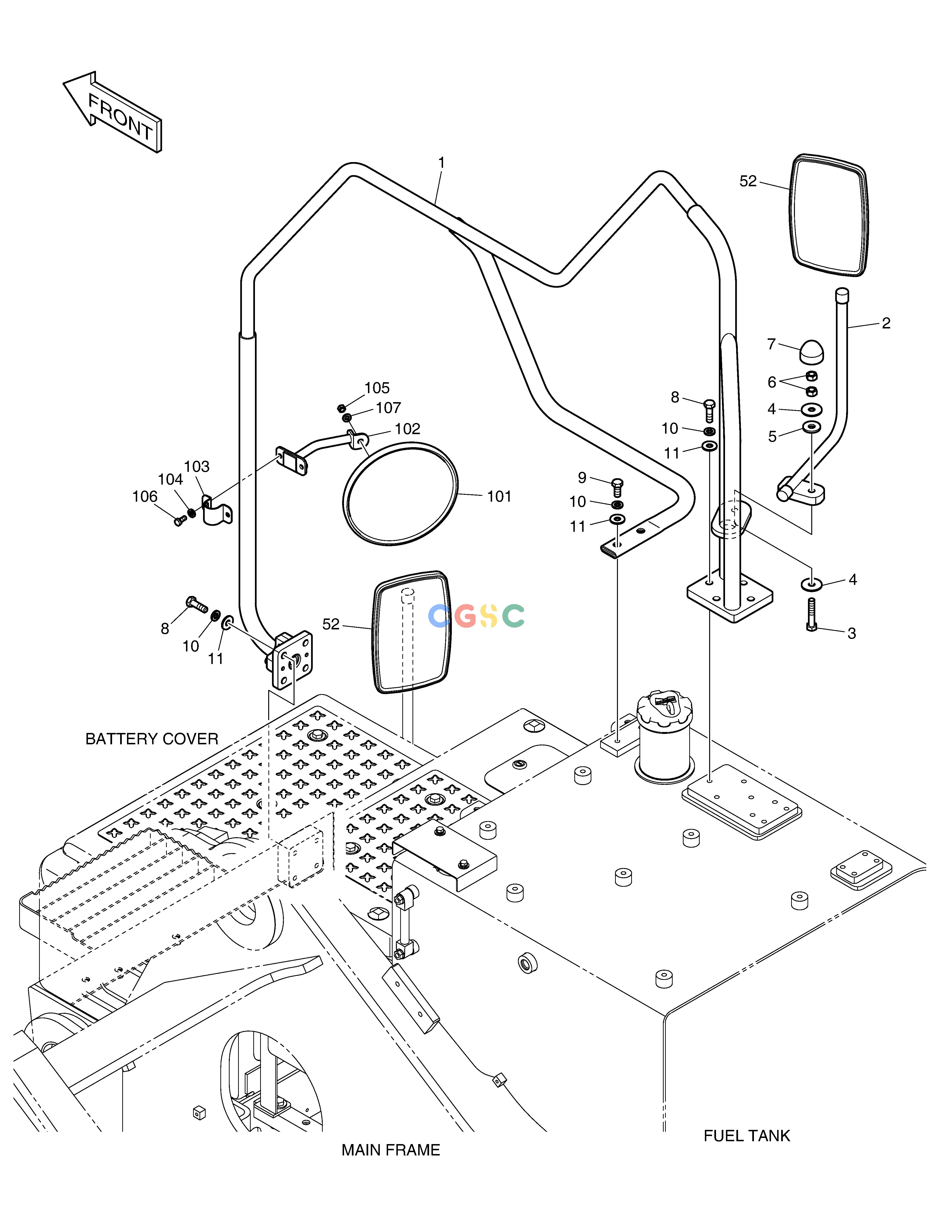

斗山零件查询HANDRAIL DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
237 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
101582-00435
|
[-] |
|
|
| 1. |
101582-00266A
|
[1] |
|
|
| 10. |
S5102705
|
[10] |
WASHER,SPRING
|
|
| 101. |
110969-00075
|
[1] |
|
|
| 102. |
101582-00254A
|
[1] |
|
|
| 103. |
250201-01707A
|
[1] |
|
|
| 104. |
2114-1898D2
|
[2] |
WASHER
|
|
| 105. |
2121-1311D4
|
[1] |
NUT
|
|
| 106. |
2120-2166D5
|
[2] |
BOLT
|
|
| 107. |
2114-1898D1
|
[1] |
WASHER
|
|
| 11. |
DS0401239
|
[10] |
|
|
| 2. |
K1038107A
|
[1] |
STAY,MIRROR
|
|
| 3. |
S0561066
|
[1] |
BOLT
|
|
| 4. |
2114-1058D68
|
[2] |
WASHER
|
|
| 5. |
2114-1058D54
|
[1] |
WASHER
|
|
| 52. |
K1040606
|
[2] |
MIRROR,SIDE
|
|
| 6. |
S4012733
|
[2] |
NUT
|
|
| 7. |
161-00580
|
[1] |
CAP,RUBBER
|
|
| 8. |
S0560566
|
[8] |
BOLT
|
|
| 9. |
S0515366
|
[2] |
BOLT
|
|
