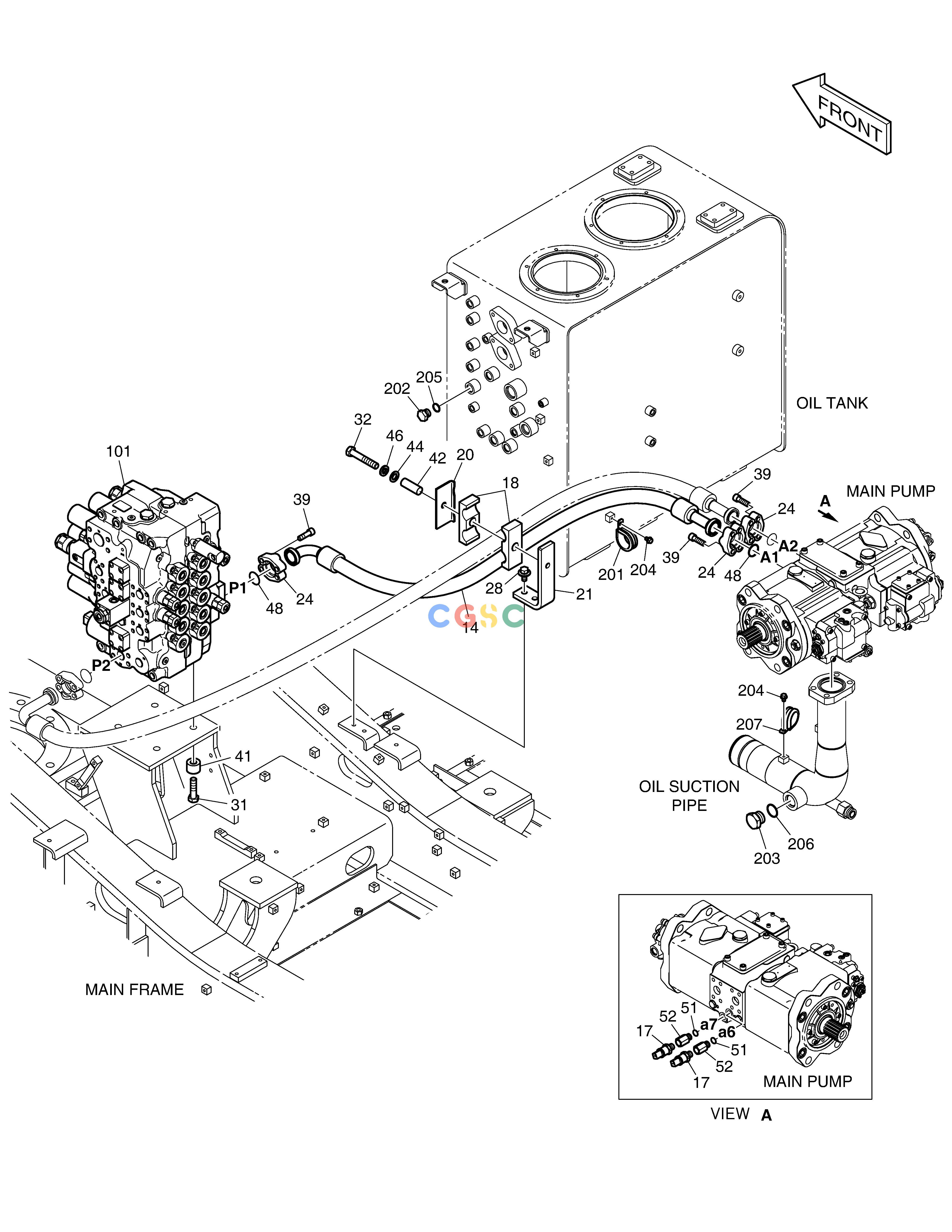

斗山零件查询MAIN PIPING(1) - PUMP DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
575 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08515
|
[-] |
|
|
| 101. |
410105-00085E
|
[1] |
|
|
| 14. |
DS20401334
|
[1] |
|
|
| 17. |
2547-9045
|
[2] |
SENSOR;PRESSURE
|
|
| 18. |
124-00247
|
[2] |
CLAMP;HOSE
|
|
| 20. |
2191-3705C
|
[1] |
PLATE
|
|
| 201. |
124-00208D7
|
[1] |
CLIP
|
|
| 202. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 203. |
2181-1950D9
|
[1] |
PLUG
|
|
| 204. |
K1001029
|
[2] |
BOLT
|
|
| 205. |
S8000181
|
[1] |
O-RING
|
|
| 206. |
S8000291
|
[1] |
O-RING
|
|
| 207. |
124-00208D6
|
[1] |
CLIP
|
|
| 21. |
110406-02146
|
[1] |
|
|
| 24. |
2181-9081
|
[6] |
FLANGE;SPLIT
|
|
| 28. |
DS0025018
|
[2] |
BOLT
|
|
| 31. |
S0565466
|
[4] |
BOLT
|
|
| 32. |
S0566166
|
[1] |
BOLT
|
|
| 39. |
S2215466
|
[12] |
BOLT
|
|
| 41. |
114-00425
|
[4] |
SPACER
|
|
| 42. |
114-00456
|
[1] |
SPACER
|
|
| 44. |
S5010913
|
[1] |
WASHER
|
|
| 46. |
S5102903
|
[1] |
WASHER
|
|
| 48. |
2180-1026D19
|
[2] |
O-RING
|
|
| 51. |
S8000141
|
[2] |
O-RING
|
|
| 52. |
DS2242015
|
[2] |
REDUCER
|
|
