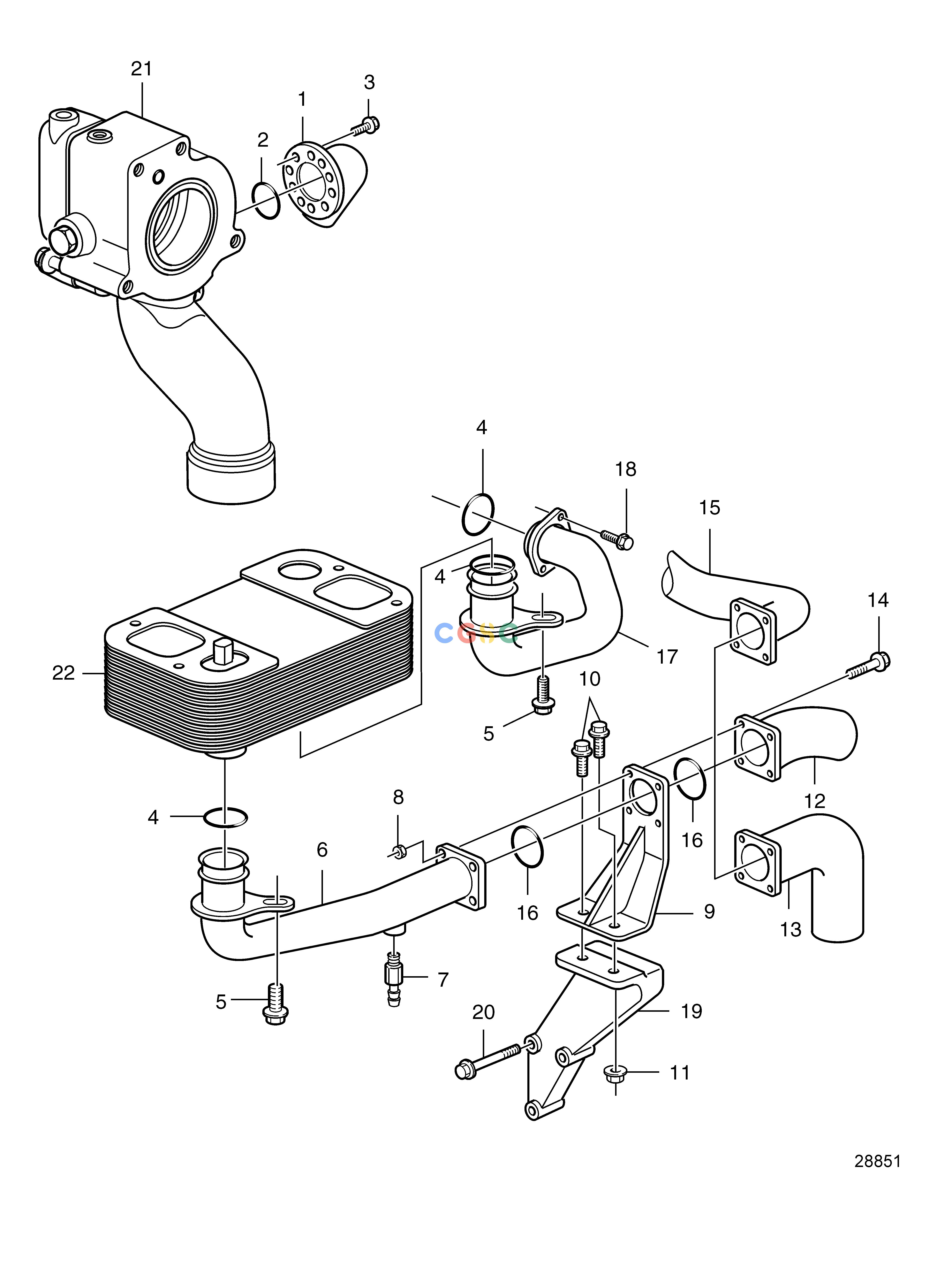

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MCooling SystemKeel CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
636 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3828881
|
[1] |
Hose connection
|
|
| 2. |
925069
|
[1] |
O-ring
|
|
| 3. |
946173
|
[2] |
Flange screw
|
|
| 4. |
1547253
|
[3] |
Sealing ring
|
|
| 5. |
948217
|
[1] |
Flange screw
|
|
| 6. |
3830521
|
[1] |
Coolant pipe
|
|
| 7. |
949918
|
[1] |
Shut-off cock
|
Replaced by 997641
|
| 7. |
997641
|
[1] |
Shut-off cock
|
|
| 8. |
945408
|
[4] |
Flange nut
|
Replaced by 990940
|
| 8. |
990940
|
[4] |
Flange nut
|
|
| 9. |
3830736
|
[1] |
Bracket
|
|
| 10. |
965185
|
[2] |
Flange screw
|
|
| 11. |
971095
|
[2] |
Flange nut
|
|
| 12. |
3830257
|
[1] |
Pipe elbow
|
Alt 30°
|
| 13. |
3830255
|
[1] |
Pipe elbow
|
Alt 90°
|
| 14. |
947760
|
[4] |
Flange screw
|
|
| 15. |
|
|
|
See oil cooler for reversing gear, group 26.
|
| 16. |
843584
|
[2] |
Gasket
|
|
| 17. |
3832829
|
[1] |
Coolant pipe
|
|
| 18. |
945444
|
[2] |
Flange screw
|
Replaced by 984735
|
| 18. |
984735
|
[2] |
Flange screw
|
|
| 19. |
865376
|
[1] |
Bracket
|
|
| 20. |
965188
|
[3] |
Flange screw
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
