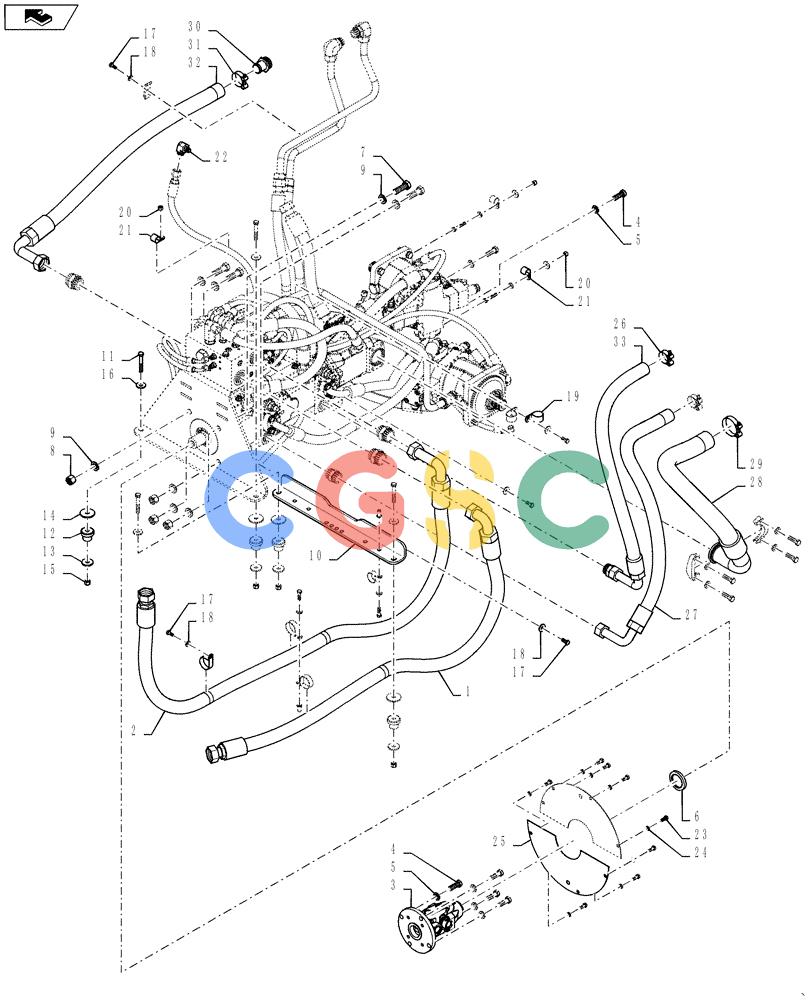

| 1. | 84498521 | [1] | HYDRAULIC HOSE,38.1mm ID x 1975mm L, SAE 100R1 | BURManifold to Cooler |
| 2. | 84498519 | [1] | HYDRAULIC HOSE,38.1mm ID x 2695mm L, SAE 100R1 | BURCooler to Manifold |
| 3. | 87595461 | [1] | DRIVE SHAFT | BUR |
| 4. | 86508624 | [6] | BOLT,Hex, M16 x 45mm, Cl 10.9, Full Thd | BHB |
| 5. | 86625266 | [6] | WASHER,17.5mm ID x 30mm OD x 4mm Thk | GI |
| 6. | L33673 | [1] | OIL SEAL | CAS Superseded by part number: 73048835 |
| 7. | 374890 | [4] | BOLT,Hex, M20 x 2.5 x 60mm, Cl 8.8, Full Thd | NH |
| 8. | 412180 | [4] | NUT,M20 x 2.5, Cl 8 | ZED Superseded by part number: 9672396 |
| 9. | 86625260 | [8] | WASHER,21.8mm ID x 37.5mm OD x 4mm Thk | FAR |
| 10. | 84599355 | [1] | SUPPORT | BUR |
| 11. | 43158 | [4] | BOLT,Hex, M12 x 80mm, Cl 8.8 | NH |
| 12. | A59514 | [4] | RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L | CAS |
| 13. | D25022 | [4] | WASHER | CAS |
| 14. | 87529127 | [4] | WASHER,0.53" ID x 2.25" OD x 0.18" Thk | BN0.531 x 2.25 x 0.179 CST |
| 15. | 412126 | [4] | NUT,M12 x 1.75 | ZED |
| 16. | 87016607 | [4] | WASHER,13.5mm ID x 37mm OD x 3mm Thk | PLO |
| 17. | 614-10025 | [5] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8 | CAS Superseded by part number: 11106231 |
| 18. | 87687101 | [5] | WASHER,10.65mm ID x 31mm OD x 3.3mm Thk | IMOM10, 10.65 x 31.0 x 3.0 HTS |
| 19. | 515-25381 | [2] | CLAMP,1 1/2", Insul, 1/2" Bolt | CAS Superseded by part number: 86639006 |
| 20. | 832-10410 | [3] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 21. | 515-25254 | [3] | CLAMP,1", Insul, 1/2" Bolt | CAS Superseded by part number: 86625038 |
| 22. | 201-312 | [1] | ELBOW,90º, 1"-14 x 9/16"-18, Adj, ORFS | FAR |
| 23. | 43139 | [8] | BOLT,M10 x 1.5 x 25mm, Cl 8.8 | NH Superseded by part number: 11106231, 11106231, BER43139 |
| 24. | 140028 | [8] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 25. | 385750A1 | [2] | COVER | BUR |
| 26. | 87364086 | [2] | CLAMP,1.62" - 1.88" | BUR188 x 1.62 SST HOSE |
| 27. | 84556065 | [1] | HYDRAULIC HOSE,31.75mm ID x 1264mm L, SAE 100R4 | BURSuction 1 |
| 28. | 84498512 | [1] | HYDRAULIC HOSE,51mm ID x 1124mm L, SAE 100R4 | BURSuction Superseded by part number: 47473815 |
| 29. | 214-2160 | [1] | CLAMP,69.85mm - 77.72mm | BHB |
| 30. | 86634098 | [1] | FITTING,1 1/2" Hose x 1 7/8"-12 ORB, Beaded | RAC |
| 31. | 214-2134 | [1] | CLAMP,#34, 1.94"-2.25", T-Bolt | CAS Superseded by part number: 71406249 |
| 32. | 84386523 | [1] | HYDRAULIC HOSE,38mm ID x 1107mm L, SAE 100R4 | BURManifold to Tank |
| 33. | 84498513 | [1] | HYDRAULIC HOSE,31.75mm ID x 1219mm L, SAE 100R4 | BURSuction 2 |
