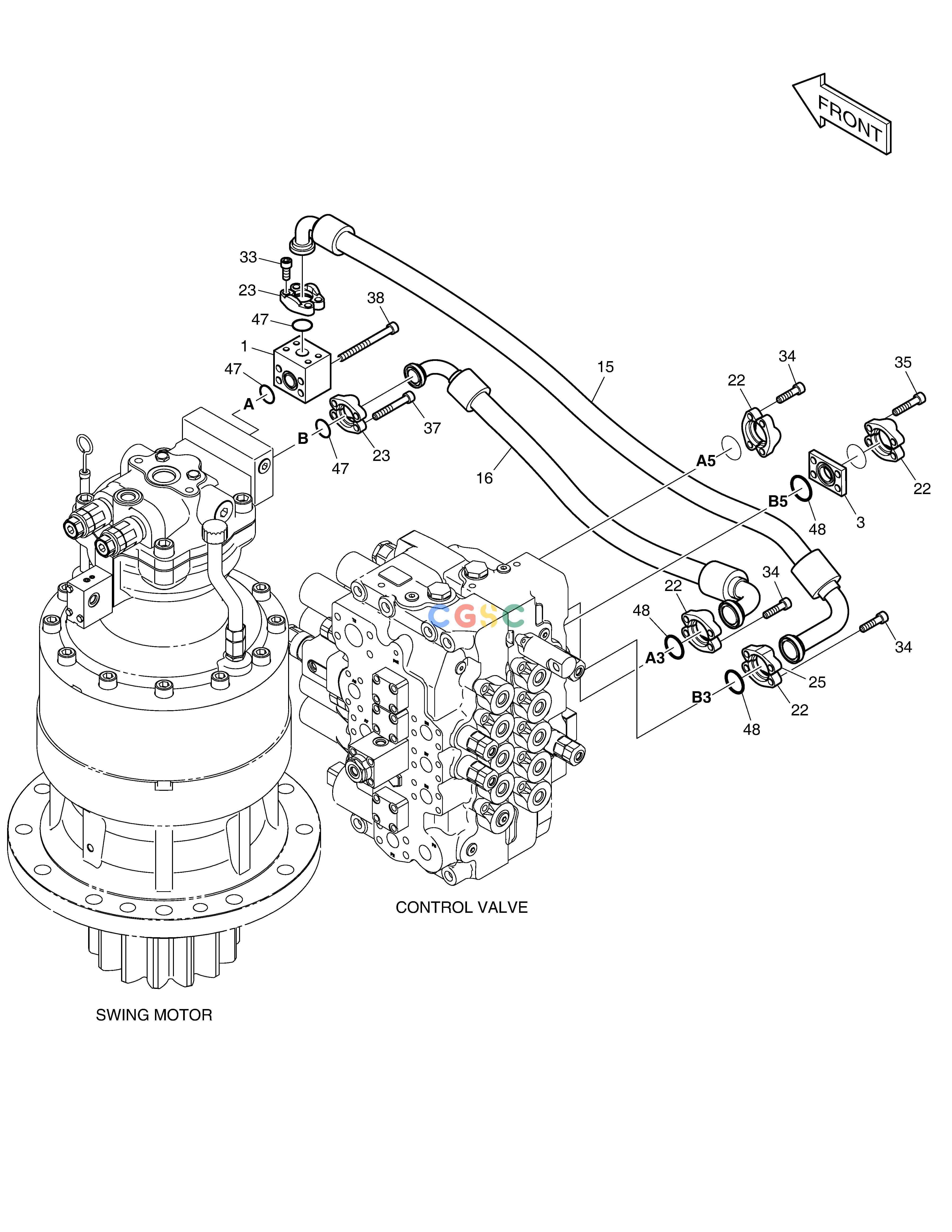

斗山零件查询MAIN PIPING(3) - SWING DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
359 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08515
|
[-] |
|
|
| 1. |
100201-00907A
|
[1] |
|
|
| 15. |
DS2045729
|
[1] |
|
|
| 16. |
DS2045730
|
[1] |
|
|
| 22. |
2181-9078
|
[7] |
FLANGE;SPLIT
|
|
| 23. |
2181-9079
|
[4] |
FLANGE
|
|
| 25. |
2181-9083
|
[1] |
FLANGE;SPLIT
|
|
| 3. |
423-00199
|
[1] |
BLOCK;SPACER
|
|
| 33. |
S2212066
|
[4] |
BOLT
|
|
| 34. |
S2212266
|
[12] |
BOLT
|
|
| 35. |
S2212466
|
[4] |
BOLT
|
|
| 37. |
S2213066
|
[4] |
BOLT;SOCKET M10X1.5X70
|
|
| 38. |
S2213866
|
[4] |
BOLT;SOCKET M10X1.5X110
|
|
| 47. |
2180-1026D2
|
[3] |
O-RING
|
|
| 48. |
2180-1026D19
|
[3] |
O-RING
|
|
