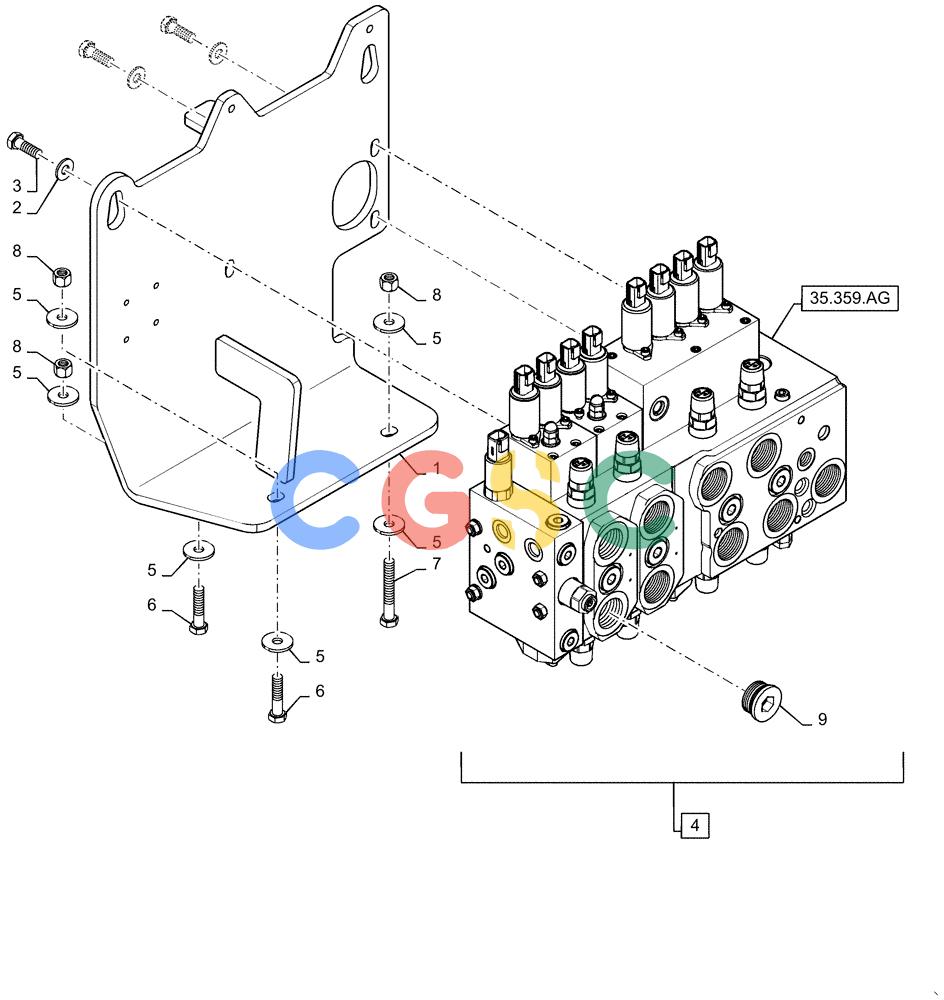

纽荷兰零件查询(D150C WT/LGP) - CRAWLER DOZER - TIER 4A (10/13-) (35.102.AE [01]) - CONTROL VALVE ASSY, 4 SP W/PLUGS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
712 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47561861 | [1] | BRACKET | BURValve Mount |
| 2. | 87655046 | [3] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BUR |
| 3. | 627-10030 | [3] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 9515003 |
| 4. | 47480679 | [1] | CONTROL VALVE | BUR4 Spool |
| 5. | 87687101 | [6] | WASHER,10.65mm ID x 31mm OD x 3.3mm Thk | IMO |
| 6. | 814-10045 | [2] | BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8 | CAS Superseded by part number: 8900127036 |
| 7. | 614-10070 | [1] | BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd | CAS Superseded by part number: 120115 |
| 8. | 832-10410 | [3] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 9. | 87363628 | [2] | PLUG | SAS |
