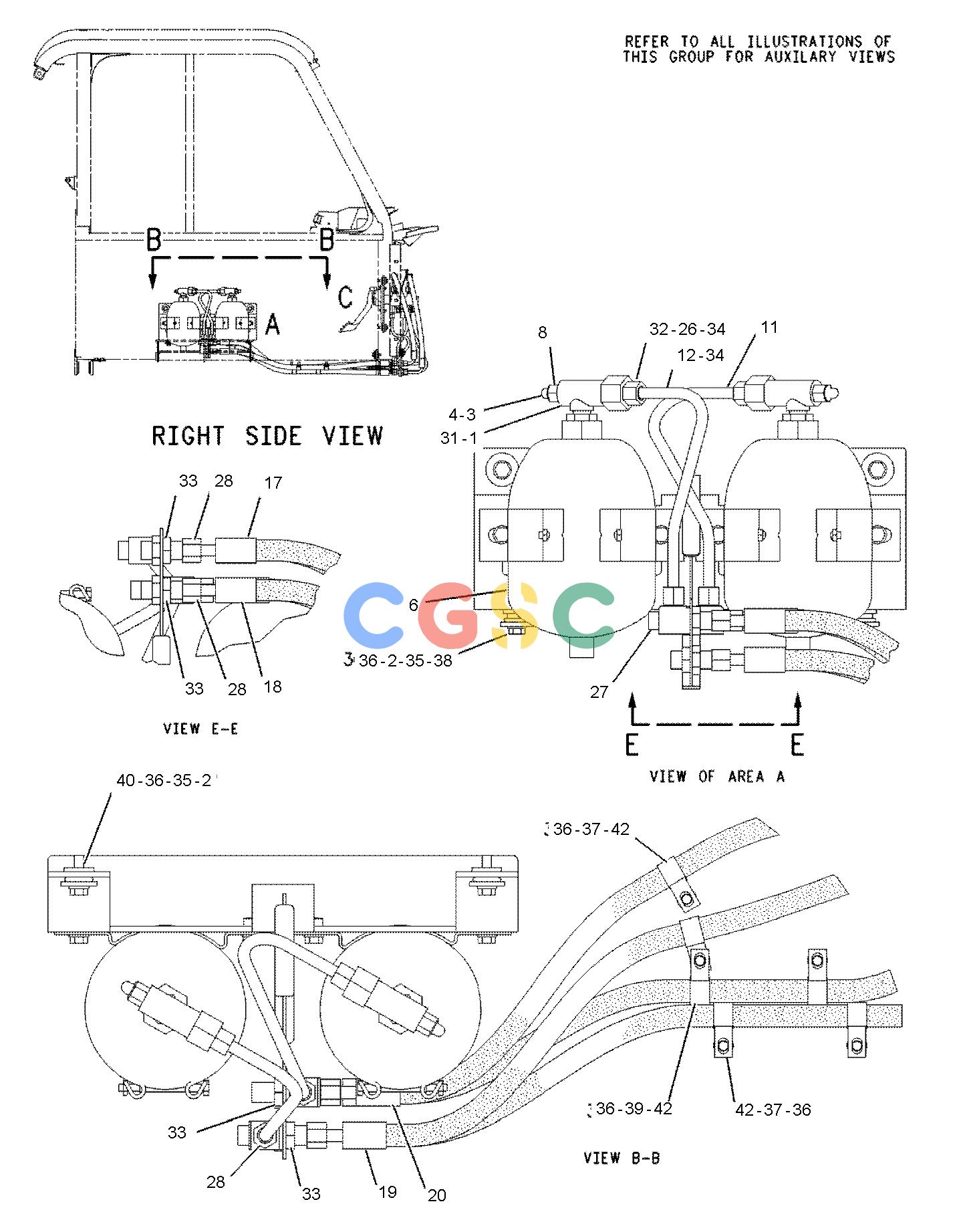

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3E-2345 | [2] | ADAPTER-TEE | |
| 2. | 6N-6984 | [11] | MOUNT-RUBBER | |
| 3. | 9F-2167 | [2] | SCREW-PURGE(3/8-24X1.164-IN) | |
| 4. | 108-8393 | [2] | CAP | |
| 5. | 150-4027 | [2] | TEE AS | |
| (EACH INCLUDES) | ||||
| 3E-2310 | [1] | TEE | ||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6. | 163-9413Y | [1] | ACCUMULATOR & MTG GP-BRAKE | |
| 7. | 168-9085 | [1] | VALVE GP-BRAKE CONTROL(SERVICE) | |
| 141-1914 | [1] | KIT-SEAL | ||
| 8. | 169-7403 | [2] | ADAPTER AS | |
| (EACH INCLUDES) | ||||
| 6G-3432 | [1] | ADAPTER | ||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 9. | 172-6525 | [1] | PLATE | |
| 10. | 178-9981 | [1] | PLATE AS | |
| 6V-9632M | [3] | NUT-WELD(M6X1-THD) | ||
| 11. | 179-4327 | [1] | TUBE AS | |
| 12. | 179-4328 | [1] | TUBE AS | |
| 13. | 179-4332 | [1] | TUBE AS | |
| 14. | 179-4333 | [1] | TUBE AS | |
| 15. | 179-4334 | [1] | TUBE AS | |
| 16. | 179-4335 | [1] | TUBE AS | |
| 17. | 179-4336I | [1] | HOSE AS | |
| 18. | 179-4337I | [1] | HOSE AS | |
| 19. | 179-4338I | [1] | HOSE AS | |
| 20. | 179-4339I | [1] | HOSE AS | |
| 21. | 180-8145 | [1] | SEAL | |
| 22. | 217-7744 | [1] | PLATE | |
| 23. | 201-0681I | [1] | HOSE AS | |
| 24. | 201-0683I | [1] | HOSE AS | |
| 25. | 148-8365 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 8T-6876 | [1] | ELBOW | ||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 26. | 148-8418 | [2] | REDUCER AS | |
| (EACH INCLUDES) | ||||
| 6V-8942 | [1] | REDUCER-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 27. | 148-8427 | [3] | TEE AS | |
| (EACH INCLUDES) | ||||
| 8T-6895 | [1] | TEE-UNION | ||
| 6V-8398 | [3] | SEAL-O-RING | ||
| 28. | 148-8457 | [6] | UNION AS(STRAIGHT) | |
| (EACH INCLUDES) | ||||
| 6V-8995 | [1] | UNION(STRAIGHT) | ||
| 6V-8398 | [2] | SEAL-O-RING | ||
| 29. | 153-6258 | [2] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 8T-5050 | [1] | CONNECTOR | ||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 30. | 164-5544 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 3E-2333 | [1] | ELBOW | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 31. | 3D-2824 | [2] | SEAL-O-RING | |
| 32. | 6V-8556 | [2] | NUT(1-3/16-12-THD) | |
| 33. | 6V-9169 | [9] | NUT(13/16-16-THD) | |
| 34. | 6V-9746 | [2] | SEAL-O-RING | |
| 35. | 8M-4069 | [11] | WASHER(10.3X38.1X5-MM THK) | |
| 36. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 37. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 38. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 39. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 40. | 8T-4196M | [9] | BOLT(M10X1.5X35-MM) | |
| 41. | 8T-4971M | [3] | BOLT(M6X1X30-MM) | |
| 42. | 9X-8250 | [6] | CLIP(LOOP) | |
| 43. | 9X-8256 | [3] | WASHER(6.6X12X2-MM THK) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
