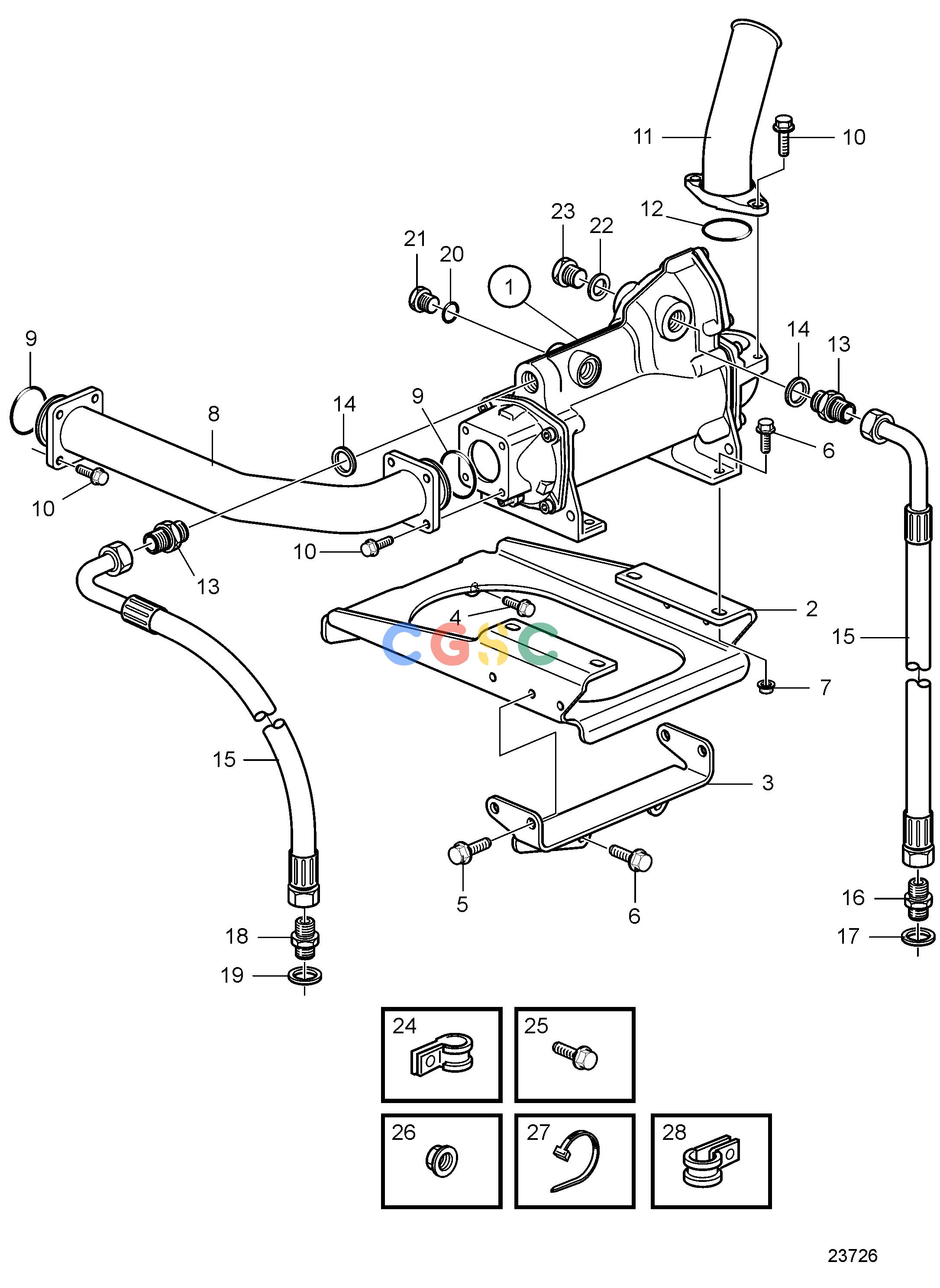

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MCooling SystemOil Cooler for ZF311A-E, Later ProductionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3843997
|
[1] |
Heat exchanger
|
Replaced by next part number
|
| 1. |
22108637
|
[1] |
Heat exchanger
|
|
| 1. |
|
|
|
|
| 2. |
3887366
|
[1] |
Bracket
|
|
| 3. |
3819602
|
[1] |
Bracket
|
|
| 4. |
965185
|
[2] |
Flange screw
|
|
| 5. |
946173
|
[4] |
Flange screw
|
|
| 6. |
946752
|
[6] |
Flange screw
|
|
| 7. |
971095
|
[4] |
Flange nut
|
|
| 8. |
3887382
|
[1] |
Sea-water pipe
|
|
| 9. |
843584
|
[2] |
Gasket
|
|
| 10. |
946173
|
[10] |
Flange screw
|
|
| 11. |
3842588
|
[1] |
Sea-water pipe
|
|
| 12. |
925092
|
[1] |
O-ring
|
|
| 13. |
984670
|
[2] |
Nipple
|
|
| 14. |
977937
|
[2] |
Gasket
|
|
| 15. |
3588801
|
[2] |
Hose
|
L=570mm
|
| 16. |
943986
|
[1] |
Nipple
|
|
| 17. |
976932
|
[1] |
Gasket
|
|
| 18. |
984669
|
[1] |
Nipple
|
|
| 19. |
976930
|
[1] |
Gasket
|
|
| 20. |
968559
|
[1] |
O-ring
|
|
| 21. |
968610
|
[1] |
Plug
|
|
| 22. |
977937
|
[1] |
Gasket
|
|
| 23. |
914394
|
[1] |
Plug
|
|
| 24. |
945081
|
[2] |
Clamp
|
|
| 25. |
946173
|
[1] |
Flange screw
|
|
| 26. |
945408
|
[1] |
Flange nut
|
|
| 27. |
948616
|
[1] |
Cable tie
|
|
| 28. |
949747
|
[1] |
Clamp
|
|
