神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (01-007) - PISTON Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
602 次

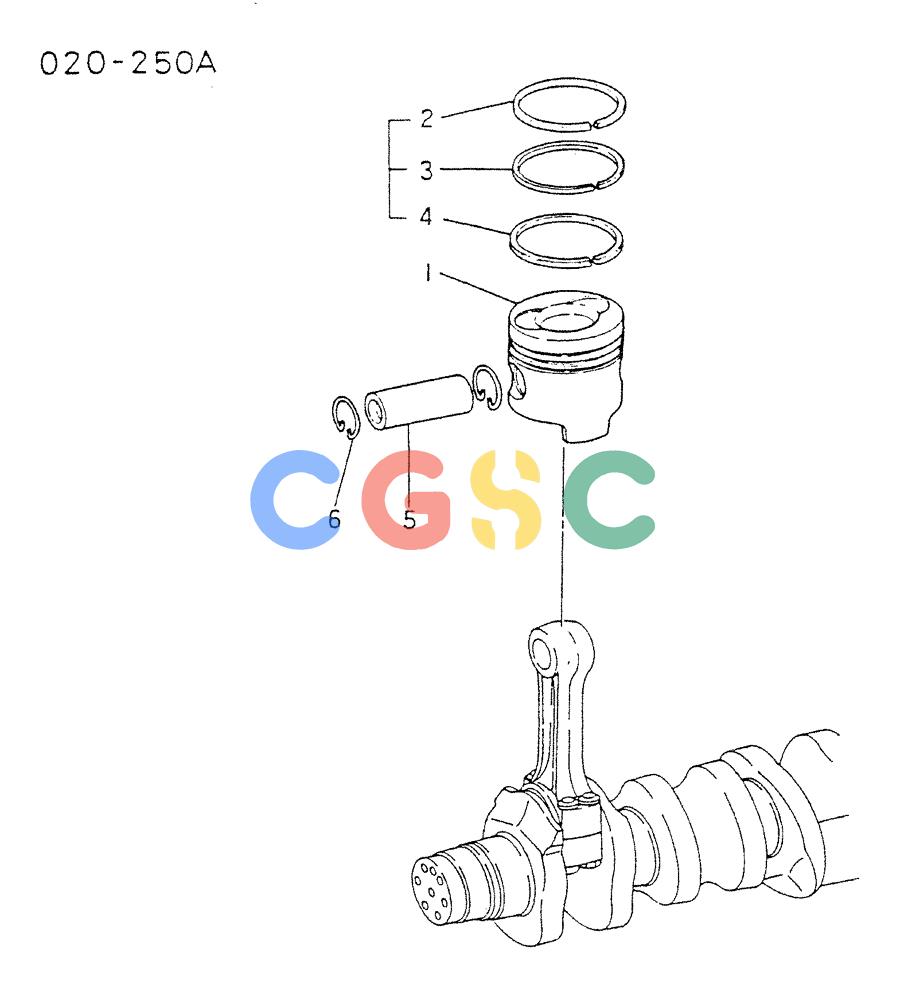

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS03 | [1] | PISTON(M0) | |
| . . | 6D22Z ALL | [1] | PISTON(M0) | |
| . . | VAME052589 | [6] | PISTON | KOBA SIZE Superseded by part number: VAME052810 |
| . . | VAME052590 | [1] | PISTON RING SET | KOBB SIZE |
| . . | VAME052591 | [1] | C SIZE | |
| . . | VAME052592 | [1] | OS 0.50 | |
| . . | VAME052593 | [1] | OS 0.75 | |
| . . | VAME052594 | [1] | OS 1.00 | |
| 2-4. | VAME052124 | [1] | PISTON RING | KOBPISTON STANDARD Superseded by part number: VAME052787 |
| . . | VAME052125 | [1] | RING SET OS 0.50 | RING SET OS 0.50 |
| . . | VAME052126 | [1] | PISTON RING | KOB |
| . . | VAME052127 | [1] | OS 1.00 | |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONRING, COMPRESSION NO.1 |
| 3. | NSS | [6] | NOT SOLD SEPARAT | CONRING, COMPRESSION NO.2 |
| 4. | NSS | [6] | NOT SOLD SEPARAT | CONRING, OIL |
| 5. | VAME052149 | [6] | PIN | KOBPISTON Superseded by part number: 132468A1 |
| 6. | VA3121733100 | [12] | O-RING | KOB Superseded by part number: 132493A1 |
