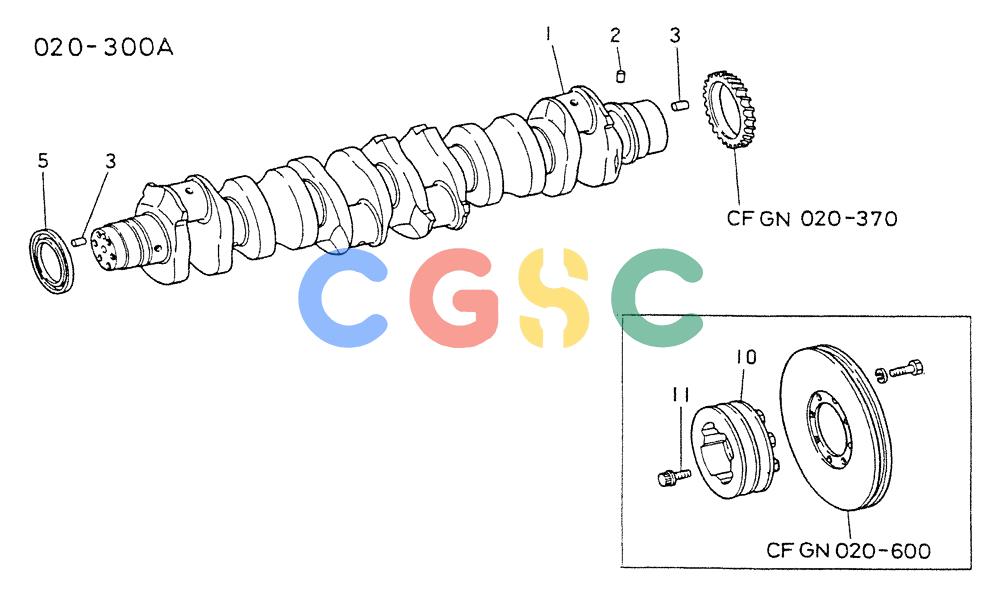

神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (01-010) - CRANKSHAFT & PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
974 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS06 | [1] | CRANK SHAFT & PULLEY(M4) | |
| . . | 6D221CZ-KS09 | [1] | CRANK SHAFT & PULLEY(M4) | |
| . . | 6D221CZ-KS07 | [1] | CRANK SHAFT & PULLEY(M4) | |
| . . | 6D221CZ-KS04 | [1] | CRANK SHAFT & PULLEY(M4) | |
| . . | 6D221CZ-KS01 | [1] | CRANK SHAFT & PULLEY(M4) | |
| . . | 6D221CZ-KS03 | [1] | CRANK SHAFT & PULLEY(M4) | |
| . . | 6D221CZ-KS0A | [1] | CRANK SHAFT & PULLEY(M4) | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKSHAFT |
| 2. | VAMH012026 | [1] | PIN | KOBDOWEL |
| 3. | VAMF472407 | [2] | PIN | KOBDOWEL 14 |
| 5. | VA3092003800 | [1] | SLINGER | KOBFR |
| 10. | VAME058318 | [1] | PULLEY | KOBCRANKSHAFT D192 CX2 |
| 11. | VAMH000377 | [6] | BOLT | KOBFLANGE 14X35 |
