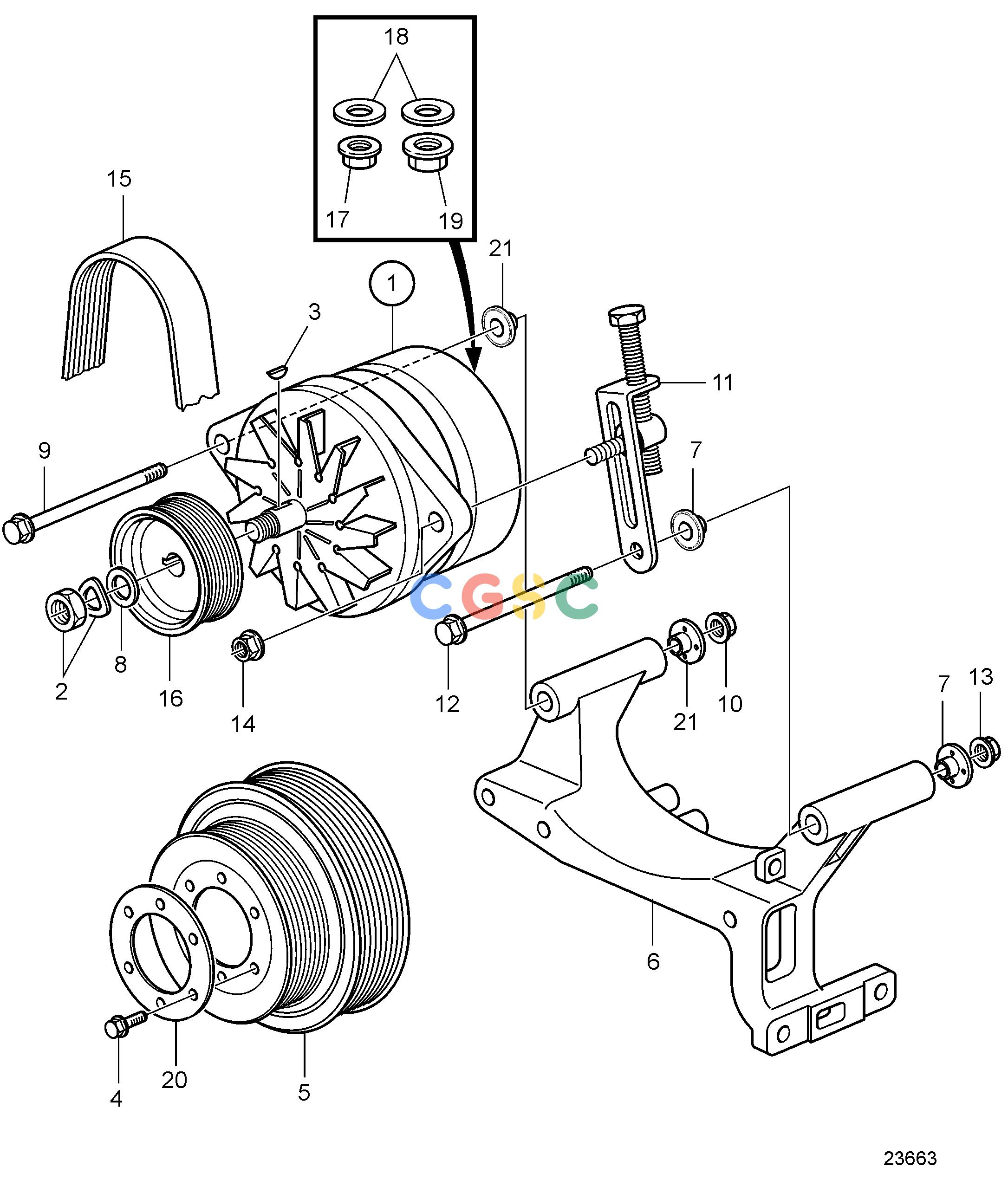

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
133 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873986
|
[1] |
Alternator
|
28V 60A
|
| 1. |
3803496
|
[1] |
Alternator, exch
|
28V 60A
|
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
945444
|
[6] |
Flange screw
|
|
| 5. |
1546482
|
[1] |
Pulley
|
|
| 6. |
3808013
|
[1] |
Bracket
|
|
| 7. |
3589388
|
[2] |
Insulating bushing
|
|
| 8. |
1675544
|
[1] |
Spacer sleeve
|
|
| 9. |
979935
|
[1] |
Flange screw
|
|
| 10. |
971096
|
[1] |
Flange nut
|
|
| 11. |
1676586
|
[1] |
Tensioner
|
|
| 12. |
965184
|
[1] |
Flange screw
|
|
| 13. |
945408
|
[1] |
Flange nut
|
|
| 14. |
971095
|
[1] |
Flange nut
|
|
| 15. |
978217
|
[1] |
V-ribbed belt
|
|
| 16. |
1636242
|
[1] |
Pulley
|
|
| 17. |
945407
|
[1] |
Flange nut
|
M6,B-
|
| 18. |
941906
|
[1] |
Spring washer
|
B-
|
| 18. |
941907
|
[1] |
Spring washer
|
B+
|
| 19. |
945408
|
[1] |
Flange nut
|
M8,B-
|
| 20. |
3979500
|
[1] |
Washer
|
|
| 21. |
3589369
|
[2] |
Insulating bushing
|
|
