沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemAlternator 28V 60A, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
852 次

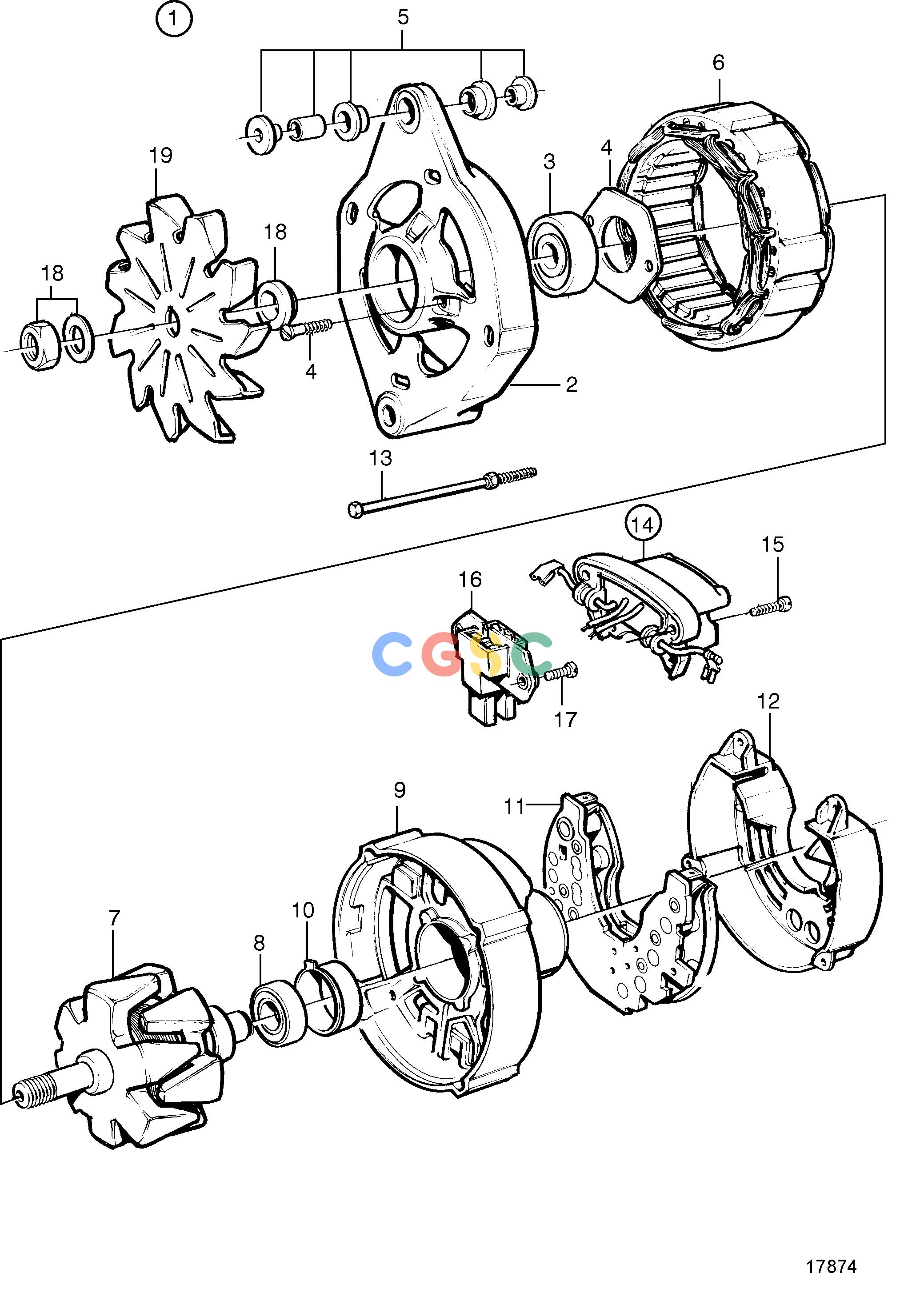

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873986
|
[1] |
Alternator
|
|
| 1. |
3803496
|
[1] |
Alternator, exch
|
|
| 2. |
|
|
|
|
| 3. |
847708
|
[1] |
Ball bearing
|
|
| 4. |
847709
|
[1] |
Bearing carrier
|
|
| 5. |
840634
|
[1] |
Guide
|
|
| 6. |
864346
|
[1] |
Stator
|
|
| 7. |
864347
|
[1] |
Rotor
|
|
| 8. |
864351
|
[1] |
Ball bearing
|
|
| 9. |
|
|
|
|
| 10. |
840629
|
[1] |
Bearing race
|
|
| 11. |
3090710
|
[1] |
Diode bridge
|
|
| 12. |
847712
|
[1] |
Protecting casing
|
|
| 13. |
847710
|
[1] |
Screw kit
|
|
| 14. |
872368
|
[1] |
Regulator kit
|
|
| 15. |
859312
|
[4] |
Screw
|
|
| 16. |
840632
|
[1] |
Brush retainer
|
|
| 17. |
859312
|
[2] |
Screw
|
|
| 18. |
847706
|
[1] |
Nut set
|
|
| 19. |
3090711
|
[1] |
Fan
|
|
