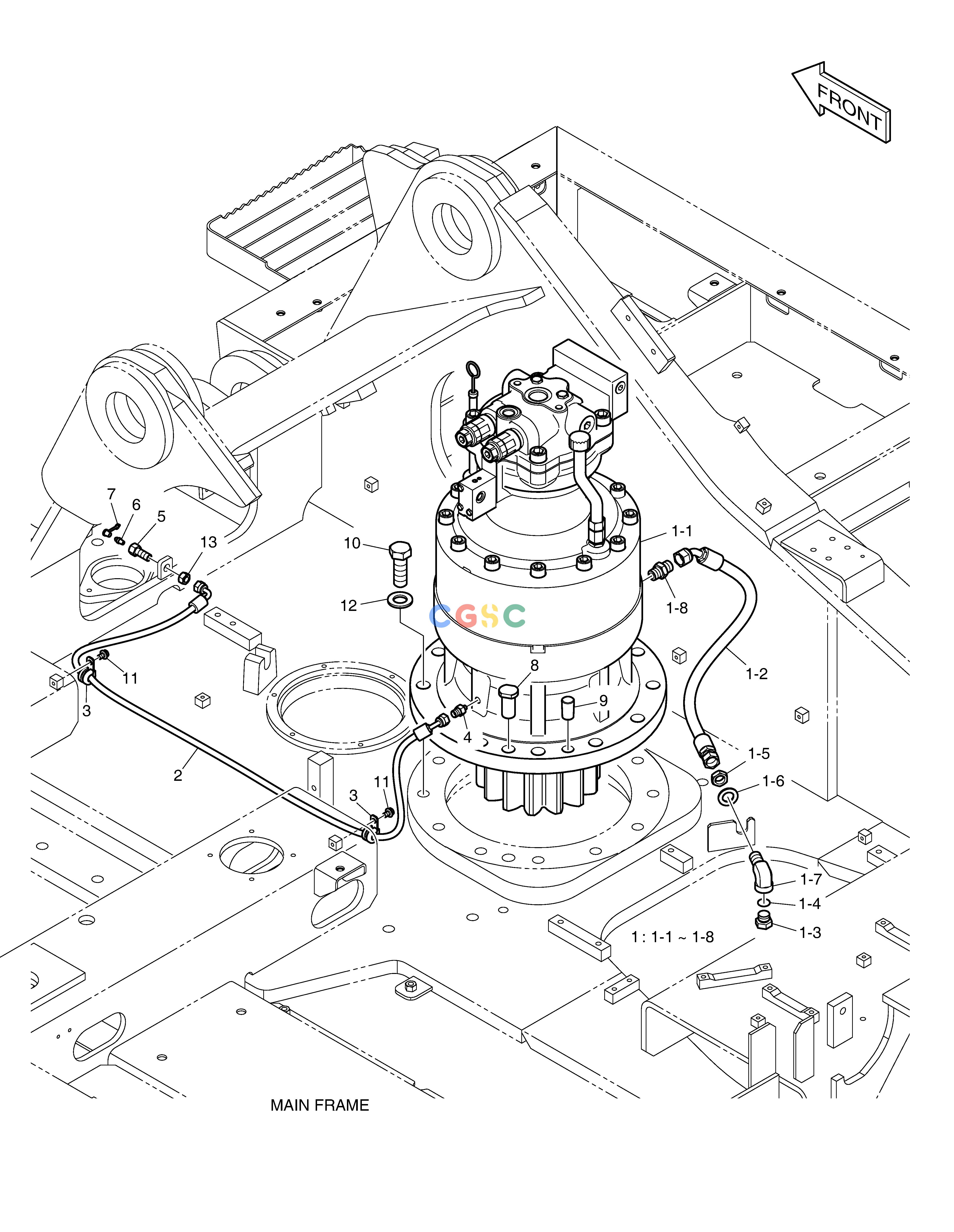

斗山零件查询SWING DEVICE DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
252 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
170301-00216
|
[-] |
|
|
| 1. |
170301-00091B
|
[1] |
|
|
| 1-1. |
170301-00092B
|
[1] |
|
|
| 1-2. |
DS2054133
|
[1] |
HOSE
|
|
| 1-3. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 1-4. |
S8000181
|
[1] |
O-RING
|
|
| 1-5. |
121-00010D3
|
[1] |
. NUT
|
|
| 1-6. |
S5011113
|
[1] |
. WASHER
|
|
| 1-7. |
181-00717
|
[1] |
. ELBOW
|
|
| 1-8. |
2181-1110D3
|
[1] |
. ADAPTER
|
|
| 10. |
S0774766
|
[12] |
BOLT M24X2.0X70
|
|
| 11. |
K1001029
|
[2] |
BOLT
|
|
| 12. |
2114-1831A
|
[12] |
. WASHER
|
|
| 13. |
121-00006
|
[1] |
NUT
|
|
| 2. |
DS2058357
|
[1] |
|
|
| 3. |
124-00208D2
|
[2] |
CLAMP
|
|
| 4. |
2181-4112
|
[1] |
ADAPTER
|
|
| 5. |
181-00103
|
[1] |
REDUCER
|
|
| 6. |
S6710041
|
[1] |
NIPPLE,GREASE
|
|
| 7. |
160-00020
|
[1] |
CAP
|
|
| 8. |
2123-1717B
|
[2] |
PIN;KNOCK
|
|
| 9. |
198-00028
|
[2] |
CAP
|
|
