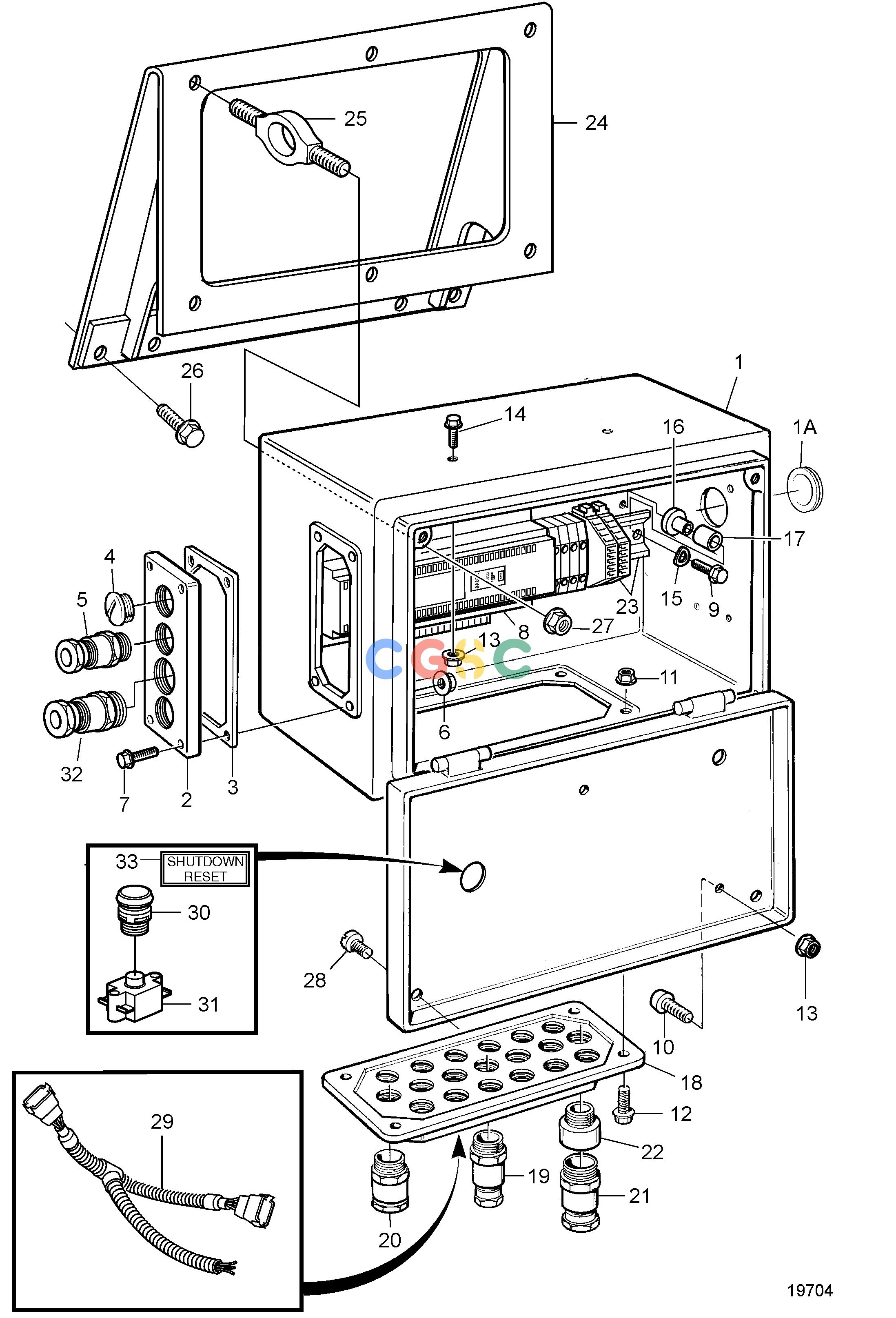

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemConnection Box, Classifiable, Evc, Earlier ProductionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
517 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3587009
|
[1] |
Electrical distribut
|
|
| 1A. |
941269
|
[1] |
Plug
|
|
| 2. |
843094
|
[1] |
Pipe flange
|
|
| 3. |
843578
|
[1] |
Gasket
|
|
| 4. |
843903
|
[3] |
Plug
|
|
| 5. |
881193
|
[1] |
Grommet
|
|
| 6. |
963105
|
[8] |
Lock nut
|
M6
|
| 7. |
946544
|
[4] |
Flange screw
|
M6x16mm
|
| 8. |
3819845
|
[1] |
Electronic unit
|
Shutdown unit
|
| 9. |
|
|
|
M5x25
|
| 10. |
965199
|
[4] |
Flange screw
|
M6x14
|
| 11. |
963104
|
[4] |
Lock nut
|
M5
|
| 12. |
956075
|
[4] |
Cross recessed screw
|
M5x10mm
|
| 13. |
965483
|
[10] |
Flange nut
|
|
| 14. |
965199
|
[6] |
Flange screw
|
|
| 15. |
960138
|
[2] |
Washer
|
|
| 16. |
824830
|
[2] |
Spacer sleeve
|
|
| 17. |
403894
|
[2] |
Spacer sleeve
|
|
| 18. |
|
|
|
|
| 19. |
881190
|
[1] |
Grommet
|
4,5-7,5mm, pr 15,2
|
| 19. |
881191
|
[1] |
Grommet
|
7,5-10,5mm, pr 18,6
|
| 20. |
844576
|
[1] |
Grommet
|
9,5-12,0mm, pr 18,6
|
| 21. |
881192
|
[1] |
Grommet
|
12,5-15,0mm, pr 22,5
|
| 22. |
872939
|
[1] |
Adapter, electr box-altern-starter
|
D=18,6-22,5mm
|
| 22. |
862885
|
[1] |
Reduction sleeve
|
For 881190. D=15,2-18,6mm
|
| 23. |
888003
|
[1] |
Terminal block, converter
|
|
| 24. |
3832497
|
[1] |
Bracket
|
|
| 25. |
3839156
|
[4] |
Rubber cushion
|
|
| 26. |
946441
|
[2] |
Flange screw
|
|
| 27. |
945407
|
[8] |
Flange nut
|
|
| 28. |
946471
|
[1] |
Flange screw
|
|
| 29. |
881630
|
[1] |
Cable kit
|
|
| 30. |
3817578
|
[1] |
Push button
|
(863104)
|
| 31. |
3817574
|
[1] |
Contact unit
|
(873791)
|
| 32. |
822327
|
[1] |
Grommet
|
8,5-11,5mm, pr 22,5
|
| 33. |
|
|
|
|
