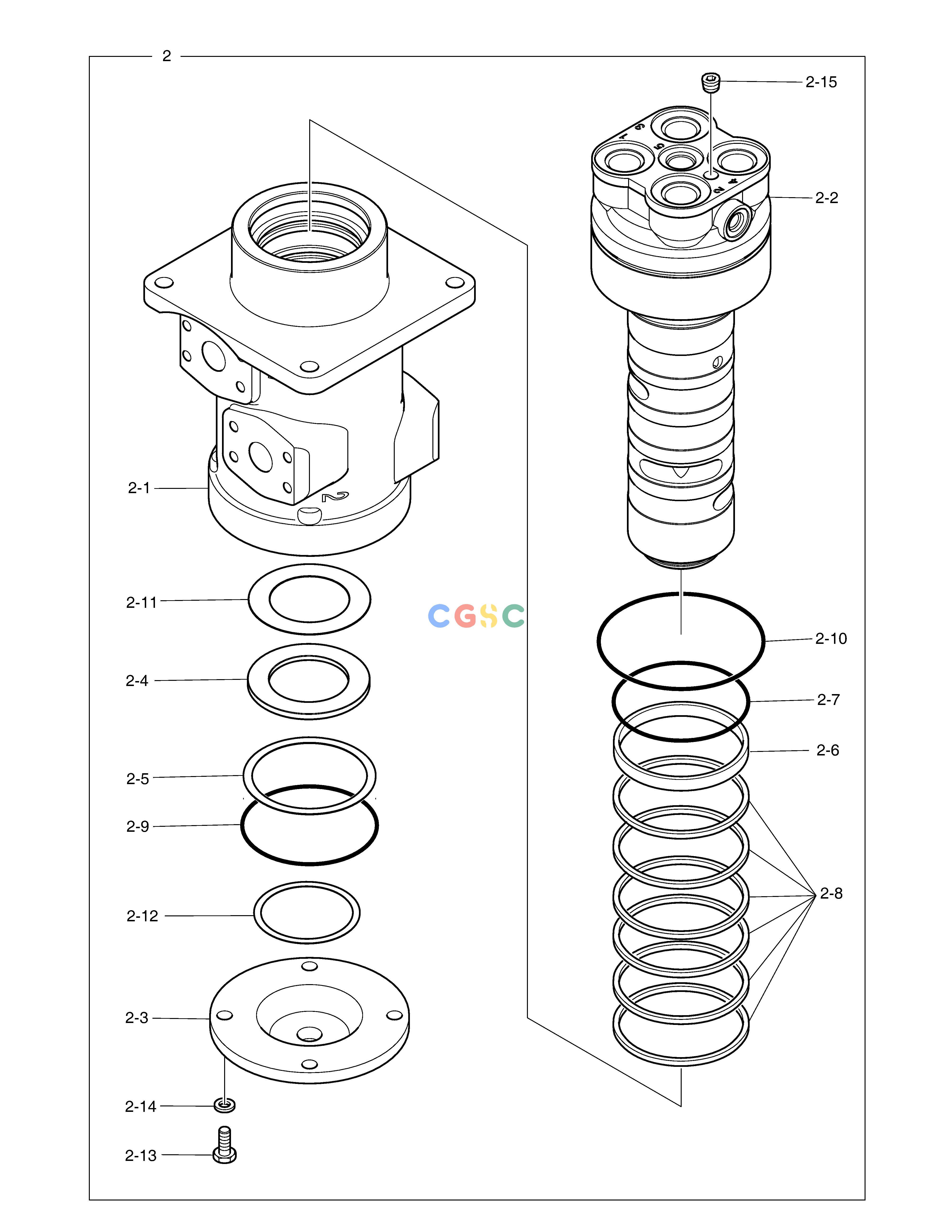

斗山零件查询CENTER JOINT DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
705 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01330
|
[1] |
SEAL KIT
|
|
| -. |
K1057005
|
[-] |
|
|
| 2. |
400826-00011A
|
[1] |
JOINT,CENTER
|
|
| 2-1. |
900122-00112
|
[1] |
. HUB
|
|
| 2-10. |
S8001050
|
[1] |
. O-RING
|
|
| 2-11. |
K9006884
|
[1] |
. SHIM
|
|
| 2-12. |
K9006883
|
[1] |
. SHIM
|
|
| 2-13. |
S0515253
|
[4] |
. BOLT
|
|
| 2-14. |
S5102703
|
[4] |
WASHER
|
|
| 2-15. |
2181-1116D2
|
[1] |
PLUG
|
|
| 2-2. |
130713-01619
|
[1] |
. SPINDLE
|
|
| 2-3. |
K1038793
|
[1] |
. COVER
|
|
| 2-4. |
K1038794
|
[1] |
. SPACER
|
|
| 2-5. |
S6500600
|
[1] |
. RING,RETAINER
|
|
| 2-6. |
S8000801
|
[1] |
. O-RING
|
|
| 2-7. |
NA03899
|
[1] |
. SEAL,DUST
|
|
| 2-8. |
NA01100
|
[7] |
. SEAL,SLIPPER
|
|
| 2-9. |
S8011000
|
[1] |
. O-RING
|
|
