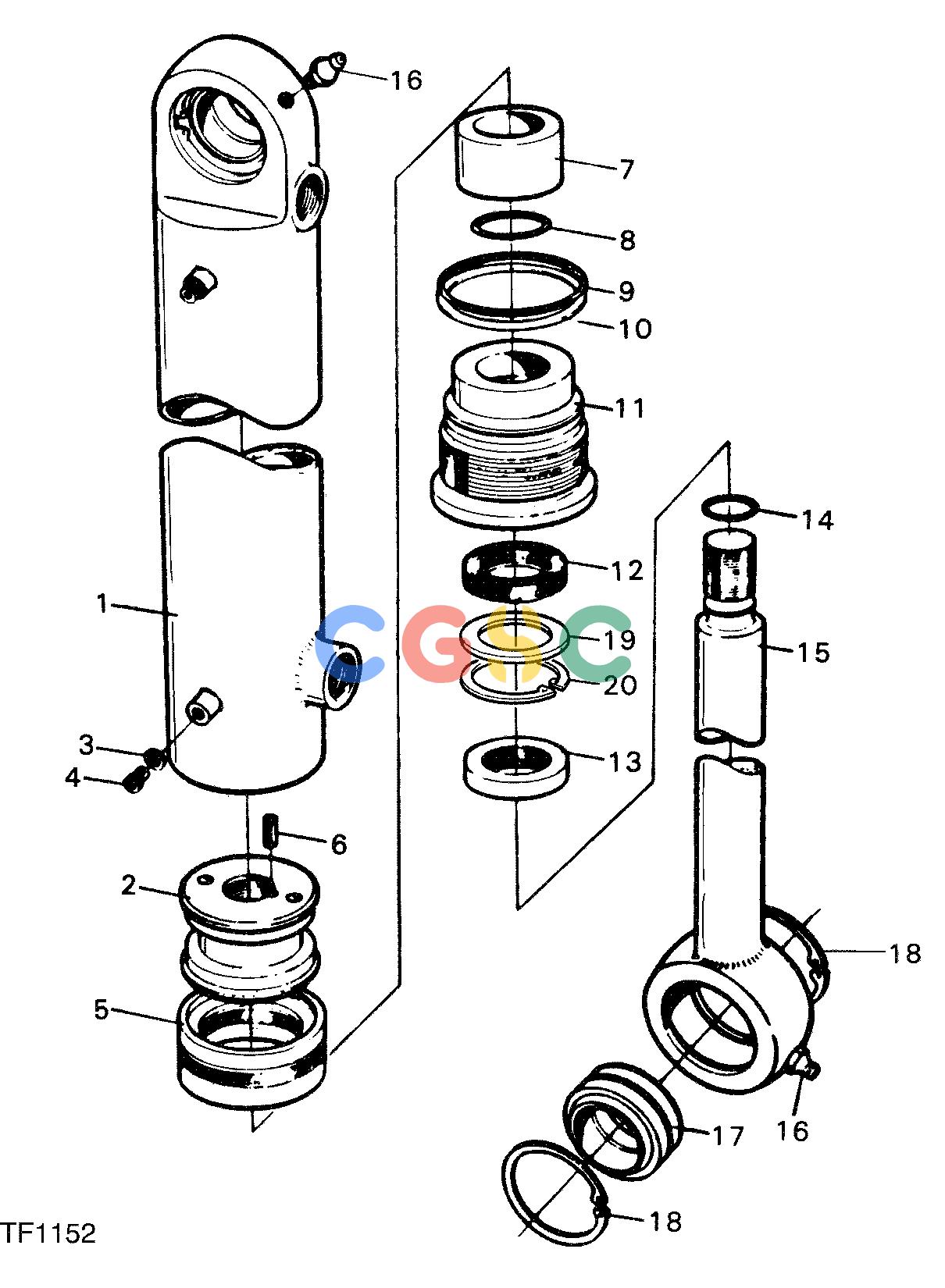

约翰迪尔零件查询743C ATT - ATTACHMENTS ENGINE CYLINDER, CUTTING KNIVE F052679 11 30 TF1152 [TF1152]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
362 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F050207
|
[1] |
Hydraulic Cylinder
|
|
| 1. |
F036624
|
[1] |
CYLINDER TUBE
|
|
| 2. |
F011245
|
[1] |
Piston
|
|
| 3. |
F010779
|
[1] |
SEAL RING
|
|
| 4. |
F016496
|
[1] |
Screw
|
|
| 5. |
F034660
|
[1] |
Seal
|
|
| 6. |
F011446
|
[1] |
STOP SCREW
|
|
| 7. |
F035191
|
[1] |
Sleeve
|
|
| 8. |
F005634
|
[1] |
O-Ring
|
|
| 9. |
F003289
|
[1] |
O-Ring
|
|
| 10. |
F034656
|
[1] |
SUPPORT RING
|
|
| 11. |
F054951
|
[1] |
Cylinder Head
|
|
| 12. |
F034658
|
[1] |
Seal
|
|
| 13. |
F034659
|
[1] |
Scraper
|
|
| 14. |
F034657
|
[1] |
O-Ring
|
|
| 15. |
F053659
|
[1] |
PISTON ROD
|
|
| 16. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 17. |
F005468
|
[2] |
SPHERICAL BEARING
|
|
| 18. |
F003369
|
[4] |
CIRCLIP
|
|
| 19. |
F034661
|
[1] |
Ring
|
|
| 20. |
F034655
|
[1] |
Ring
|
|
| |
F054648
|
[1] |
Seal Kit
|
|
