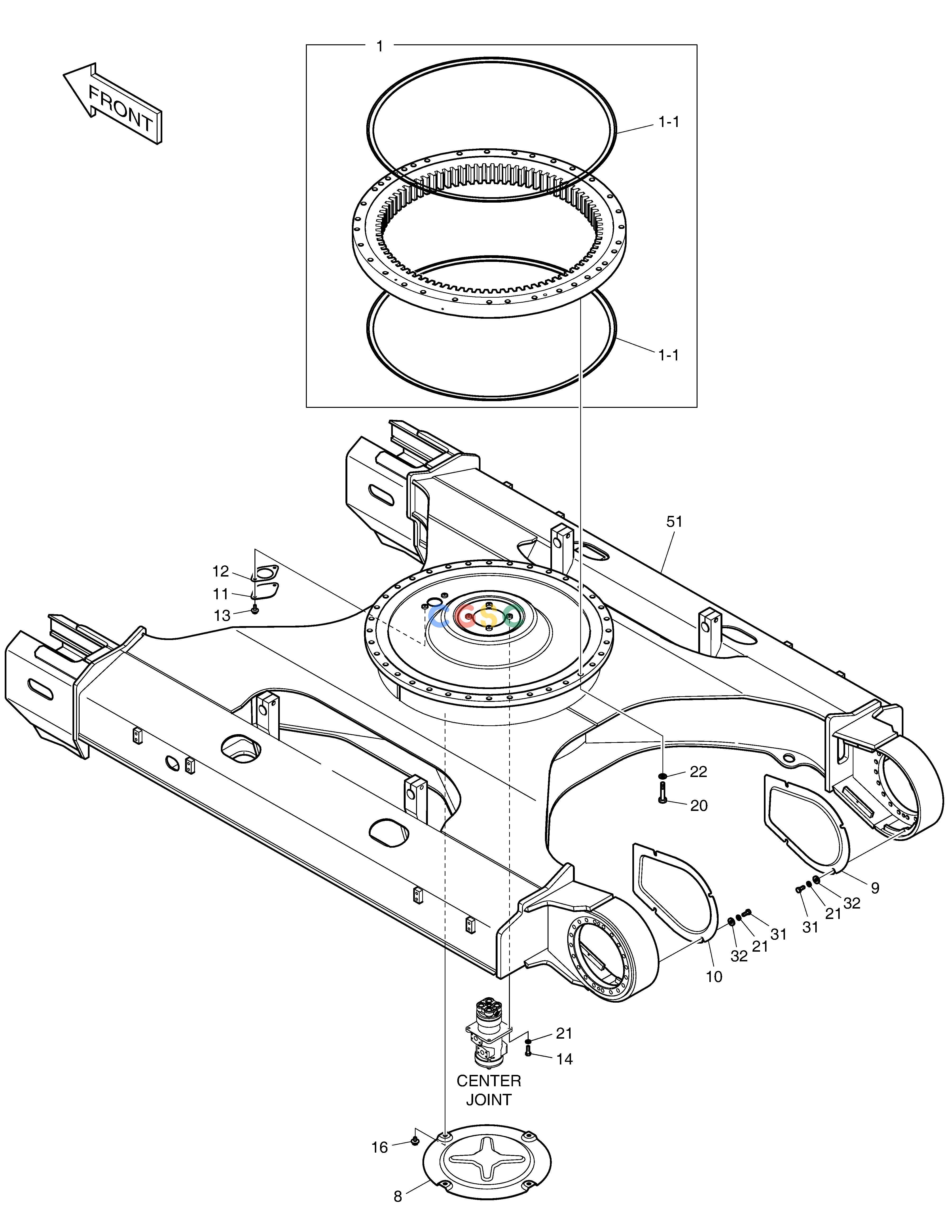

斗山零件查询TRACK FRAME DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1057005
|
[-] |
|
|
| 1. |
140109-00001B
|
[1] |
|
|
| 1-1. |
401107-00751
|
[2] |
. SEAL,SWING BEARING
|
|
| 10. |
621-02715A
|
[1] |
COVER;MOTOR(L.H)
|
|
| 11. |
621-02938B
|
[1] |
COVER
|
|
| 12. |
180-00463
|
[1] |
PACKING
|
|
| 13. |
DS0025016
|
[2] |
BOLT
|
|
| 14. |
S0515366
|
[4] |
BOLT
|
|
| 16. |
DS0025019
|
[4] |
BOLT
|
|
| 20. |
S0574966
|
[36] |
BOLT M24X3.0X80
|
|
| 21. |
S5102703
|
[12] |
WASHER
|
|
| 22. |
2114-1831A
|
[36] |
. WASHER
|
|
| 31. |
S0515266
|
[8] |
BOLT
|
|
| 32. |
120810-00100
|
[8] |
|
|
| 51. |
160617-00039E
|
[1] |
|
|
| 8. |
K1004271
|
[1] |
COVER;UNDER
|
|
| 9. |
621-02714A
|
[1] |
COVER;MOTOR(R.H)
|
|
