神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (01-023) - BREATHER & OIL FILLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
213 次

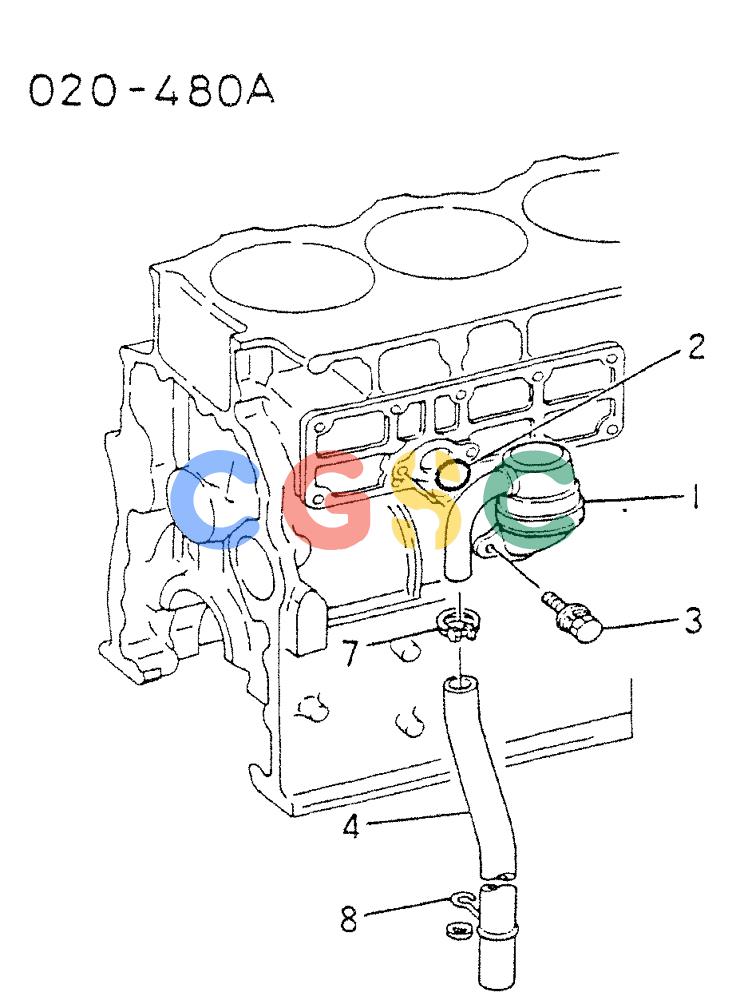

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS06 | [1] | BREATHER & OIL FILLER(M0) | |
| . . | 6D221CZ-KS09 | [1] | BREATHER & OIL FILLER(M0) | |
| . . | 6D221CZ-KS07 | [1] | BREATHER & OIL FILLER(M0) | |
| . . | 6D221CZ-KS04 | [1] | BREATHER & OIL FILLER(M0) | |
| . . | 6D221CZ-KS01 | [1] | BREATHER & OIL FILLER(M0) | |
| . . | 6D221CZ-KS0A | [1] | BREATHER & OIL FILLER(M4) | |
| . . | 6D221CZ-KS03 | [1] | BREATHER & OIL FILLER(M0) | |
| 1. | VAME054385 | [1] | BREATHER | KOB Superseded by part number: 132287A1 |
| 2. | VAMF520405 | [1] | O-RING | KOB45 |
| 3. | VAMF303361 | [2] | BOLT | KOBW/WSR 10X20 |
| . . | VAME011910 | [1] | PIPE | KOBHOSE, VINYL L=550 (FOR M0) |
| . . | VAME058950 | [1] | HOSE | KOBL=1100 (FOR M4) |
| 7. | VAMS666012 | [1] | HOSE CLAMP | KOB30 |
| 8. | VA3004211900 | [1] | STAY | KOBSTAY, PIPE Superseded by part number: 132291A1 |
| . . | VAMF450006 | [1] | NUT | KOBPLAIN 10 Superseded by part number: 133247A1 |
