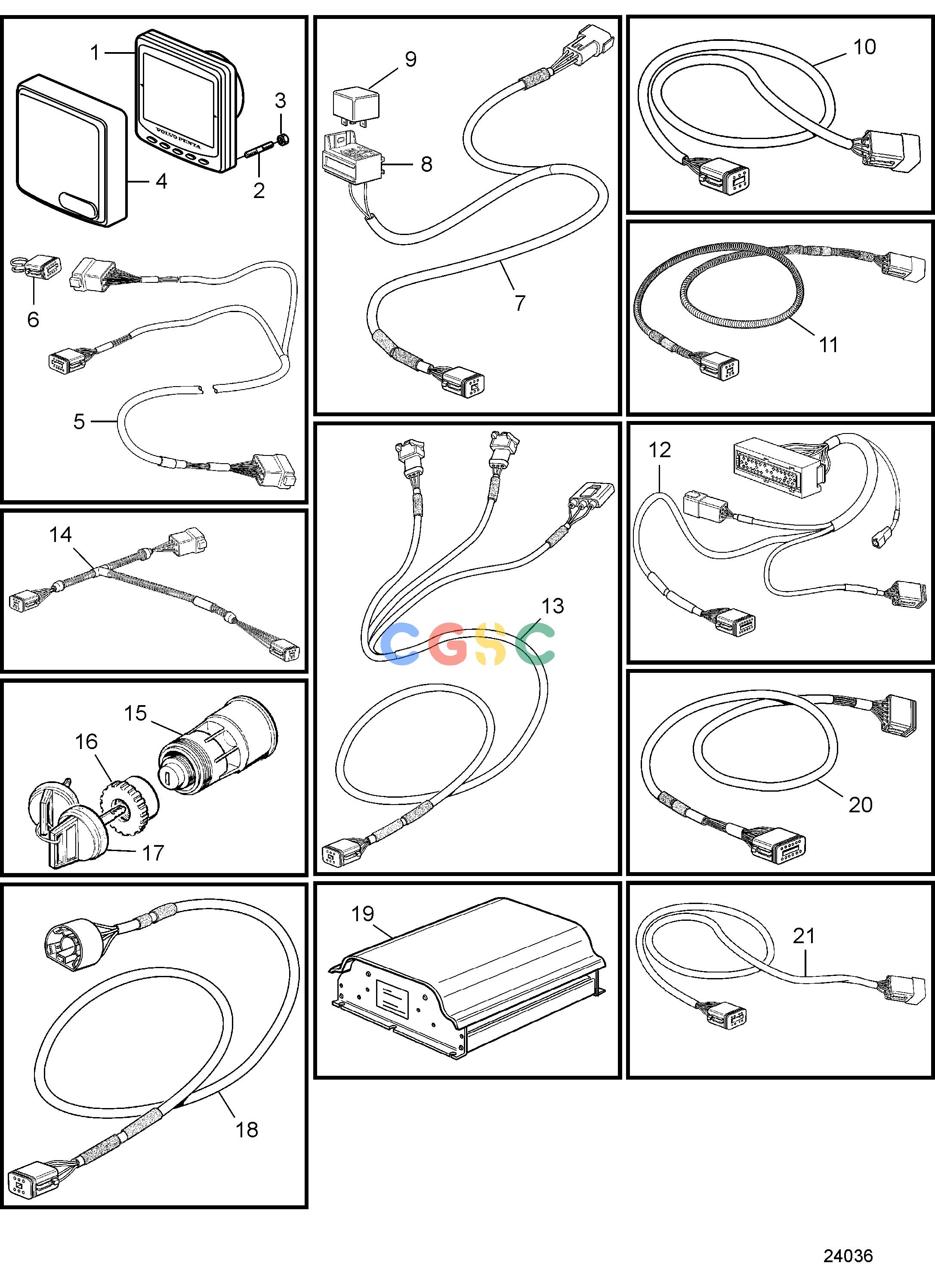

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemControl Unit and Cables, EVC-AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
808 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3807827
|
[1] |
Display
|
(3587933)
|
| 2. |
830928
|
[4] |
Stud
|
|
| 3. |
830930
|
[4] |
Wing nut
|
|
| 4. |
830929
|
[1] |
Cap
|
|
| 5. |
881785
|
[1] |
Cable kit
|
|
| 6. |
881829
|
[1] |
Resistor
|
|
| 7. |
881786
|
[1] |
Cable kit
|
|
| 8. |
977184
|
[1] |
Housing
|
|
| 9. |
3171420
|
[1] |
Relay
|
|
| 10. |
3889410
|
[1] |
Extension cable
|
L=1,5m, (874752)
|
| 11. |
3842733
|
[1] |
Extension cable
|
L=3.0m
|
| 11. |
3842734
|
[1] |
Extension cable
|
L=5.0m
|
| 11. |
3842735
|
[1] |
Extension cable
|
L=7,0m
|
| 11. |
3842736
|
[1] |
Extension cable
|
L=9.0m
|
| 11. |
3842737
|
[1] |
Extension cable
|
L=11m
|
| 11. |
874789
|
[1] |
Cable kit
|
PCU-HCU, 6 pole., L=5.0m
|
| 11. |
889550
|
[1] |
Cable
|
PCU-HCU, 6 pole., L=7,0m
|
| 11. |
889551
|
[1] |
Cable
|
PCU-HCU, 6 pole., L=9.0m
|
| 11. |
889552
|
[1] |
Cable
|
PCU-HCU, 6 pole., L=11m
|
| 11. |
888013
|
[1] |
Cable
|
PCU-HCU, 6 pole., L=13m
|
| 12. |
3808580
|
[1] |
Wiring harness
|
Engine-PCU cable., L=5.0m (874818)
|
| 13. |
874676
|
[1] |
Cable kit
|
EVC control lever cable, 6-pole., L=1,5m
|
| 14. |
3588972
|
[1] |
Cable kit
|
Y-connector bus cable, 6-pole., L=0,5m
|
| 15. |
3587070
|
[1] |
Starter switch
|
Kit with 2 key switch with identical key.
|
| 15. |
3587071
|
[1] |
Starter switch
|
|
| 16. |
859955
|
[1] |
Plastic nut
|
|
| 17. |
859953
|
[1] |
Key
|
State key code when ordering
|
| 18. |
881849
|
[1] |
Wiring harness, starter switch
|
L=1,0m
|
| 19. |
888006
|
[1] |
Control unit, not programmed
|
HCU. Software ordered separately or downloaded with Vodia.
|
| 19. |
3586261
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 19. |
3586259
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 19. |
3586778
|
[1] |
Control unit, not programmed
|
PCU. Software ordered separately or downloaded with Vodia.
|
| 19. |
3586267
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 19. |
3586266
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 20. |
874785
|
[1] |
Cable kit
|
Syncronicing cable for twin installation. 12 pole.
|
| 21. |
874414
|
[1] |
Extension cable
|
Extension cable, 8-pole HCU-EVC control panel.
|
