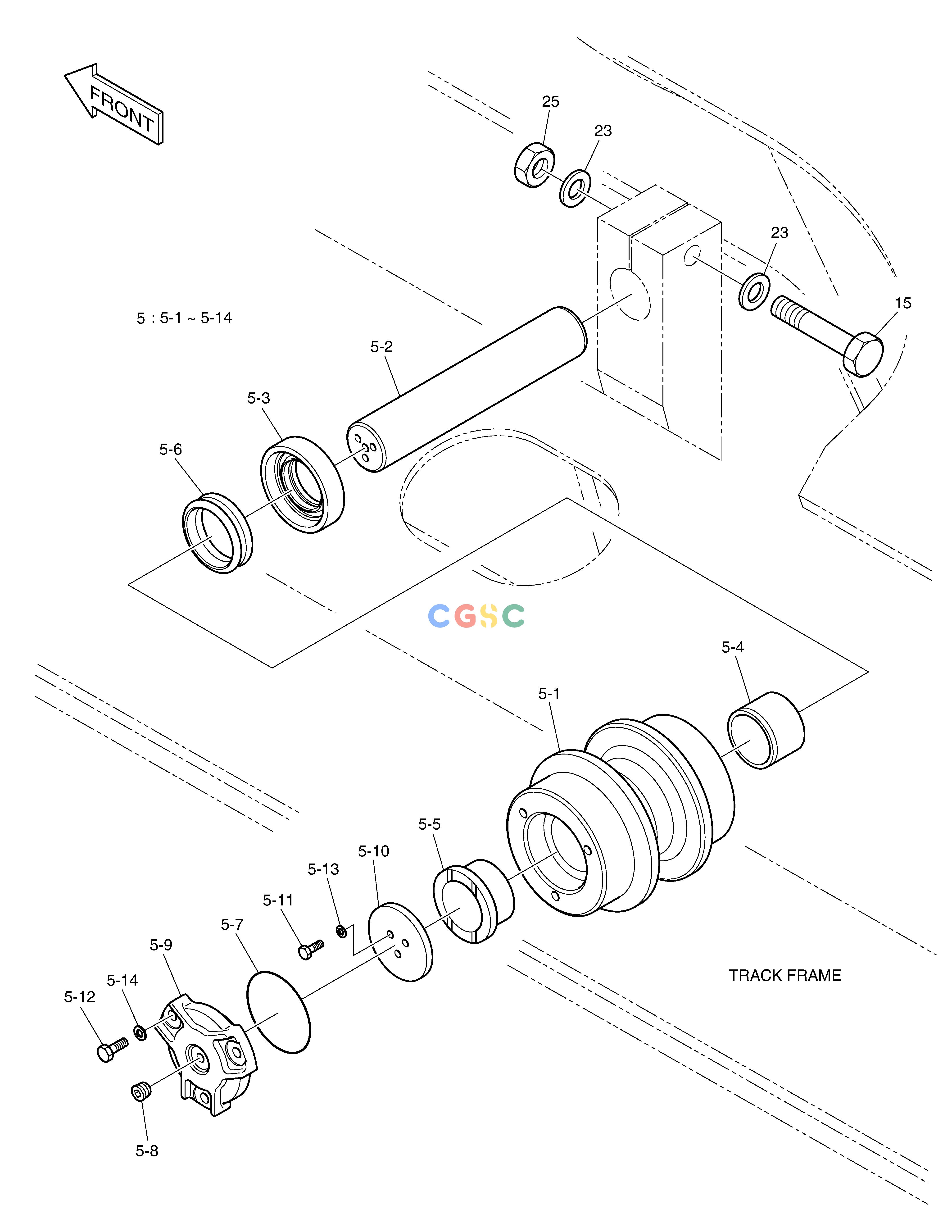

斗山零件查询UPPER ROLLER DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
837 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1057005
|
[-] |
|
|
| 15. |
S0571166
|
[4] |
BOLT
|
|
| 23. |
2114-9012A
|
[8] |
WASHER
|
|
| 25. |
S4013133
|
[4] |
NUT
|
|
| 5. |
200105-00003B
|
[4] |
|
|
| 5-1. |
160601-00012A
|
[1] |
|
|
| 5-10. |
120810-00036
|
[1] |
|
|
| 5-11. |
S0508861
|
[3] |
BOLT M8X1.25X20
|
|
| 5-12. |
S0515361
|
[3] |
BOLT M12X1.75X35
|
|
| 5-13. |
S5102503
|
[3] |
. WASHER
|
|
| 5-14. |
S5102703
|
[3] |
WASHER
|
|
| 5-2. |
130712-00058B
|
[1] |
|
|
| 5-3. |
401003-00036A
|
[1] |
|
|
| 5-4. |
130702-00065
|
[1] |
|
|
| 5-5. |
130702-00066
|
[1] |
|
|
| 5-6. |
2180-9005B
|
[1] |
SEAL;FLOATING
|
|
| 5-7. |
2180-6005
|
[1] |
O-RING
|
|
| 5-8. |
2181-6005
|
[1] |
PLUG
|
|
| 5-9. |
110508-00359B
|
[1] |
|
|
